2-11
EMU01295

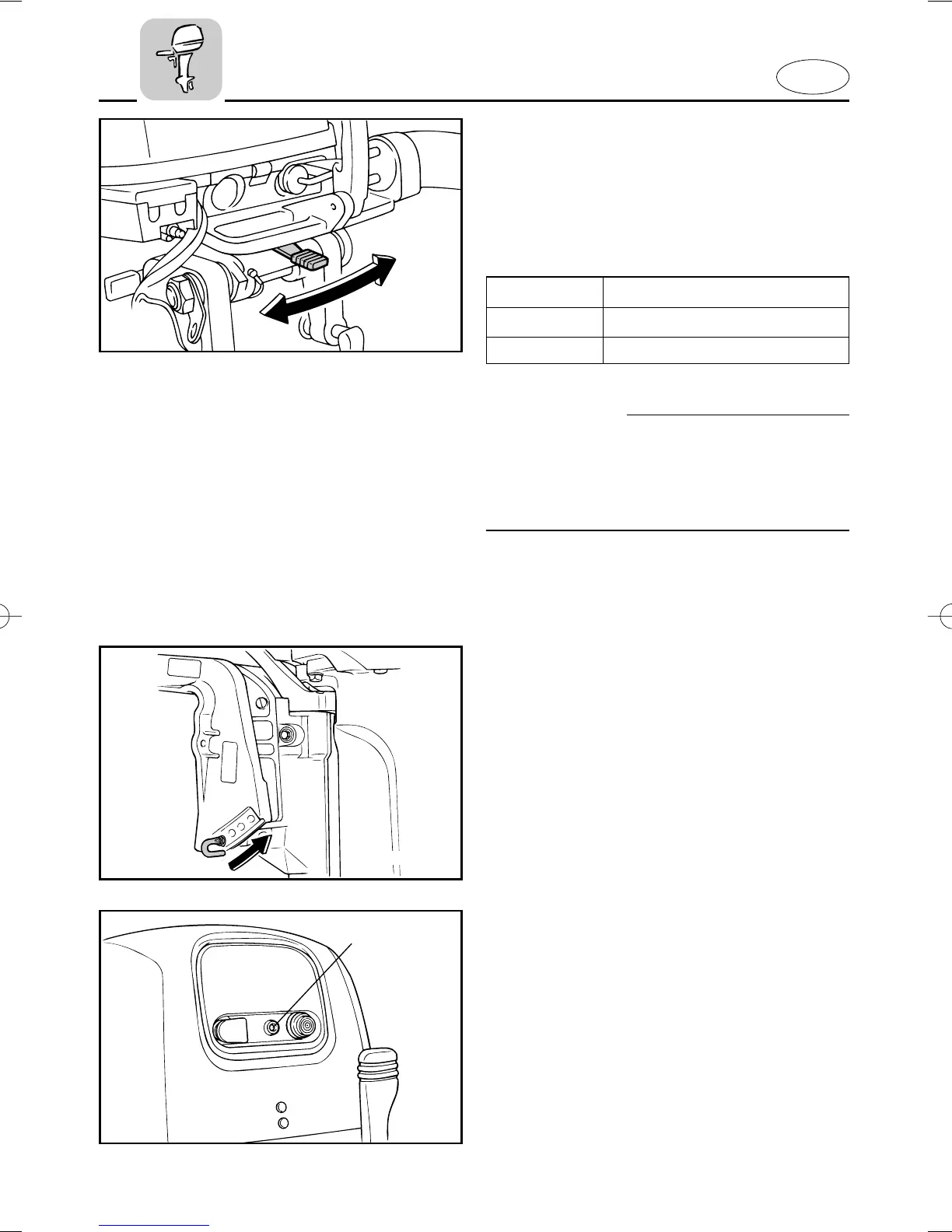

STEERING FRICTION ADJUSTING
LEVER
A friction device provides resistance to
steering movement. This is adjustable
according to operator preference.
w
Do not overtighten the friction adjusting
lever. If there is too much resistance, it
may be difficult to steer, which could
result in an accident.
E
001776
223013*
q
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
EMU01128
WARNING INDICATOR(S)
If the engine develops a condition moni-
tored by the warning system, an indicator
will come on.
Refer to the “WARNING SYSTEM” sec-
tion for details.
1 Warning indicator(s)
Resistance Lever
Increase Turn to port
Decrease Turn to starboard
66M-9-17-2 2/27/03 10:10 AM Page 12
