2-12
E
402013
q
403**2
q
EMD44110

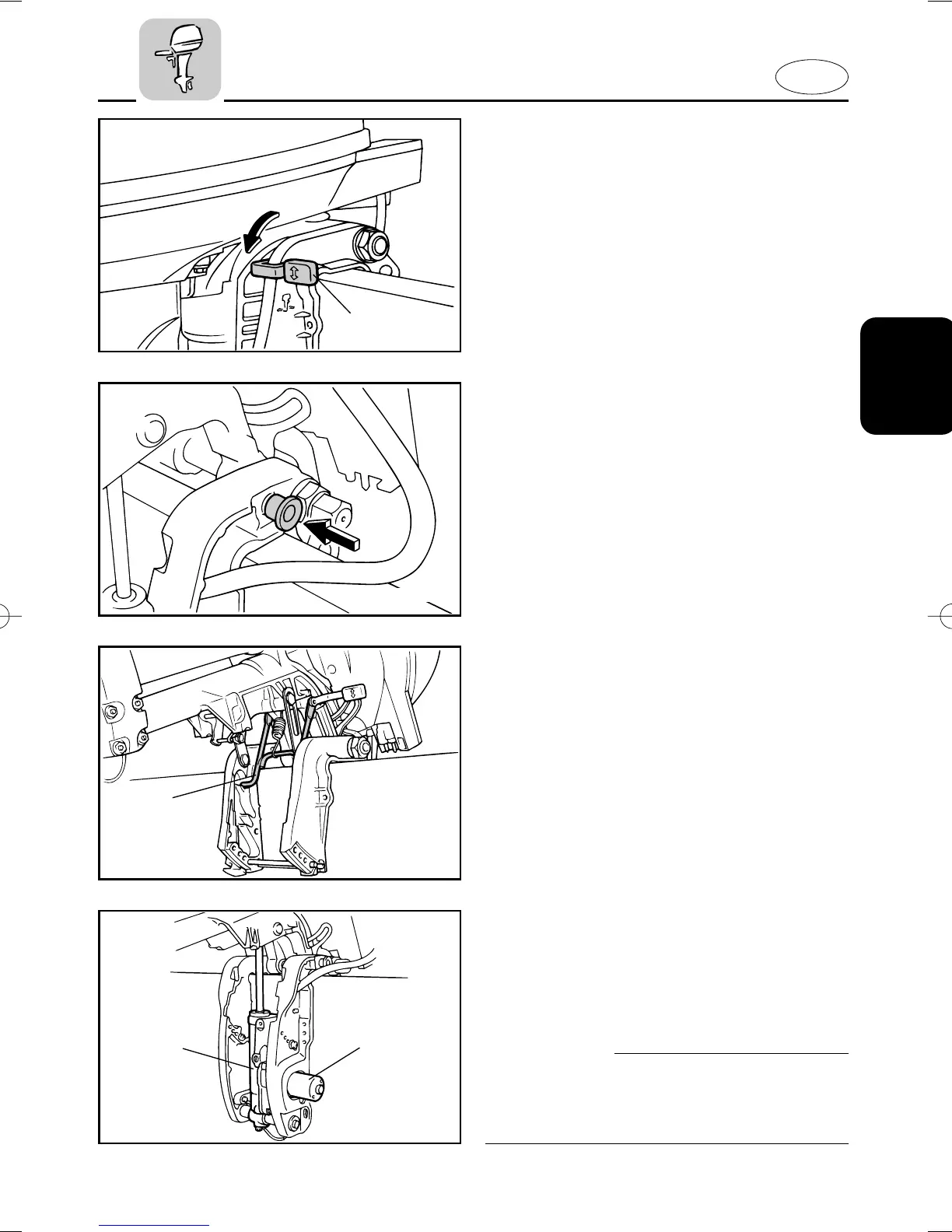

TILT LOCK MECHANISM (for Manual
tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position. To release it, place the tilt-lock
lever in the Tilt position.
1 Tilt-lock lever
EMD48010*
TILT SUPPORT BAR
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
000603
EMU00155
TILT SUPPORT KNOB
To keep the outboard motor in the tilted-
up position, push the tilt support knob
under the swivel bracket.
q
w
000615
EMU01348
POWER TILT UNIT
This unit tilts the motor up and down and
is controlled via the power tilt switch.
1 Power tilt unit
2 Power tilt motor
cC
Do not step on or exert pressure on the
power tilt motor. The power tilt unit
could be damaged as a result.
66M-9-17-2 2/27/03 10:10 AM Page 13
