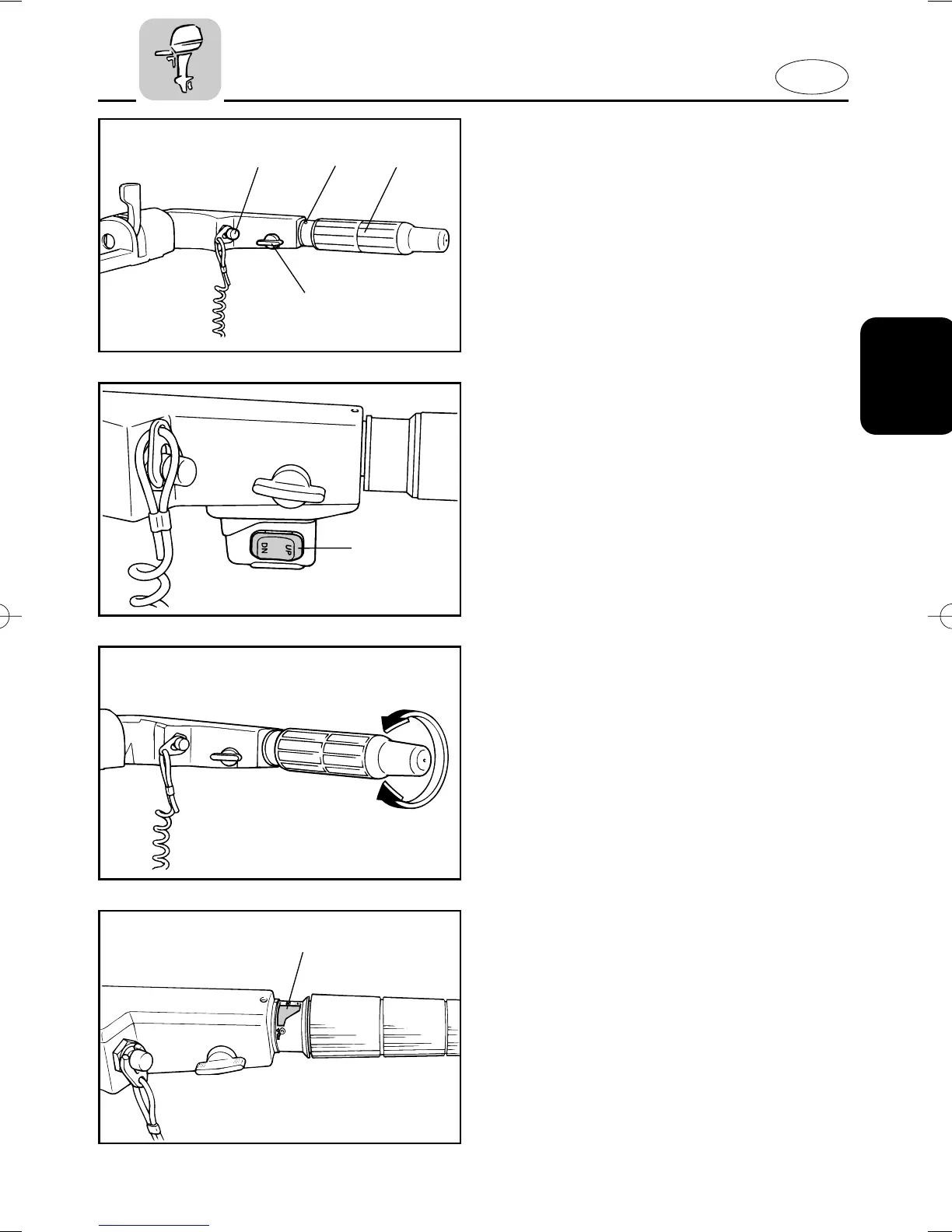

TILLER HANDLE (for tiller control
models)
Moving the tiller handle from side to side
changes the steering direction. In addi-
tion, this handle has the following func-
tions.
1 Throttle control grip
2 Throttle indicator
3 Throttle friction adjusting knob/screw
4 Engine stop button / Engine stop lanyard
switch
5 Power tilt switch (if equipped)
000613
t
503034
508013
q
EMC40210
Throttle indicator
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicator
EMC40011
Throttle control grip
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
