2-10
E
EMU01316

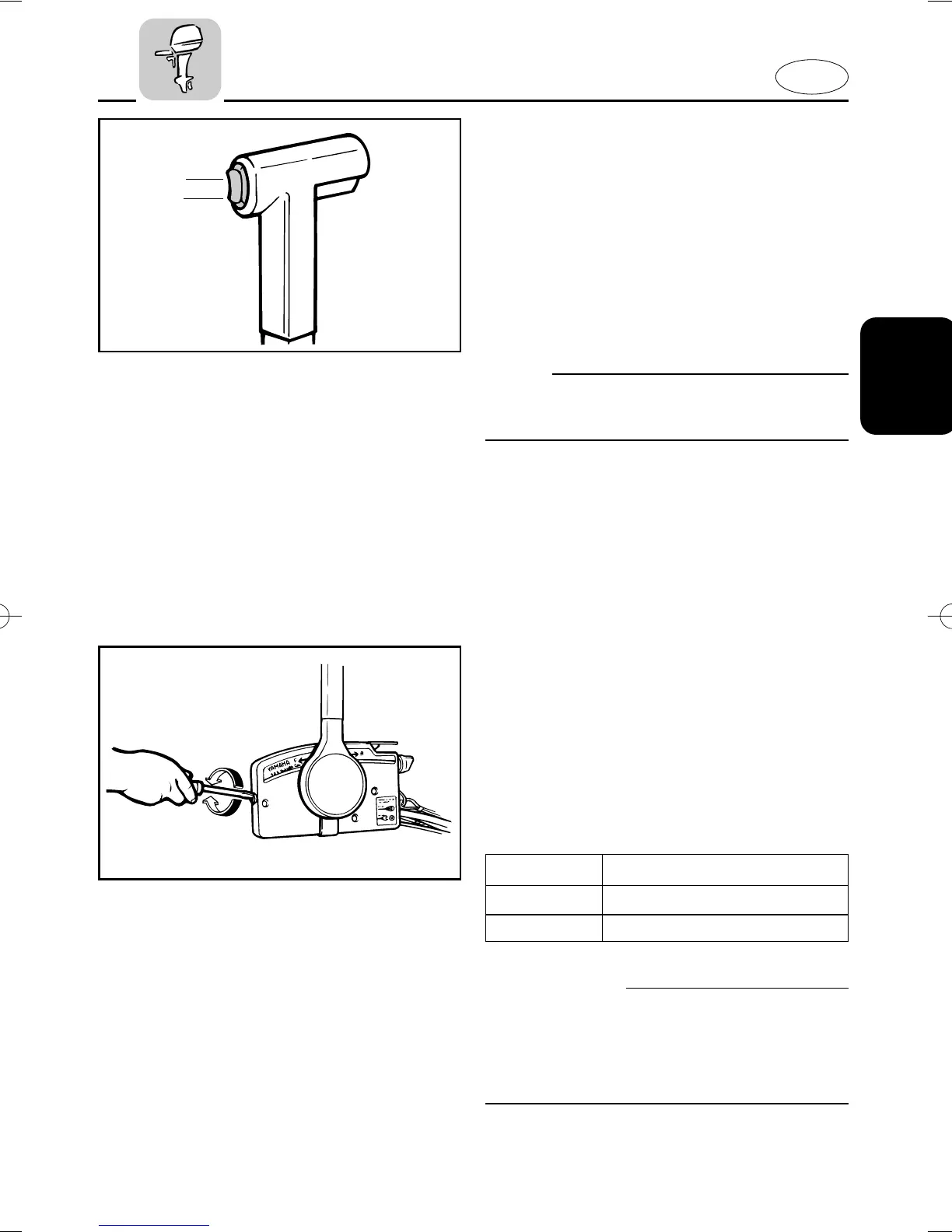

Power Tilt Switch
The power tilt adjusts the motor angle in
relation to the transom. The power tilt
switch is located on the remote control
lever grip. Pushing the switch “UP” tilts
the motor up. Pressing the switch “DN”
tilts the motor down. When the switch
button is released, the motor will stop in
its current position.
NOTE:
Refer to the section “TILTING UP/DOWN”
for instructions on usage.
EMU01155
Throttle Friction Adjusting Screw
A friction device in the remote control box
provides adjustable resistance to move-
ment of the remote control lever, and can
be set according to operator preference.
An adjusting screw is located on the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw. If there is too much resistance, it
may be difficult to move the lever, which
could result in an accident.
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
UP
DN
701034
UP
DN
701035
66M-9-17-2 2/27/03 10:10 AM Page 11
