Yamaha F300B - Fuse Holder

5-3
ELEC
Electrical system

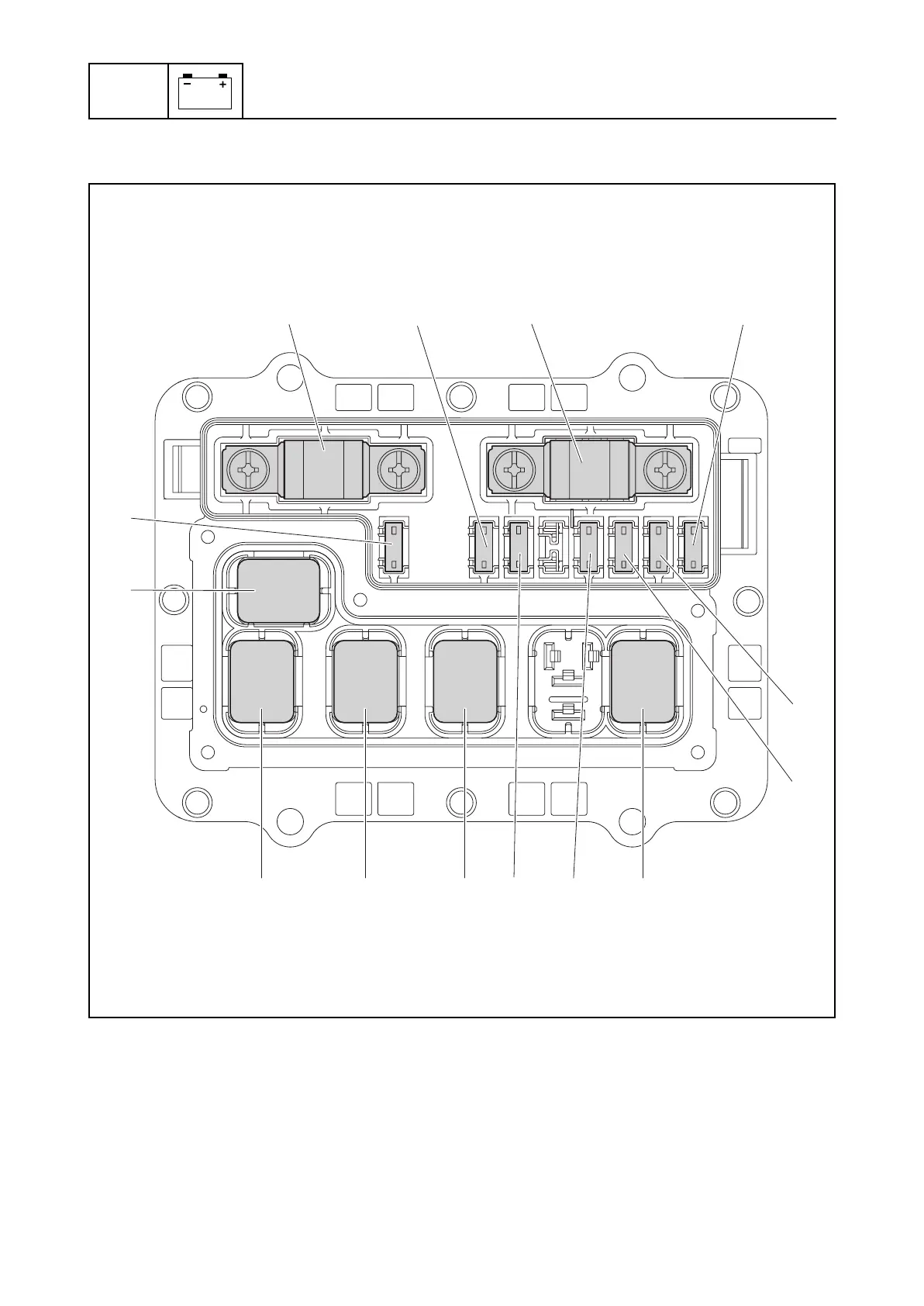

Fuse holder
a Fuse (100 A) (engine battery)
b Fuse (20 A) (engine start switch, PTT
switch, and Digital Electronic Control
ECM)
c Fuse (100 A) (house [accessory] battery)
d Fuse (15 A) (high-pressure fuel pump)
e Fuse (10 A) (ETV)
f Fuse (30 A) (ignition coil, VCT, fuel injec-
tor, and engine ECM)
g Main relay
h Fuse (30 A) (starter relay)
i Fuse (15 A) (shift actuator)
j Shift actuator relay
k ETV motor relay
l Fuel pump relay (high-pressure)
a
b
c
d
e
f
g
h
i
jk
l
m
n
