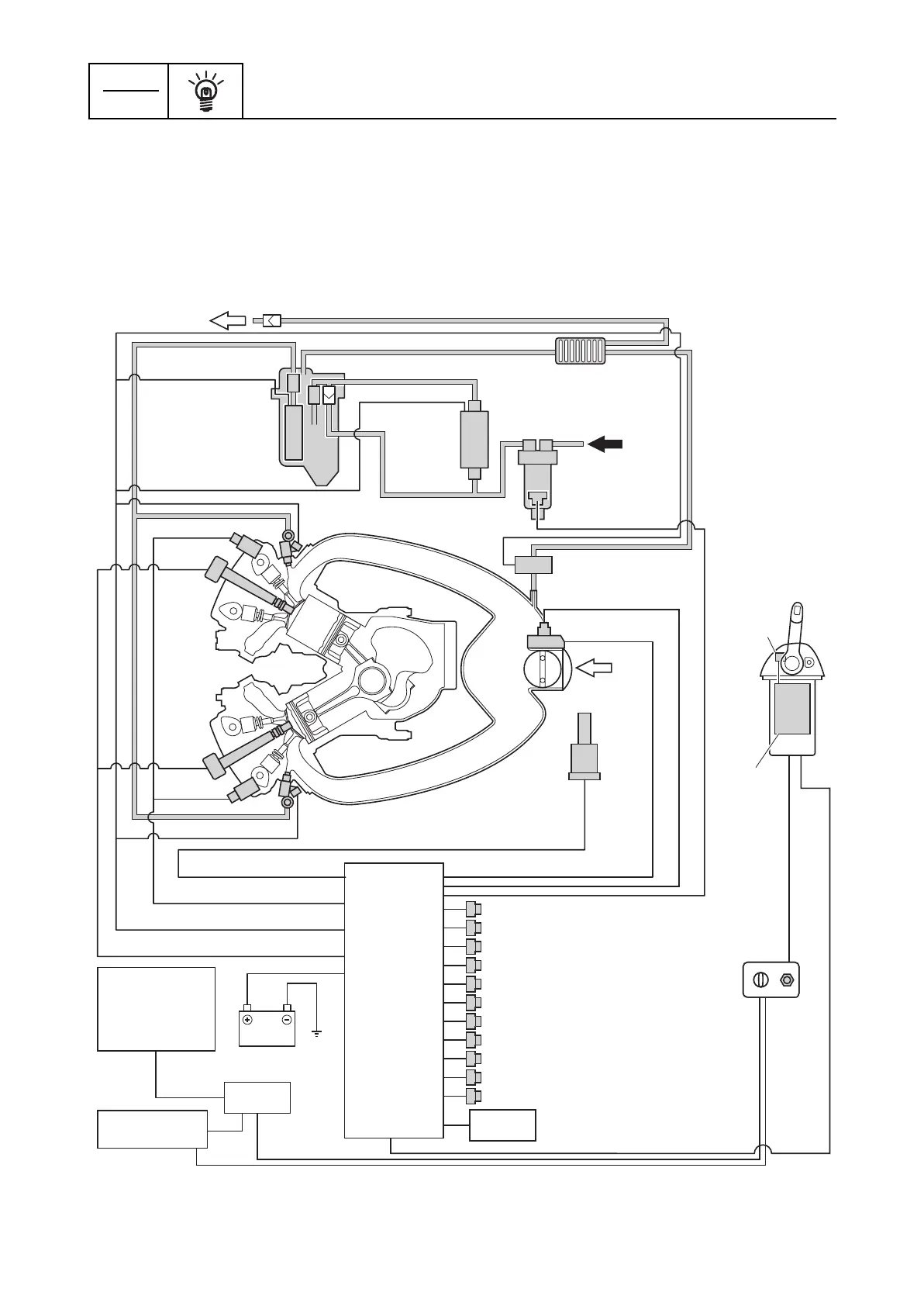

Technical features and description
Electronic control system
This model uses an electronic fuel injection control, ignition timing control, knock control, engine
speed control, Digital Electronic Control, electronic shift control, ETV control, and fail-safe control.
The engine ECM performs these controls based on data received from each sensor and switch.
The engine ECM is equipped with a self-diagnosis function. This function can be used to check trou-
ble codes on the YDIS.
It is also equipped with Y-COP as an anti-theft measure.
LPS
OCV
TPS
ETV
OCV
Y-COP
YDIS
SPS
Check valve
Air
Pressure regulator
Filter
Check valve
High-pressure
fuel pump
Vapor separator
Fuel injector
Ignition
coil
Canister
Low-pressure fuel pump
Water separator
Fuel
Water
detection
switch
Vapor shut-off
valve
Air
Shift actuator
Ignition
coil
Fuel injector
Shift control
Valve control
Fuel control
Ignition control
6Y9
Multifunction
Color Gauge
Battery
Hub
Engine
shut-off
switch
Engine
ECM
Engine
start switch
Cam position sensor
Pulser coil
Air pressure sensor
Oil pressure sensor
Air temperature sensor
Knock sensor
Engine temperature sensor
Thermoswitch
Water pressure sensor (optional)
Speed sensor (optional)
Digital
Electronic
Control
ECM
To Next Page
