8-18
Propeller shaft housing (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

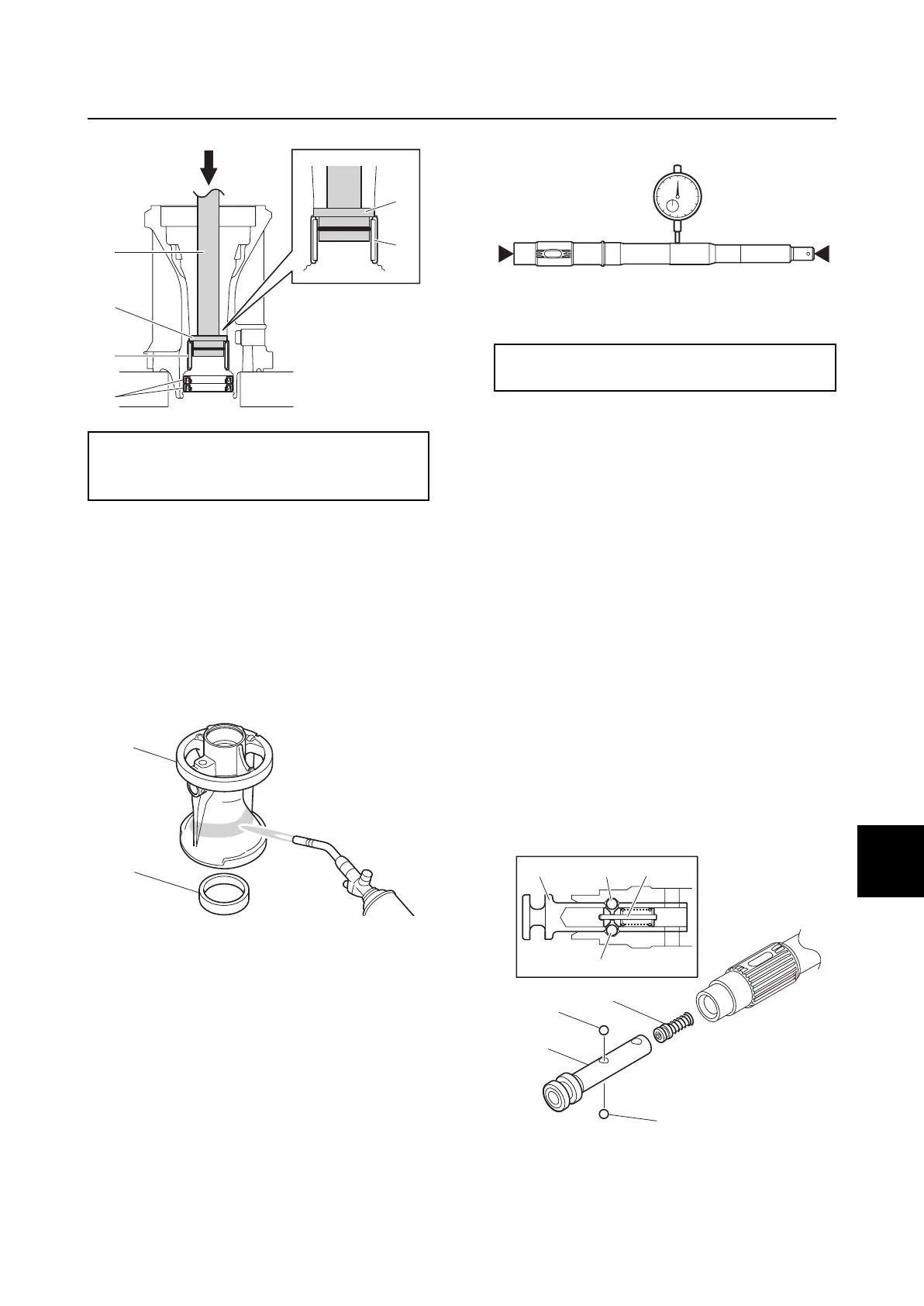

3. Heat the installation area of the taper
roller bearing outer race in the propeller
shaft housing f using a gas torch, and
then remove the taper roller bearing
outer race a. NOTICE: When heating
the propeller shaft housing, heat the
entire installation area evenly.
Otherwise, the propeller shaft housing
could be damaged.
Checking the propeller shaft
1. Check the propeller shaft. Replace if
damaged or worn.
2. Measure the propeller shaft runout.
Checking the dog clutch
1. Check the dog clutch, shift plunger, cross
pin, spring, balls, and slider. Replace if
cracked or worn.
Checking the propeller shaft housing
1. Check the water pipe. Replace if cor-
roded, cracked, or deformed.
2. Check the propeller shaft housing.
Replace if cracked or damaged.
Checking the reverse gear
1. Check the teeth and dogs of the reverse
gear. Replace if cracked or worn.
Assembling the propeller shaft
assembly
1. Install the shift plunger a, balls b, and
slider c.
Driver rod L3 d: 90890-06652
Needle bearing attachment e:
90890-06611
b
e
d
c
e
c
f
a
Propeller shaft runout:
0.02 mm (0.0008 in)
a
bc
b
b
b
c
a
