Yamaha F300B - Installing the Power Unit

7-10
Power unit assembly
0
1
2
3
4
5
6
7
8
9
10
A

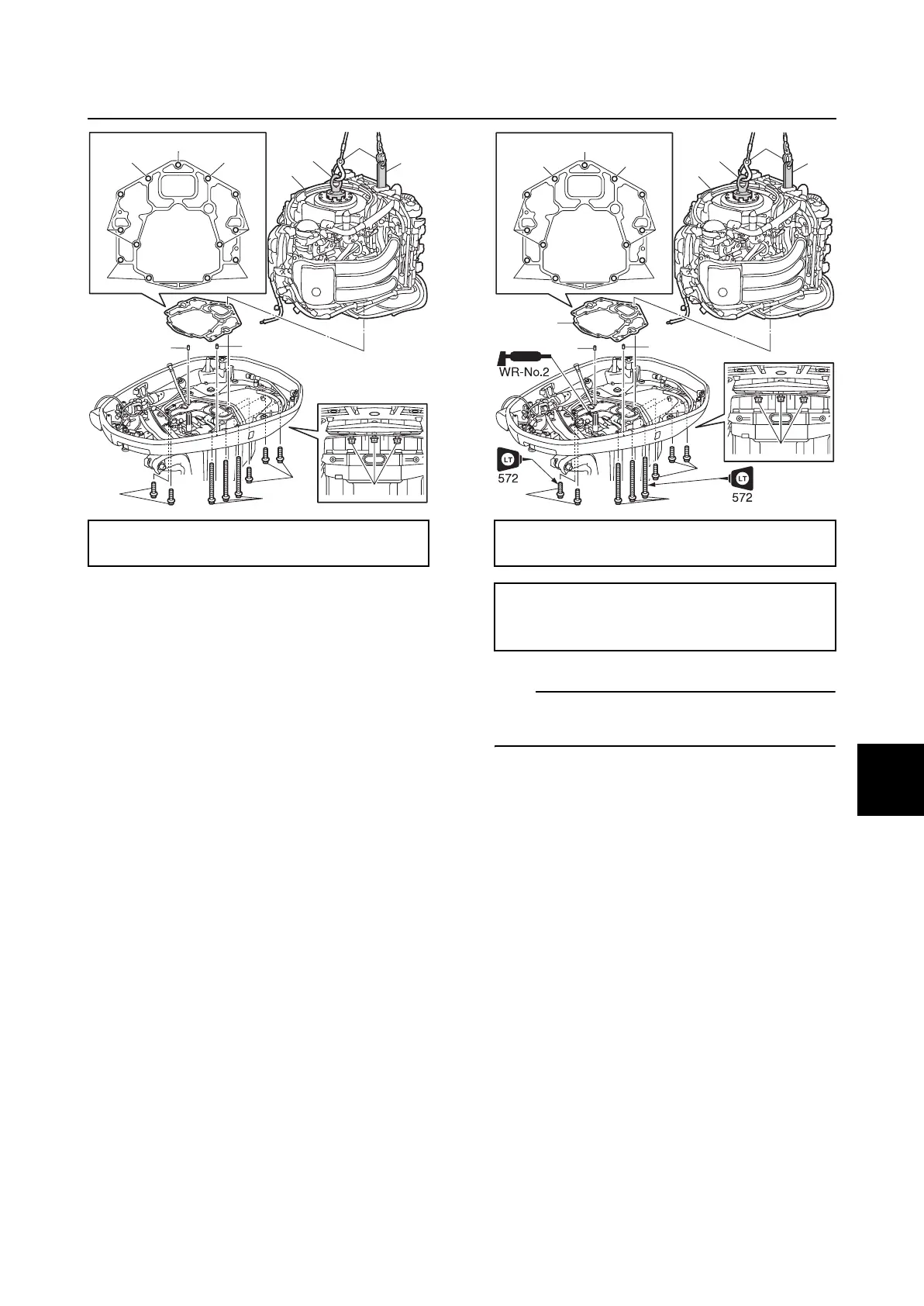

Installing the power unit
1. Clean the power unit mating surface, and
then install the dowels a and a new gas-
ket b. NOTICE: Do not reuse a gas-
ket, always replace it with a new one.
2. Install the special service tools c and d.
3. Hook a lifting harness e onto the special
service tools c and d, and then
suspend the power unit f.
4. Install the power unit f, and then tighten
the power unit mounting bolts g and h
to the specified torque in 2 stages.
TIP:
Tighten the power unit mounting bolts to the
same torque in both stages.
5. Install the grommet i, idle silencer j,
and rubber seal k.
6. Install the aprons l and m, and then
tighten the apron screws n to the
specified torque.
Engine lifting eye w: 90890-06820
Balance hanger x: 90890-06822
w
x
y
z
A
A
A
B
B
B
B
C
C
B
B
B
B
Engine lifting eye c: 90890-06820
Balance hanger d: 90890-06822
Power unit mounting bolts g and h:
1st: 42 N·m (4.2 kgf·m, 31.0 ft·lb)
2nd: 42 N·m (4.2 kgf·m, 31.0 ft·lb)
c
d
e
f
h
h
h
g
g
g
g
g
g
g
g
a
a
b
