8-24
Drive shaft and lower case (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

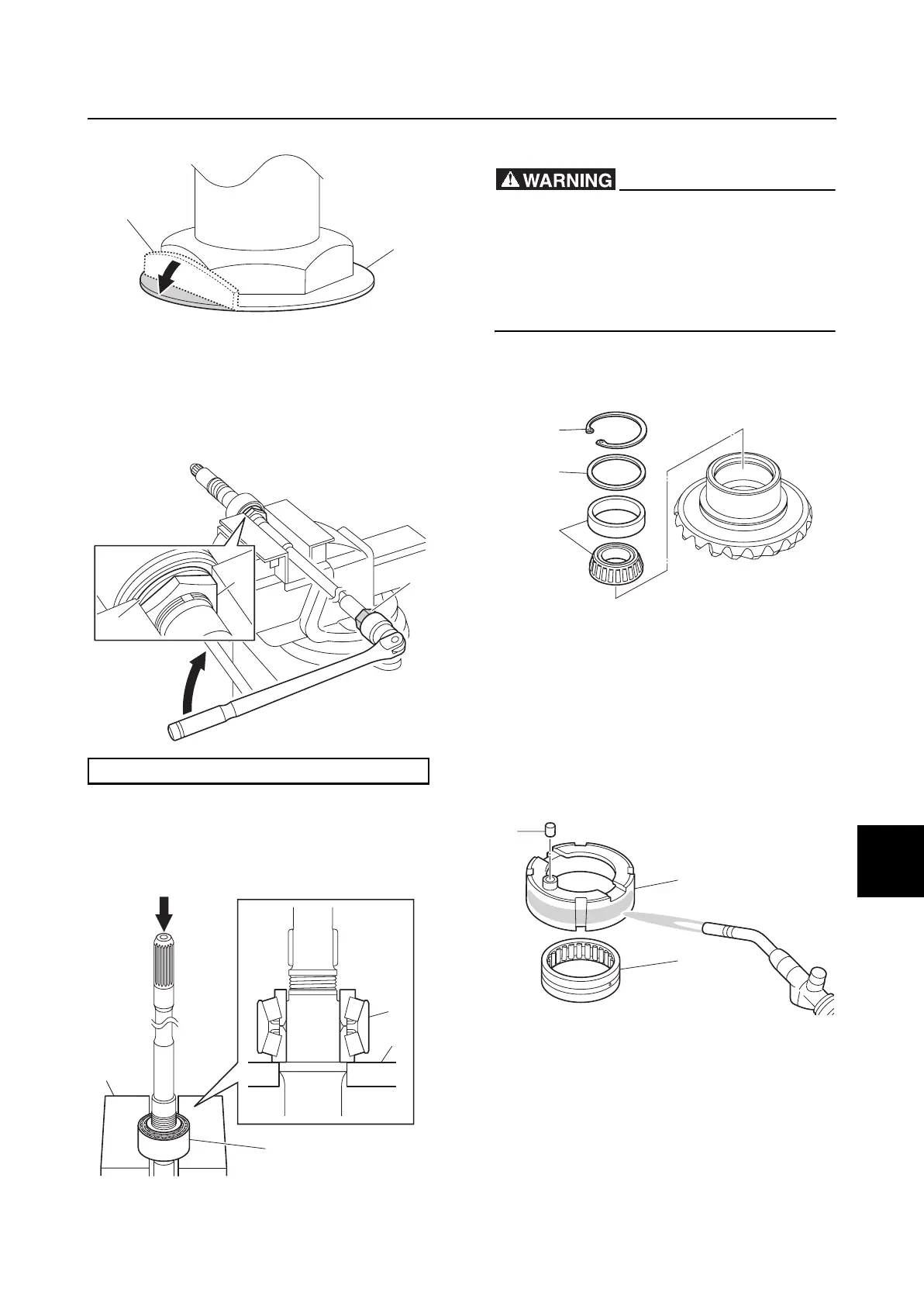

2. Secure the drive shaft nut b on the drive
shaft.
3. Loosen the drive shaft nut b, and then
remove the claw washer a.
4. Remove the taper roller bearing d.
NOTICE: Make sure that the inner
race of the taper roller bearing d is
placed properly on the blocks e.
Disassembling the forward gear
• Use heat-resistant gloves. Otherwise,
burns could result.
• To prevent fires, remove any flammable
substances, such as gasoline and oil,
around the working area.
• Keep good ventilation while working.
1. Remove the circlip a, and then remove
the washer b and taper roller bearing c.
2. Remove the dowel d.
3. Heat the installation area of the roller
bearing in the adapter e using a gas
torch, and then remove the roller bearing
f. NOTICE: When heating the
adapter, heat the entire installation
area evenly. Otherwise, the adapter
could be damaged.
Driveshaft holder 6 c: 90890-06520
a
a
a
bc
d
e
e
d
a
b
c
d
e
f
