– 15 –
BRKT
E

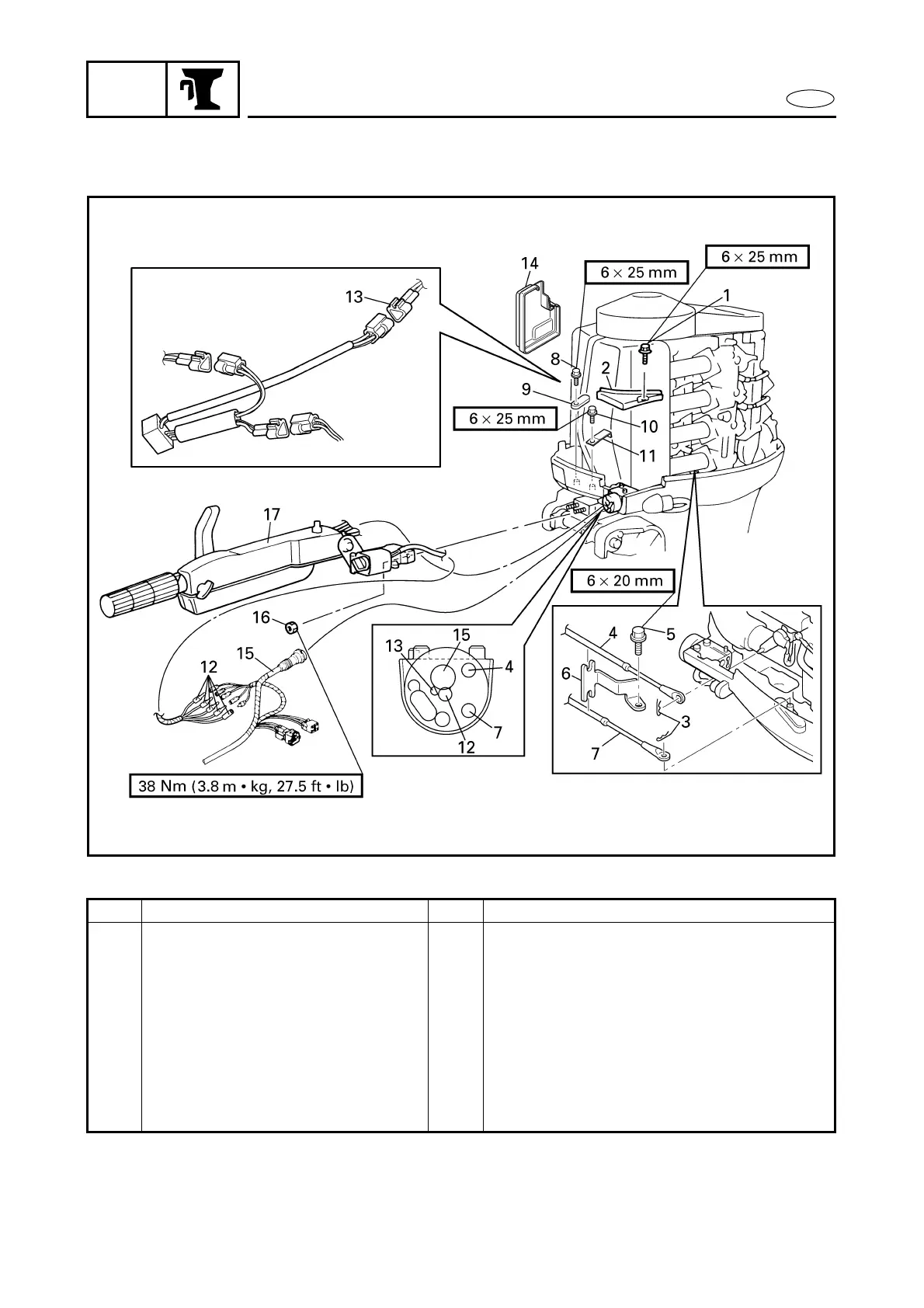

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
10 Bolt 1
11 Clamp 1
12 Main switch leads 5
13 Trailer/PTT switch coupler 1
14 Junction box cover 1
15 Extension, wire harness 1
16 Nut 2
17 Steering handle assembly 1
Reverse the removal steps for installation.
STEERING HANDLE (OPTION)
