Yamaha F80A - Electrical System Details; Ignition System Wiring and Components

– 24 –
–+
ELEC
E

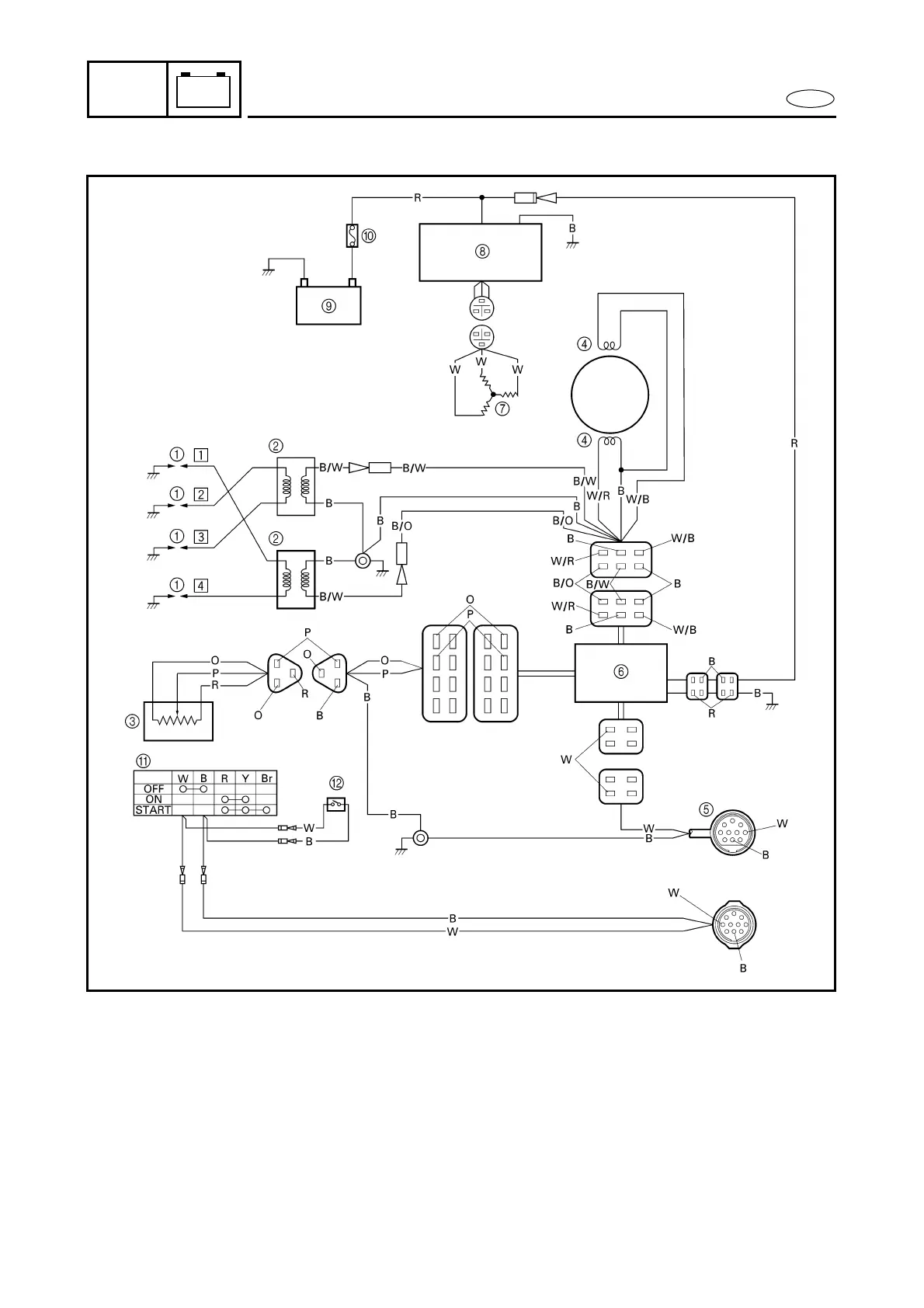

IGNITION SYSTEM
IGNITION SYSTEM
1 Spark plugs
2 Ignition coils
3 Throttle position sensor
(TPS)
4 Pick-up coils
5 10P coupler
6 CDI unit
7 Lighting coil
8 Rectifier/regulator
9 Battery
0 Fuse (30A)
A Main switch (on Tiller handle)
B Engine stop switch
(on Tiller handle)
B : Black
Br : Brown
O : Orange
R : Red
W : White
Y : Yellow
B/O : Black/Orange
B/W : Black/White
W/B : White/Black
W/R : White/Red
