Yamaha F80A - Bracket Unit Components; Steering Handle (Optional) Assembly

– 13 –
BRKT
E
STEERING HANDLE (OPTION)
STEERING HANDLE (OPTION)

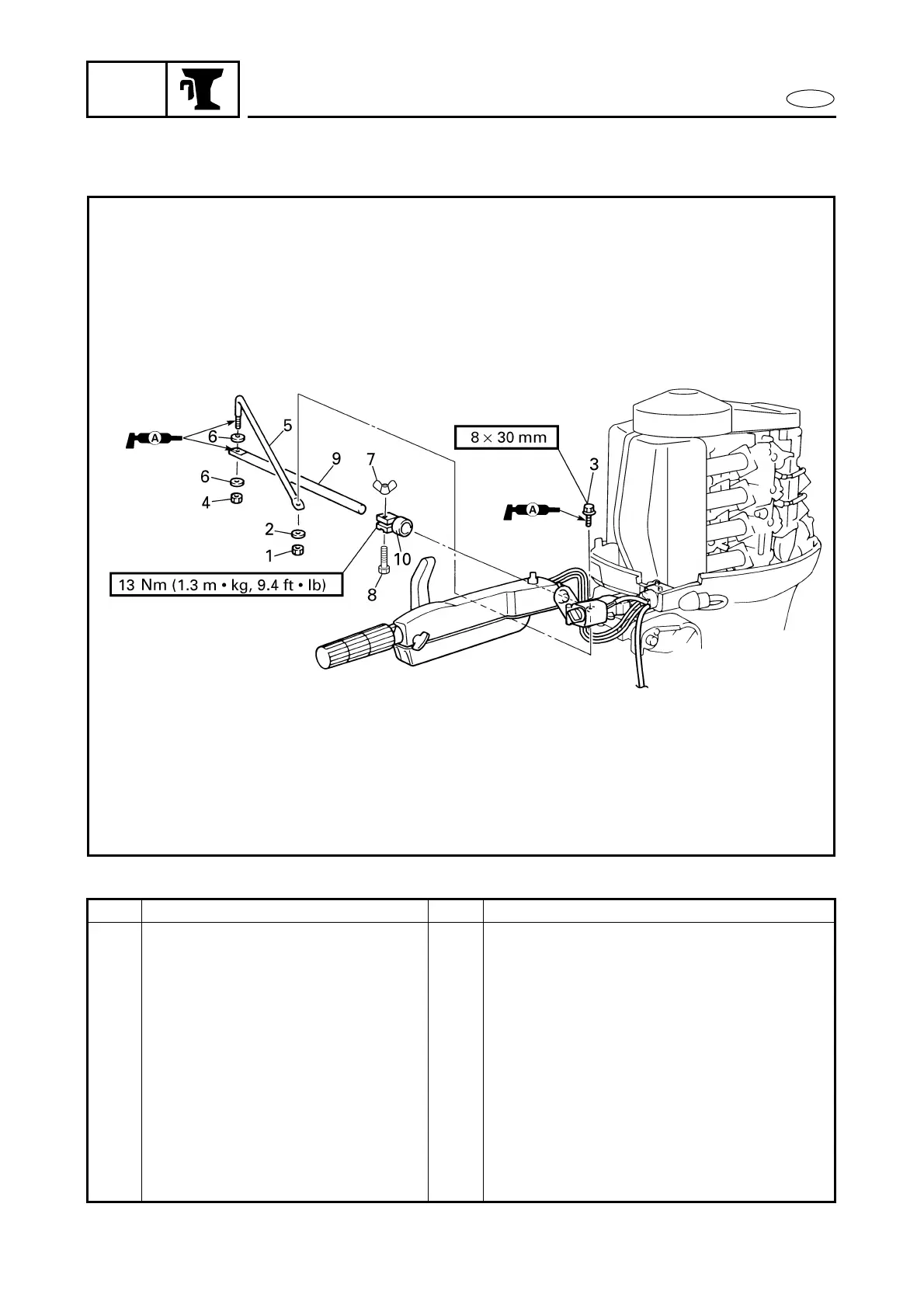

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STEERING FRICTION REMOVAL Follow the left “Step” for removal.
1 Nut 1
2 Washer 1
3 Bolt 1
4 Nut 1
5 Link rod 1
6 Washer 2
7 Wing nut 1
8 Bolt 1
9 Friction rod 1
10 Friction piece 1
Reverse the removal steps for installation.
