Yamaha F80A - Steering Handle Disassembly

– 16 –
BRKT
E
STEERING HANDLE (OPTION)

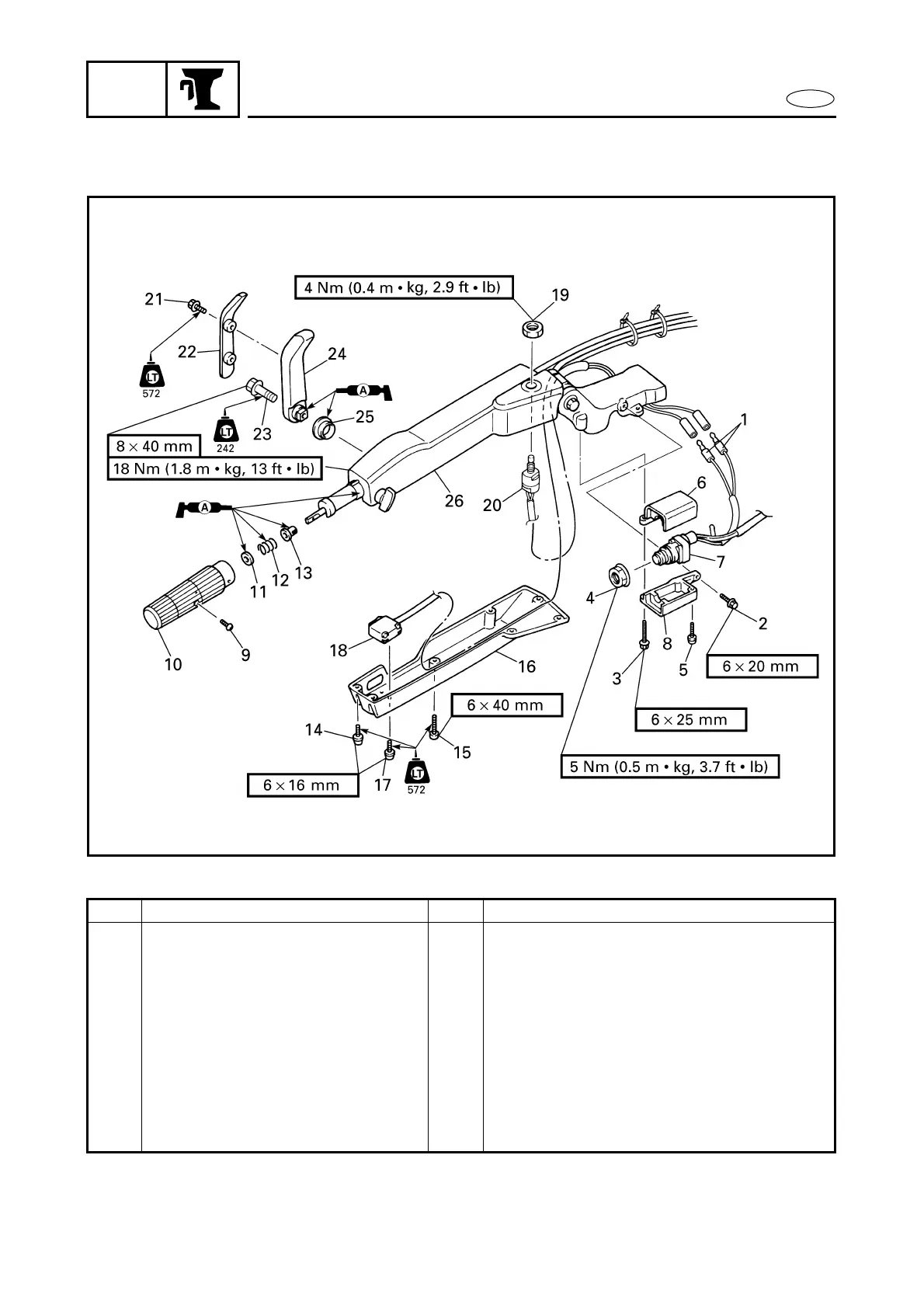

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STEERING HANDLE
DISASSEMBLY
Follow the left “Step” for disassembly.
Steering handle assembly
1 Engine stop switch leads 2
2 Bolt 1
3 Bolt 1
4 Nut 1
5 Screw 1
6 Cover 1
7 Main switch assembly 1
