Yamaha F80A - Stator Coil Assembly; Exploded Diagram; Removal and Installation Chart

5-9
POWR
E
STATOR COIL ASSEMBLY
STATOR COIL ASSEMBLY

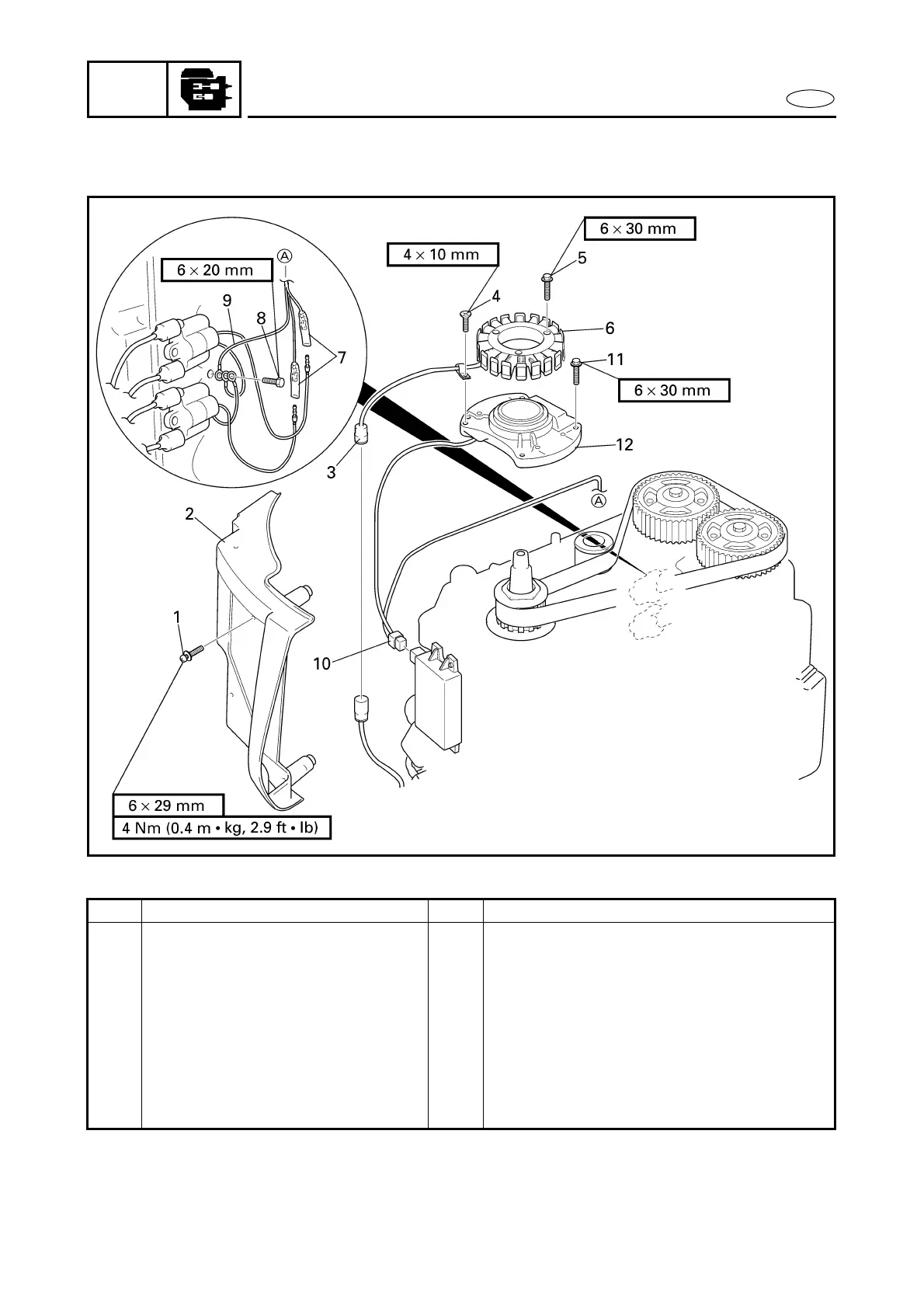

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STATOR COIL ASSEMBLY
REMOVAL
Follow the left “Step” for removal.
Flywheel magneto Refer to “FLYWHEEL MAGNETO”.
1 Screw 3
2 CDI unit cover 1
3 Lighting coil coupler 1
4 Screw 1
5 Bolt 3
6 Stator coil assembly 1
