Yamaha FZ1-S 2007 User Manual

ENGINE
3-4
EAS20470
ENGINE
EAS20490
ADJUSTING THE VALVE CLEARANCE
The following procedure applies to all of the
valves.
NOTE:
• Valve clearance adjustment should be made
on a cold engine, at room temperature.
• When the valve clearance is to be measured
or adjusted, the piston must be at top dead
center (TDC) on the compression stroke.
1. Remove:
• Rider and passenger seat
Refer to "GENERAL CHASSIS" on page 4-
1.
• Fuel tank
Refer to "FUEL TANK" on page 7-1.
• Air filter case
Refer to "GENERAL CHASSIS" on page 4-
1.
• Throttle body assembly
Refer to "THROTTLE BODIES" on page 7-
4.
• Air cut-off valve
Refer to "AIR INDUCTION SYSTEM" on
page 7-12.
•Radiator
• Radiator fan motor
Refer to "RADIATOR" on page 6-1.
2. Remove:
• Ignition coils
• Spark plugs
• Cylinder head cover
• Cylinder head cover gasket
Refer to "CAMSHAFTS" on page 5-9.

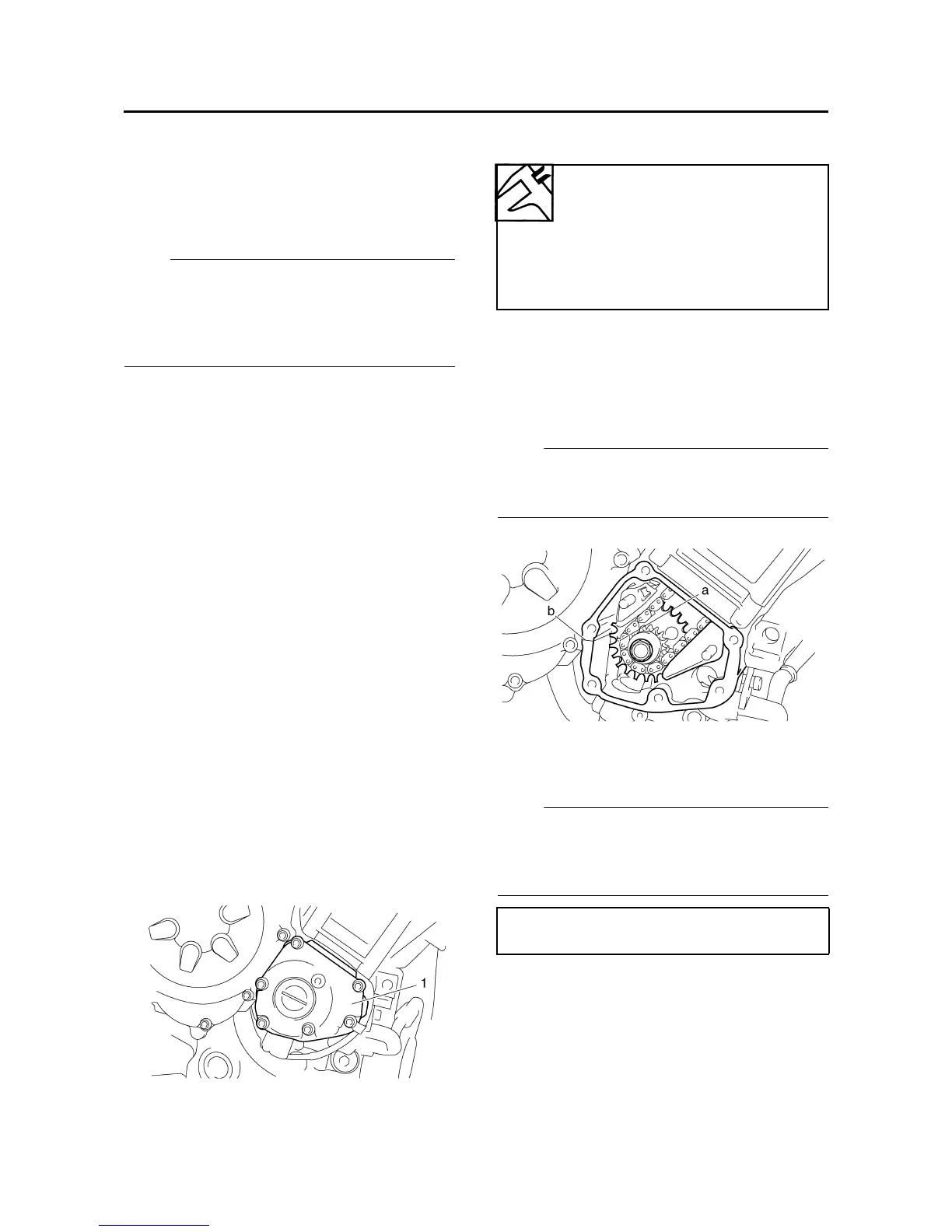

3. Remove:
• Pickup rotor cover "1"
4. Measure:
• Valve clearance
Out of specification → Adjust.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the crankshaft counterclockwise.
b. When piston #1 is at TDC on the compres-
sion stroke, align the TDC mark “a” on the
pickup rotor with the crankcase mating sur-
face “b”.
NOTE:
TDC on the compression stroke can be found
when the camshaft lobes are turned away from
each other.
c. Measure the valve clearance with a thick-
ness gauge “1”.
NOTE:
• If the valve clearance is incorrect, record the
measured reading.
• Measure the valve clearance in the following
sequence.
Valve clearance (cold)
Intake valve
0.11–0.20 mm (0.0043–0.0079
in)
Exhaust valve
0.21–0.25 mm (0.0083–0.0098
in)
Valve clearance measuring sequence
Cylinder #1 → #2 → #4 → #3
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
