Yamaha FZ1-S 2007 User Manual

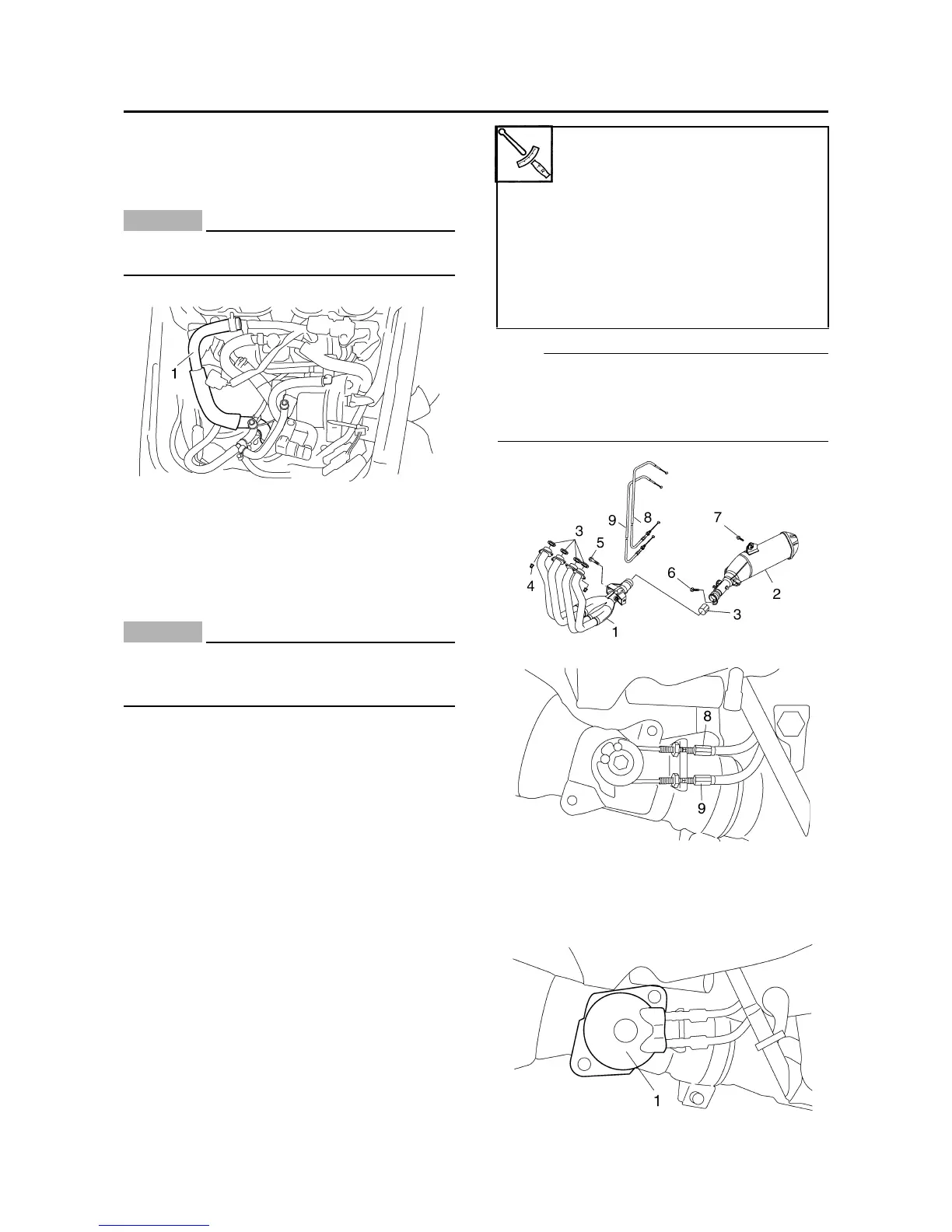

ENGINE
3-17
2. Check:
• Crankcase breather hose “1”
Cracks/damage → Replace.
Loose connection → Connect properly.
CAUTION:
ECA13450
Make sure the crankcase breather hose is
routed correctly.
3. Install:
• Fuel tank
Refer to "FUEL TANK" on page 7-1.
• Rider and passenger seat
Refer to "GENERAL CHASSIS" on page 4-
1.
CAUTION:
ECA5D01030
To install the fuel tank, check that the
breather hose is not folded or pinched by
the fuel tank.
EAS21080
CHECKING THE EXHAUST SYSTEM
The following procedure applies to all of the
exhaust pipes and gaskets.
1. Check:
• Exhaust pipe “1”
• Muffler “2”
Cracks/damage → Replace.
•Gaskets “3”
Exhaust gas leaks → Replace.
2. Check:
Tightening torque
• Exhaust pipe nut “4”
• Exhaust pipe and exhaust pipe bracket bolt
“5”
• Exhaust pipe and muffler bolt “6”
• Muffler and rear footrest bracket bolt “7”
NOTE:
When installing the EXUP cables, make sure
they are parallel and not twisted.
• Upper cable: White metal section “8”
• Lower cable: Black metal section “9”
EAS21100
ADJUSTING THE EXUP CABLES
1. Remove:
• EXUP valve pulley cover “1”
Exhaust pipe nut
20 Nm (2.0 m·kg, 14 ft·lb)
Exhaust pipe and exhaust pipe
bracket bolt
20 Nm (2.0 m·kg, 14 ft·lb)
Exhaust pipe and muffler bolt
20 Nm (2.0 m·kg, 14 ft·lb)
Muffler and rear footrest
bracket bolt
48 Nm (4.8 m·kg, 35 ft·lb)
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
