OIL PUMP
5-55
EAS24920
OIL PUMP

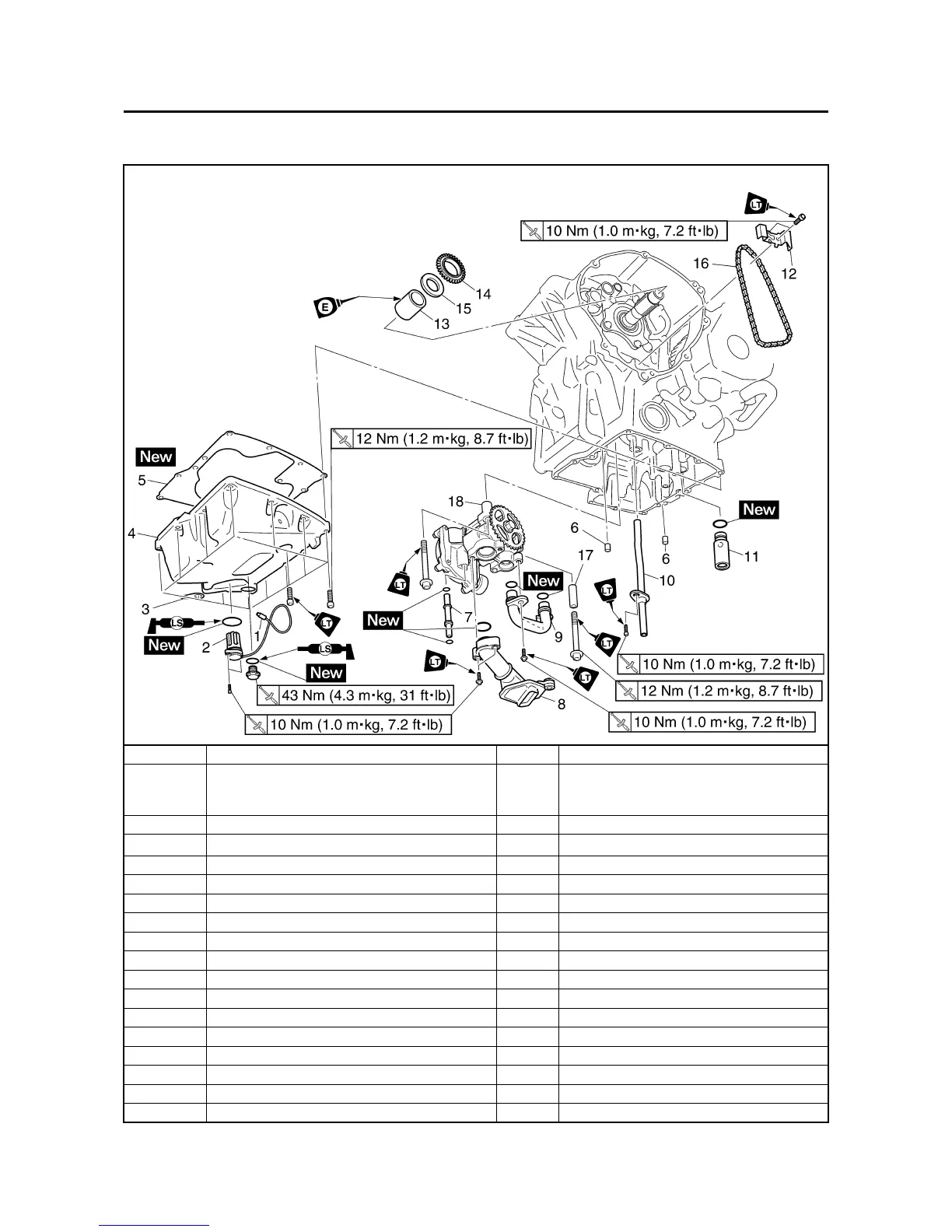

Removing the oil pan and oil pump
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to "CHANGING THE ENGINE OIL" on
page 3-12.
EXUP cables Refer to "ENGINE REMOVAL" on page 5-1.
O
2
sensor
Refer to "ENGINE REMOVAL" on page 5-1.
Muffler Refer to "ENGINE REMOVAL" on page 5-1.
Exhaust pipe assembly Refer to "ENGINE REMOVAL" on page 5-1.
Clutch assembly Refer to "CLUTCH" on page 5-43.
Water pump inlet pipe Refer to "OIL COOLER" on page 6-3.
Water pump outlet pipe Refer to "OIL COOLER" on page 6-3.
1 Oil level switch lead coupler 1 Disconnect.
2 Oil level switch 1
3 Oil level switch lead holder 1
4Oil pan 1
5 Oil pan gasket 1
6Dowel pin 2
7Drain pipe 1
8 Oil strainer 1
9 Oil pipe 1
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
