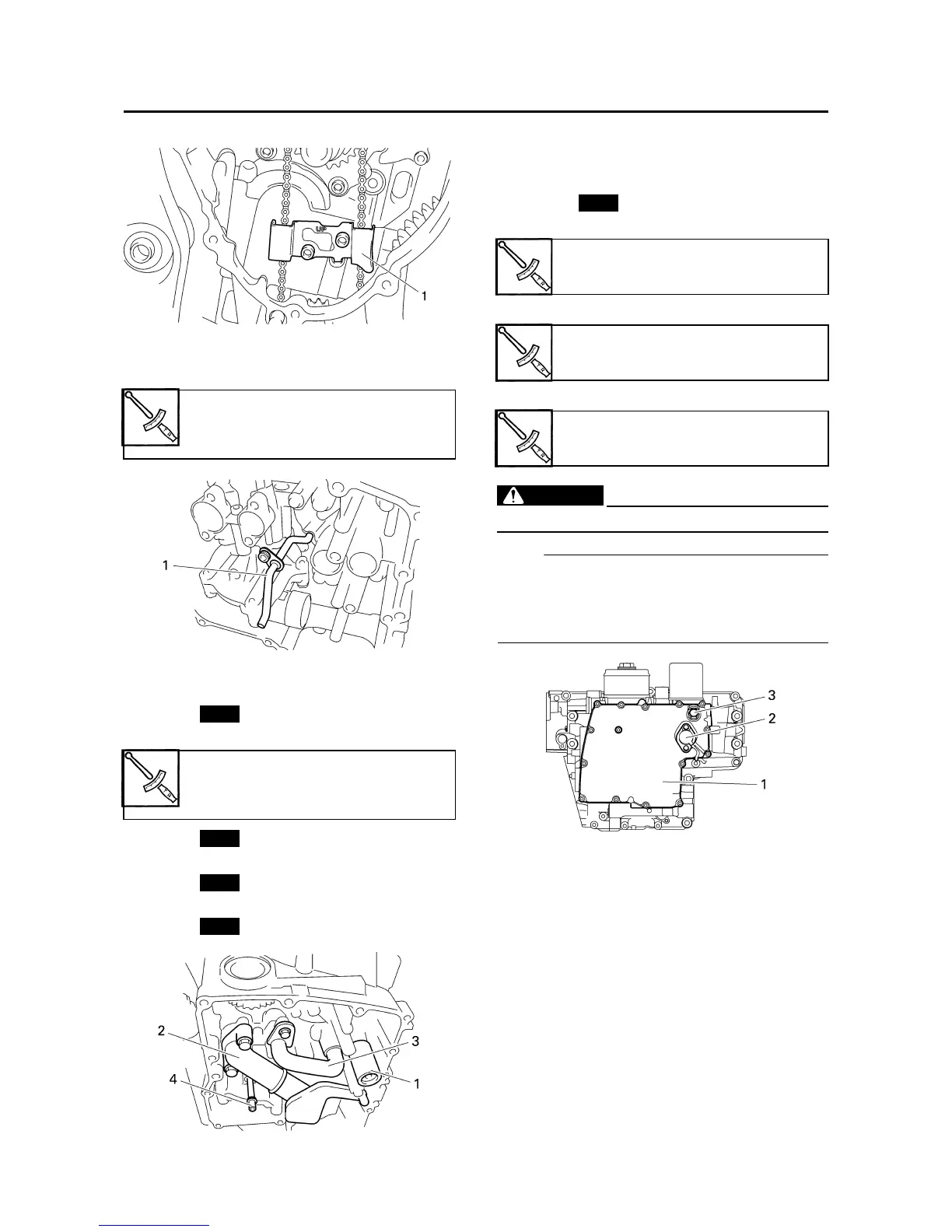

OIL PUMP
5-61
4. Install:
Oil delivery pipe “1”
5. Install:
Relief valve “1”
O-ring
Oil strainer “2”
O-ring
•Oil pipe3
O-ring
•Drain pipe4
O-ring
EAS25050
INSTALLING THE OIL PAN
1. Install:
Dowel pins
•Gasket
Oil pan “1”
Oil level switch “2”
Engine oil drain bolt “3”
WARNING
EWA12820
Always use new copper washers.
NOTE:
Tighten the oil pan bolts in stages and in a
crisscross pattern.
Lubricate the oil level switch O-ring with
engine oil.
Oil delivery pipe bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
LOCTITE®
Oil strainer bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
LOCTITE®
New
New
New
New
Oil pan bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
Oil level switch bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
New
