CHASSIS
3-27
WARNING
EWA14020
After bleeding the ABS, check the brake
operation.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS5D01015

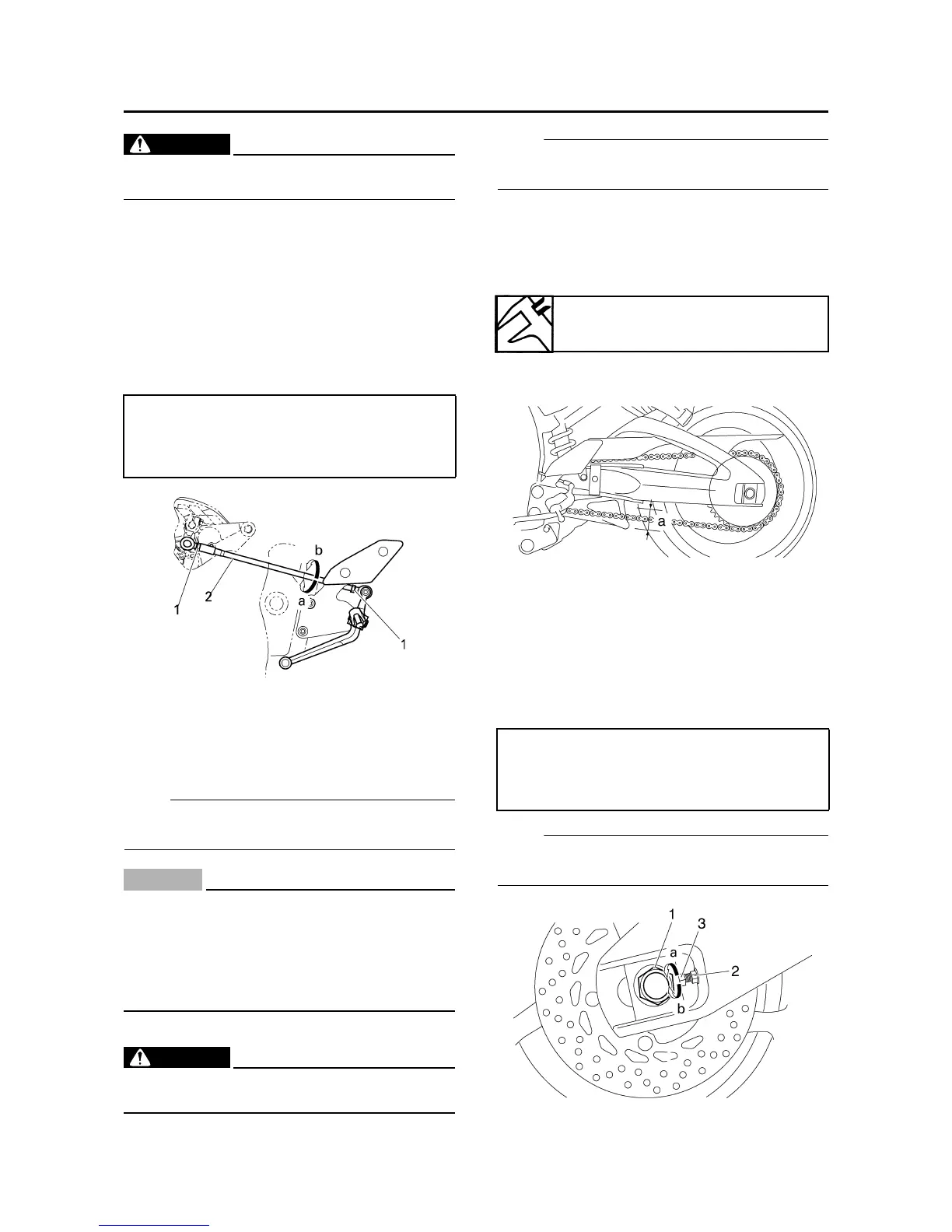

ADJUSTING THE SHIFT PEDAL
1. Adjust:
• Shift pedal position
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen both locknuts “1”.
b. Turn the shift rod “2” in direction “a” or “b” to
obtain the correct shift pedal position.
c. Tighten both locknuts.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS5D01016
ADJUSTING THE DRIVE CHAIN SLACK
NOTE:
The drive chain slack must be checked at the
tightest point on the chain.
CAUTION:
ECA13550
A drive chain that is too tight will overload
the engine and other vital parts, and one
that is too loose can skip and damage the
swingarm or cause an accident. Therefore,
keep the drive chain slack within the speci-
fied limits.
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that
the rear wheel is elevated.
2. Spin the rear wheel several times and find
the tightest position of drive chain.
3. Check:
• Drive chain slack “a”
Out of specification → Adjust.
4. Adjust:
• Drive chain slack
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the wheel axle nut “1”
b. Loosen both locknuts “2”
c. Turn both adjusting bolts “3” in direction “a”
or “b” until the specified drive chain slack is
obtained.
NOTE:
To maintain the proper wheel alignment, adjust
both sides evenly.
d. Tighten both locknuts to specification.
Direction “a”
Shift pedal is raised.
Direction “b”
Shift pedal is lowered.
Drive chain slack
25.0–35.0 mm (0.98–1.38 in)
Direction “a”
Drive chain is tightened.
Direction “b”
Drive chain is loosened.
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
