ABS (ANTI-LOCK BRAKE SYSTEM)
4-55
NOTE:
After setting the main switch to “ON”, wait
(approximately 2 seconds) until the ABS warn-
ing light goes off.
8. Push the start switch for at least 4 seconds.
CAUTION:
ECA14790
Do not operate the brake lever or the brake
pedal.

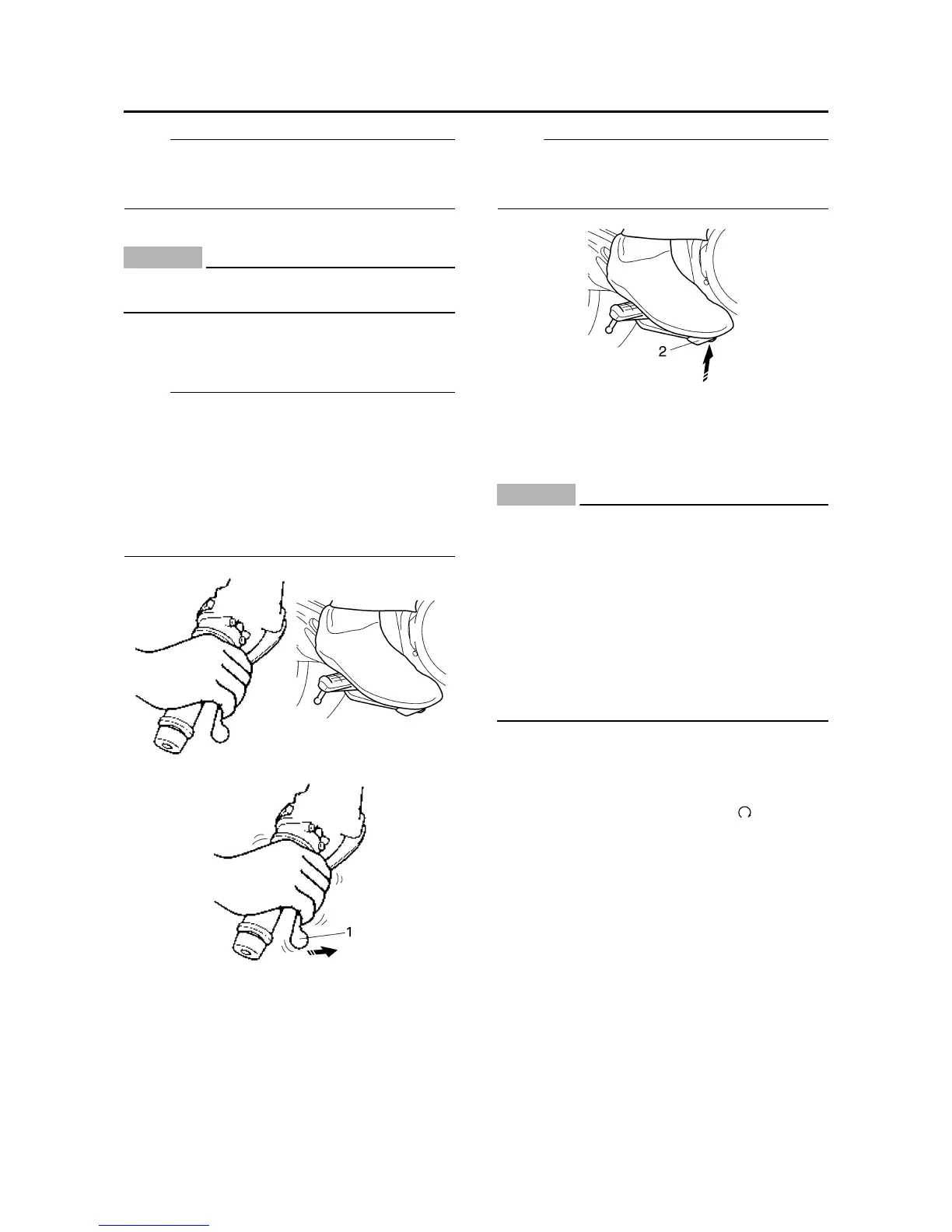

9. After releasing the start switch, operate the
brake lever and the brake pedal simulta-
neously.
NOTE:
• A reaction-force pulsating action is gener-
ated in the brake lever “1” 0.5 second after
the brake lever and the brake pedal are oper-
ated simultaneously and continues for
approximately 1 second.
• Be sure to continue to operate the brake
lever and brake pedal even after the pulsat-
ing action has stopped.
10. After the pulsating action has stopped in
the brake lever, it is generated in the brake
pedal “2” 0.5 second after and continues
for approximately 1 second.
NOTE:
Be sure to continue to operate the brake lever
and brake pedal even after the pulsating action
has stopped.
11. After the pulsating action has stopped in
the brake pedal, it is generated in the brake
lever 0.5 second after and continues for
approximately 1 second.
CAUTION:
ECA14800
• Check that the pulsating action is felt in
the brake lever, brake pedal, and again in
the brake lever, respectively.
• If the pulsating action is felt in the brake
pedal before it is felt in the brake lever,
check that the brake hoses are connected
correctly to the hydraulic unit.
• If the pulsating action is hardly felt in
either the brake lever or brake pedal,
check that the brake hoses are connected
correctly to the hydraulic unit.
12. Set the main switch to “OFF”.
13. Remove the test coupler adaptor from the
test coupler.
14. Set the main switch to “ON”.
15. Set the engine stop switch to “ ”.
EAS22820
[D-6-5] TRIAL RUN
After all checks and services are completed,
always ensure the scooter has no problems by
performing the trial running at a speed of faster
than 10 km/h.
