Yamaha FZ1-S 2007 User Manual

GENERATOR
5-32
EAS24490

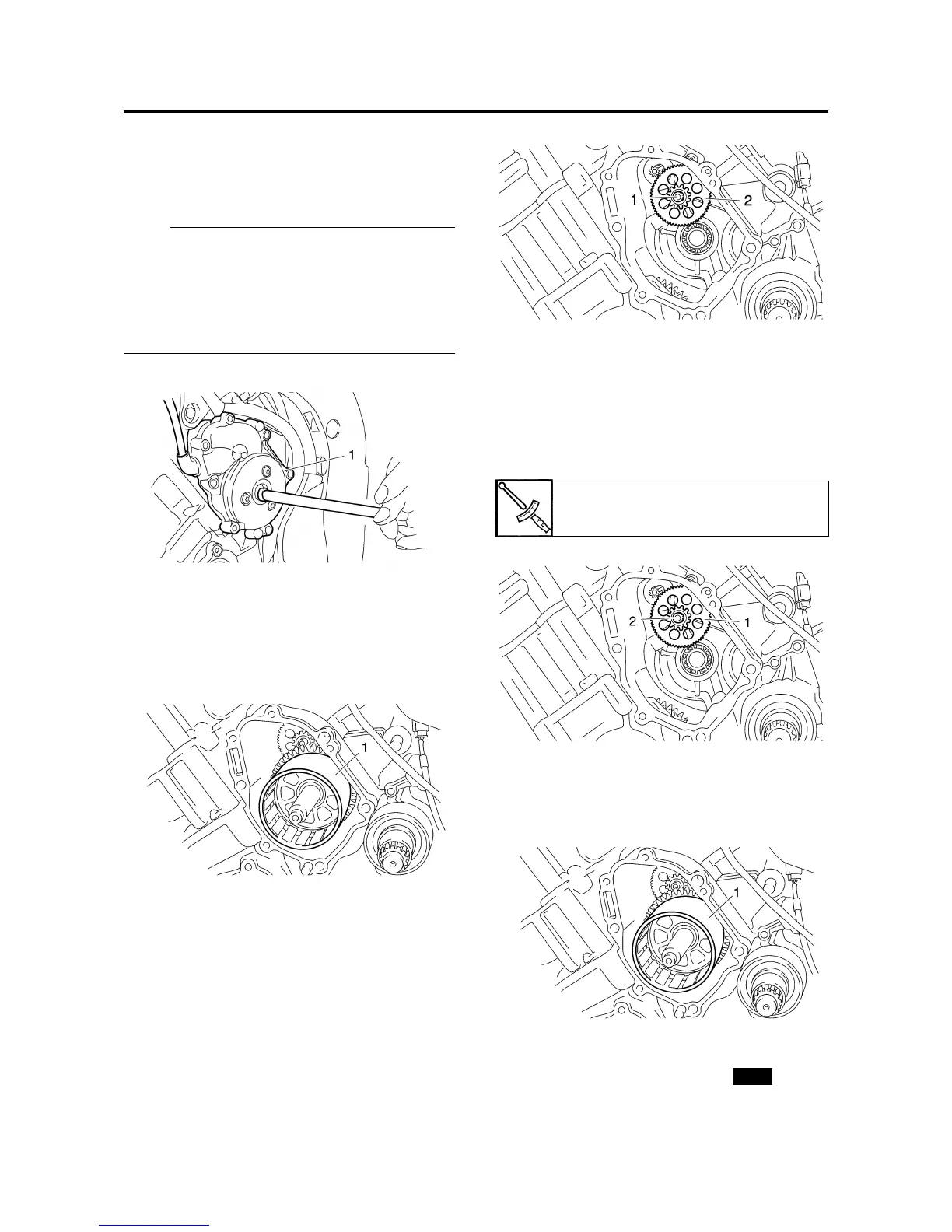

REMOVING THE GENERATOR
1. Remove:
•Plug
• Generator rotor cover “1”
NOTE:
• While pushing generator rotor, remove the
generator rotor cover.
• Loosen each bolt 1/4 of a turn a time, in
stages and in a crisscross pattern.
• After all of the bolts are fully loosened,
remove them.
2. Remove:
• Generator rotor and starter clutch assem-
bly “1”
3. Remove:
• Idle gear shaft bolt “1”
• Idle shaft
• Idle gear “2”
EAS24500
INSTALLING THE GENERATOR
1. Install:
• Idle gear shaft
• Idle gear “1”
•Washer
• Idle gear shaft bolt “2”
2. Install
• Generator rotor and starter clutch assem-
bly “1”
3. Install:
• Generator rotor cover gasket
• Generator rotor cover “1”
Idle gear shaft bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
New
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
