FRONT FORK
4-67

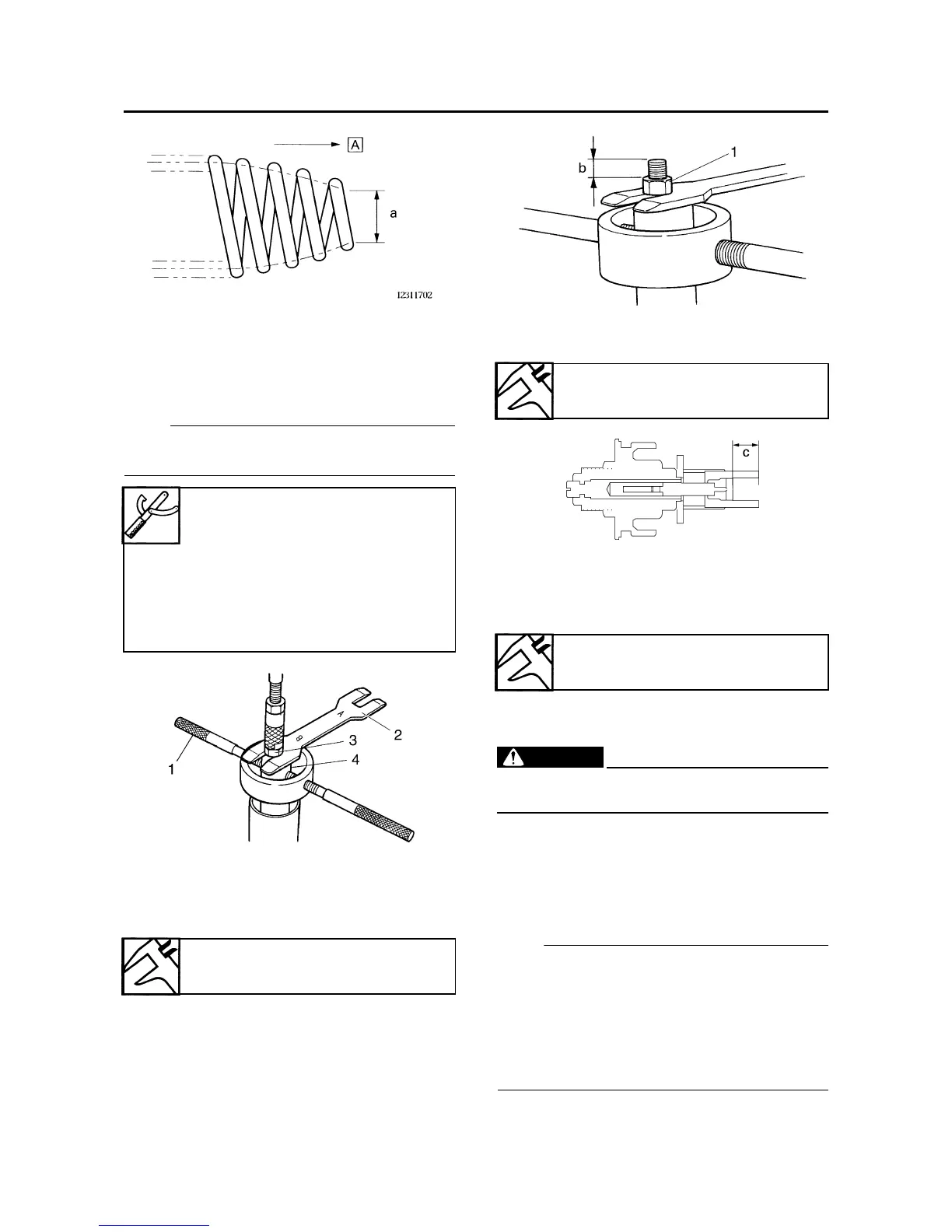

d. Press down in the spacer with the fork
spring compressor “1”
e. Pull up the rod puller and install the rod
holder “2” between the damper adjusting
rod locknut “3” and the spacer “4”.
NOTE:
Use the side of the rod holder that is marked
“B”.
f. Remove the rod puller and the rod puller
attachment.
g. Install the nut “1” and position it as speci-
fied “b”.
h. Set the cap bolt distance “c” to specifica-
tion.
i. Install the damper adjusting rod and cap
bolt, and then finger tighten the cap bolt.
j. Hold the cap bolt and tighten the damper
adjusting rod locknut to specification.
k. Remove the rod holder and fork spring
compressor.
WARNING
EWA5D01005
• The fork spring is compressed.
• Always use a new cap bolt O-ring.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS23050
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
NOTE:
Each front fork leg is equipped with a spring
preload adjusting bolt, the right fork leg is
equipped with a rebound damping force
adjusting screw and left front fork is equipped
with a compression damping force adjusting
screw. Pay attention not to mistake the right
and left.
Fork spring compressor
90890-01441
YM-01441
Rod holder
90890-01434
Damper rod holder double
ended
YM-01434
Distance “b”
12 mm (0.47 in)
Distance “c”
13 mm (0.51 in)
Damper adjusting rod locknut
15 Nm (1.5 m·kg, 11 ft·lb)
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
