Yamaha FZ1-S 2007 User Manual

STARTER CLUTCH
5-36

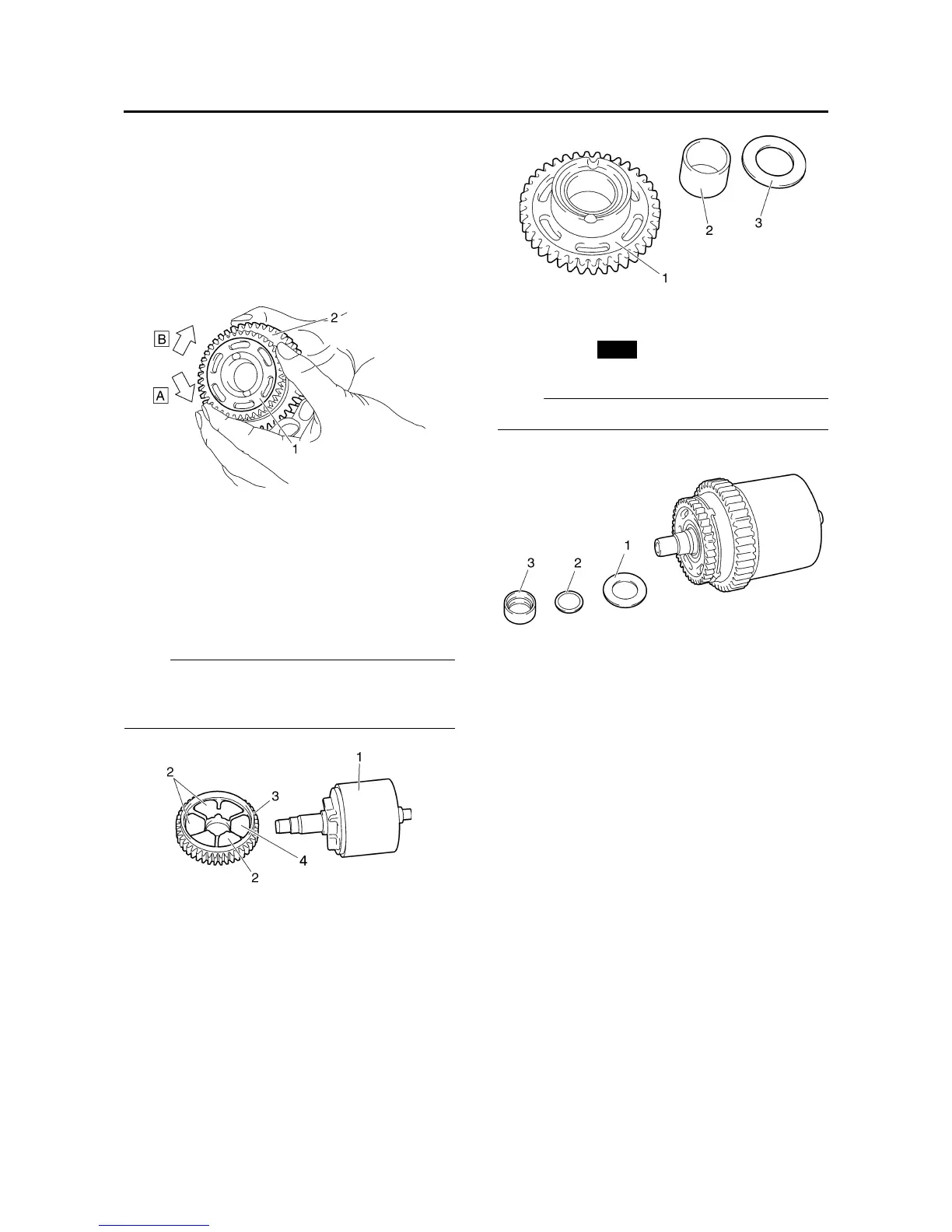

b. When turning the starter clutch drive gear
counterclockwise “A”, the starter clutch and
the starter clutch drive gear should engage,
otherwise the starter clutch is faulty and
must be replaced.
c. When turning the starter clutch drive gear
clockwise “B”, it should turn freely, other-
wise the starter clutch is faulty and must be
replaced.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS24600
INSTALLING THE STARTER CLUTCH
1. Install:
• Generator rotor “1”
• Damper “2”
• Driven gear “3”
NOTE:
• The hole side of the damper is installed to
the generator side.
• Lubricate the engine oil “4”.
2. Install
• Starter clutch drive gear “1”
• Collar “2”
• Washer “3”
Refer to "CHECKING THE STARTER
CLUTCH" on page 5-35.
3. Install:
• Washer “1”
• O-ring “2”
• Spacer “3”
NOTE:
Lubricate the engine oil to O-ring.
New
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FZ1-S 2007 Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	998cc, liquid-cooled, 20-valve, DOHC, inline four-cylinder
Front Suspension	43mm inverted telescopic fork; adjustable preload, compression and rebound damping
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	245mm disc w/single-piston caliper
Seat Height	815 mm (32.1 inches)
Fuel Capacity	18 liters (4.8 gallons)
Wheelbase	1, 460 mm (57.5 inches)
Maximum Power	150 hp @ 11, 000 rpm
Maximum Torque	106 Nm @ 8, 000 rpm
Frame	Aluminum
Length	2, 140mm (84.3")
Width	770mm (30.3")
Height	1, 205 mm (47.4 inches)
