TRANSMISSION
5-81
EAS26240
TRANSMISSION

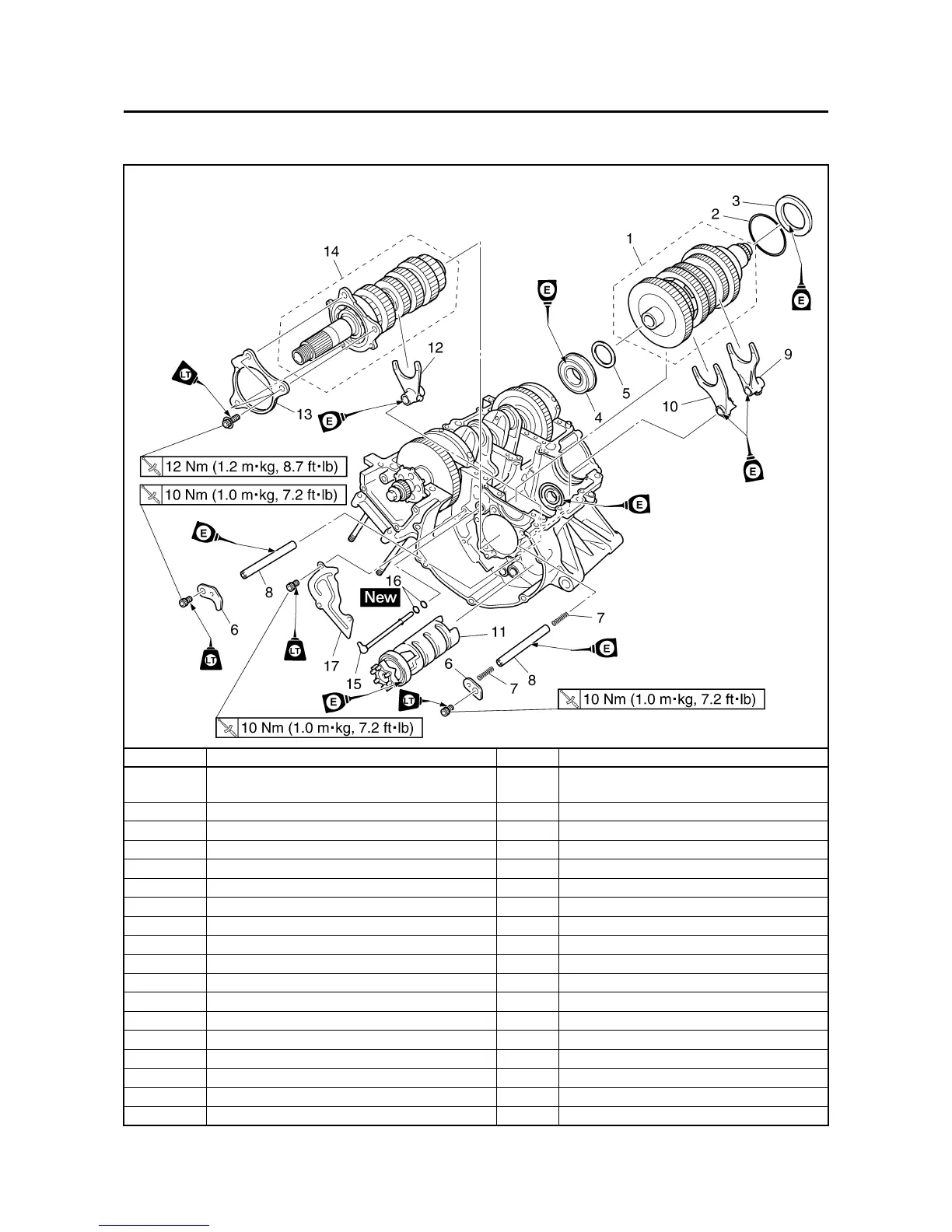

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase lower
Separate.
Refer to "CRANKCASE" on page 5-62.
1 Drive axle assembly 1
2 Circlip 1
3 Oil seal 1
4 Bearing 1
5 Washer 1
6 Shift fork guide bar retainer 2
7Spring 2
8 Shift fork guide bar 2
9 Shift fork “L” 1
10 Shift fork “R” 1
11 Shift drum assembly 1
12 Shift fork “C” 1
13 Main axle retainer 1
14 Main axle assembly 1
15 Oil pipe 1
16 O-ring 2
17 Oil baffle plate 1
