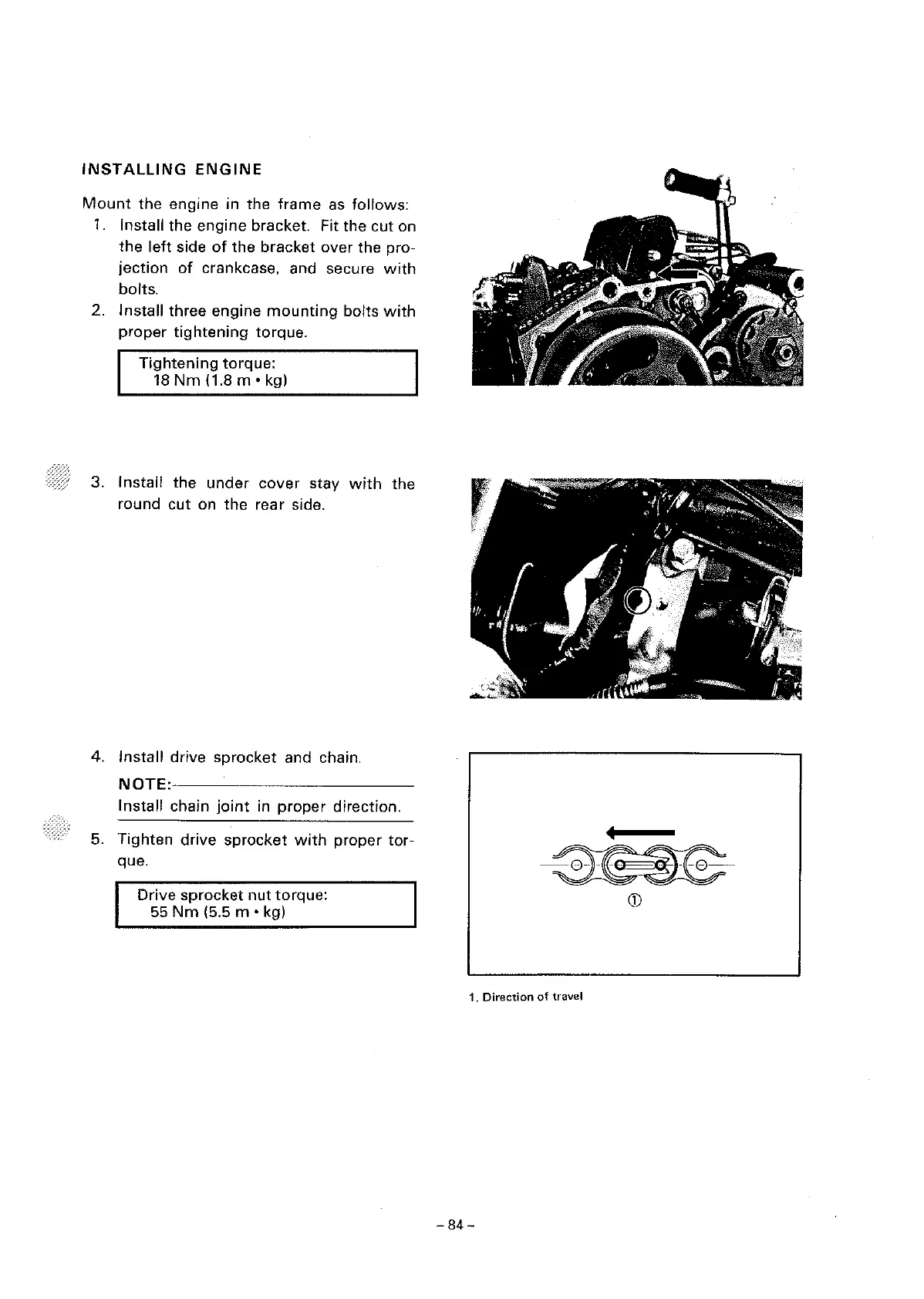

INSTALLING ENGINE
Mount the engine in the frame as follows:
1. Install the engine bracket. Fit the cut on
the left side of the bracket over the pro-
jection of crankcase, and secure with
bolts.
2.
Install three engine mounting bolts with
proper tightening torque.
Tightening torque:
18 Nm (1.8 m • kg)
3.
Install the under cover stay with the
round cut on the rear side.
4.
Install drive sprocket and chain.
NOTE:------------
lnstall chain joint in proper direction.
5.
Tighten drive sprocket with proper tor-
que.
Drive
sprocket nut torque:
55 Nm (5.5 m • kg)
G)
1. Direction of travel
-84-
