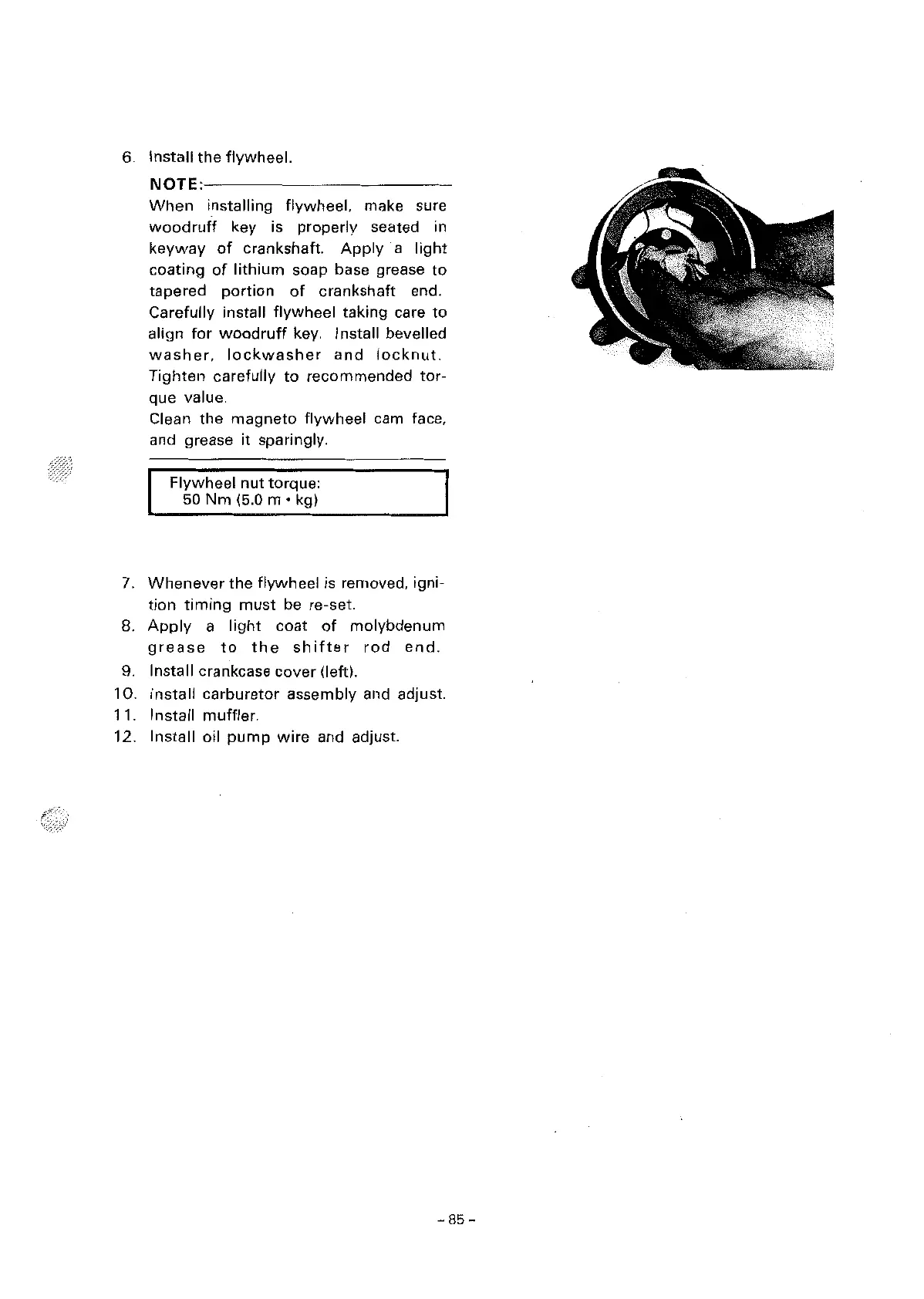

6. Install the flywheel.
NOTE:------------
When installing flywheel, make sure
woodruff key is properly seated in
keyway of crankshaft. Apply a light
coating of lithium soap base grease to
tapered portion of crankshaft end.
Carefully install
flywheel taking care to
align for woodruff key. Install bevelled
washer, lockwasher and locknut.
Tighten carefully to recommended tor-
que value.
Clean
the magneto flywheel cam face,
and grease
it sparingly.
Flywheel nut torque:
50 Nm (5.0 m • kg)
7.
Whenever the flywheel is removed, igni-
tion timing must be re-set.
8.
Apply a light coat of molybdenum
grease to the shifter rod end.
9. Install crankcase cover (left).
10.
Install carburetor assembly and adjust.
11. Install muffler.
12.
Install oil pump wire and adjust.
-85-
