26
MOX6/MOX8
Fig.16
(図 16)
Fig.17
(図 17)

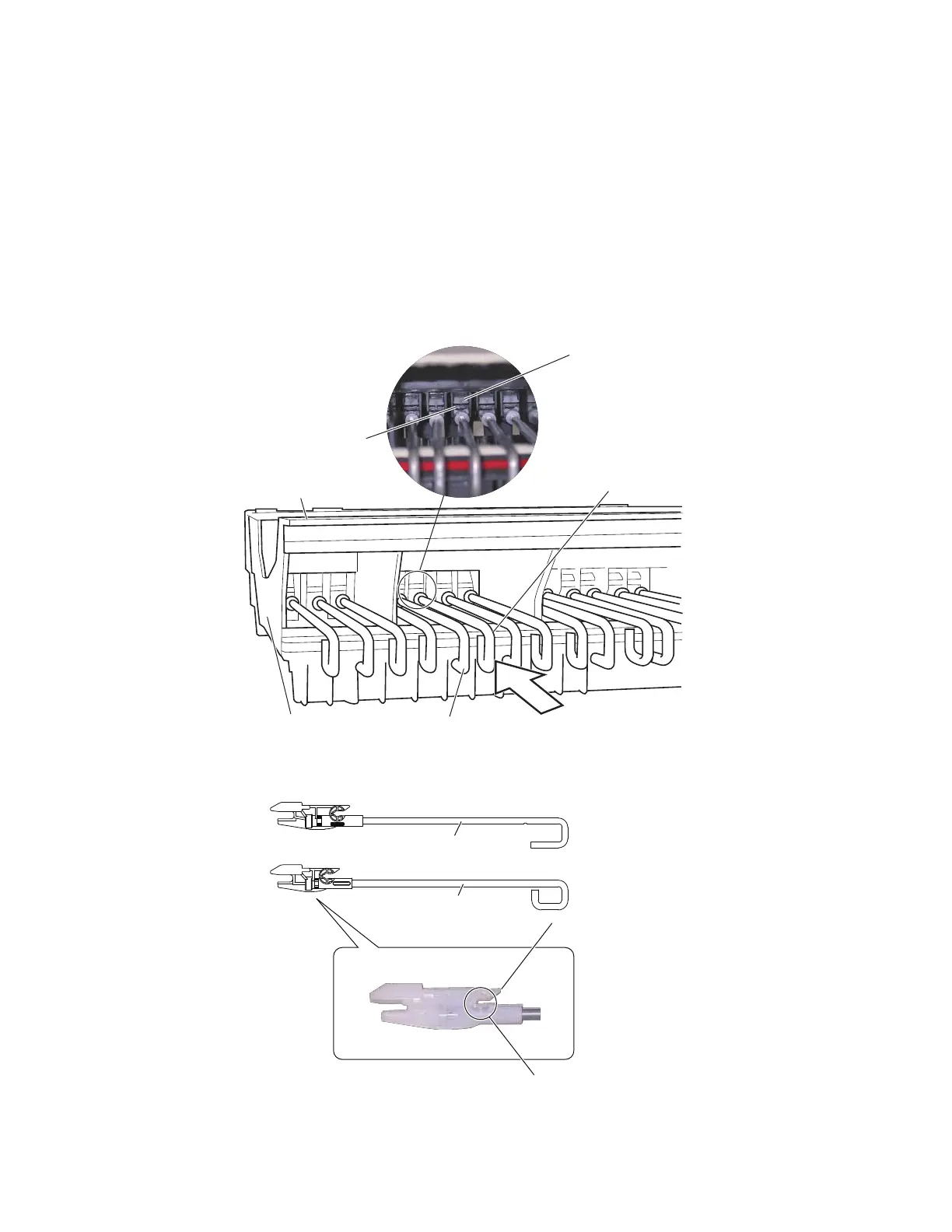

9-9 Hammer (White Key),(Black Key)
Remove the black and white key assemblies for the
related keys.
With the key frame placed upside down, push the
hammer forward from the rear, then a click sound is
heard and the hammer bearing section can be removed
from the hammer axis of the key frame.
Take out the hammer sideways. (Fig.16, Fig.17)
* When removing the hammer, take care not to cause damage to
the hammer bearing and its claw.
9-9 ハンマー(白鍵)(黒鍵)
該当する白鍵 Ass'y/ 黒鍵 Ass'y を外します。
鍵盤フレームを裏側にして、後方からハンマーを前
に押すと、「 カチッ と音がして鍵盤フレームのハ
ンマー軸からハンマーの軸受け部が外れます。
ハンマーを横にして取り出します。(Fig.16,Fig.17)
※ ハンマーを外すとき、ハンマーの軸受け爪や軸受け部を傷
めないように注意して作業してください。
)UDPH
(鍵盤フレーム)
+DPPHU:KLWH.H\
(ハンマー(白鍵))
+DPPHU%ODFN.H\
(ハンマー(黒鍵))
%HDULQJ&ODZ
(軸受け爪)
+DPPHU$[LV
(ハンマー軸)
%RWWRP6LGH
(ボトム側)
3XVK
(押す)
5HDUYLHZ!後ろら見た図!
+DPPHU::KLWH.H\
(ハンマーW1(白鍵))
+DPPHU%%ODFN.H\
(ハンマーB1(黒鍵))
%HDULQJ&ODZ
(軸受け爪)
%HDULQJ6HFWLRQ
(軸受け部)
