Yamaha MT-09SP 2021 - Page 137

4-4
GENERAL CHASSIS (1)

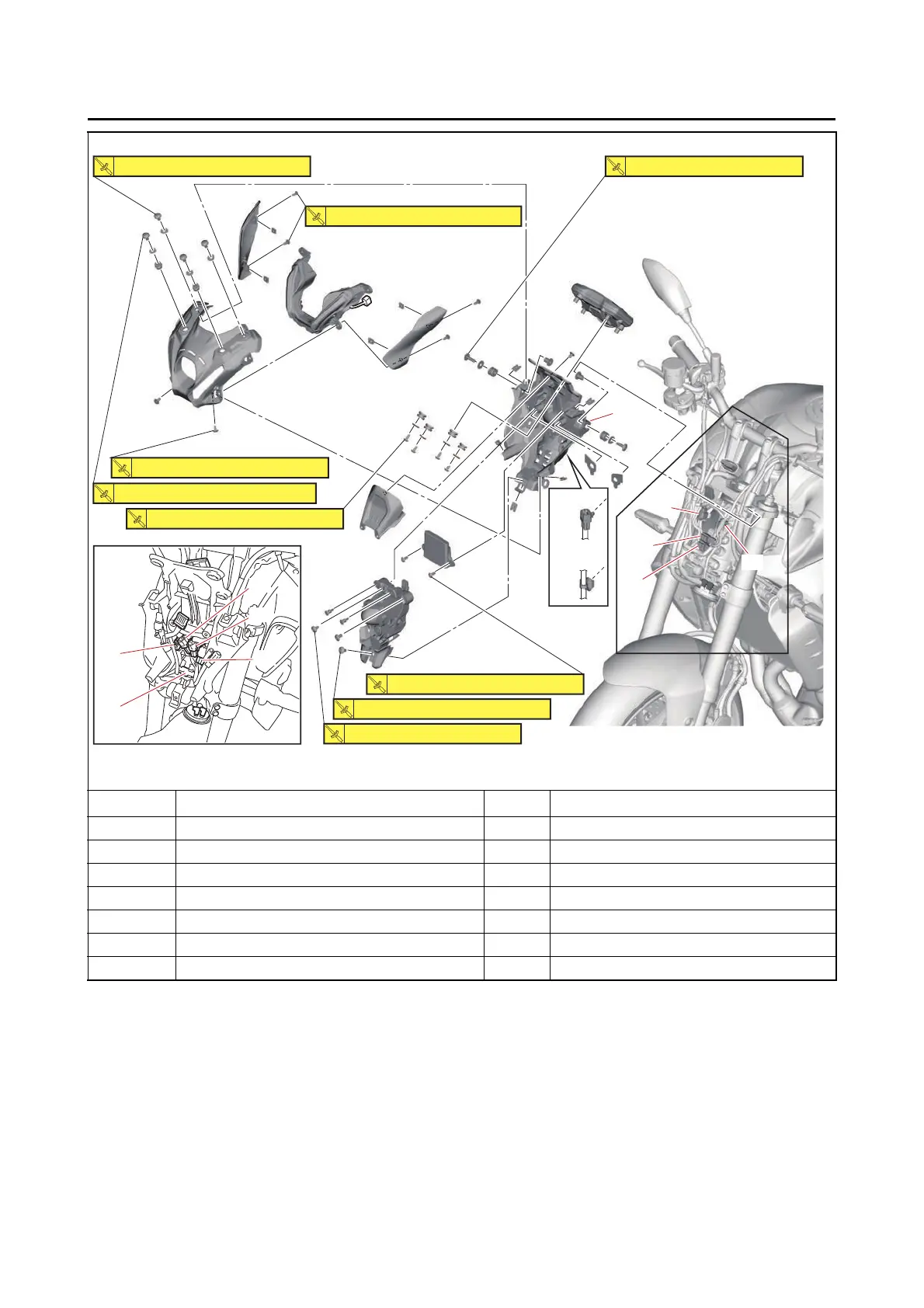

Removing the headlight assembly, auxiliary light and meter assembly
* For MTN890
** For MTN890D
Order Job/Parts to remove Q’ty Remarks
14 Handlebar switch coupler 2 (right) 1 Disconnect.
15 Front brake light switch coupler 1 Disconnect.
16 Handlebar switch coupler 1 (right) 1 Disconnect.
17 Accelerator position sensor coupler 1 Disconnect.
18 Clutch switch coupler 1 Disconnect. (for MTN890D)
19 Harness clamp/Coupler clamp Disconnect.
20 Meter assembly bracket 1
20
(4)
(3)
14
16
15
17
17
16
19
**
*
(6)
**
*
18
15
14
1.5 N
•
m (0.15 kgf
•
m, 1.1 lb
•
ft)
T.R.
4.3 N
•
m (0.43 kgf
•
m, 3.2 lb
•
ft)
T.R.
4.3 N
•
m (0.43 kgf
•
m, 3.2 lb
•
ft)
T.R.
1.5 N
•
m (0.15 kgf
•
m, 1.1 lb
•
ft)
T.R.
0.7 N
•
m (0.07 kgf
•
m, 0.52 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
1.8 N
•
m (0.18 kgf
•
m, 1.3 lb
•
ft)
T.R.
1.8 N
•
m (0.18 kgf
•
m, 1.3 lb
•
ft)
T.R.
