OIL PAN
EAS20177
OIL PAN

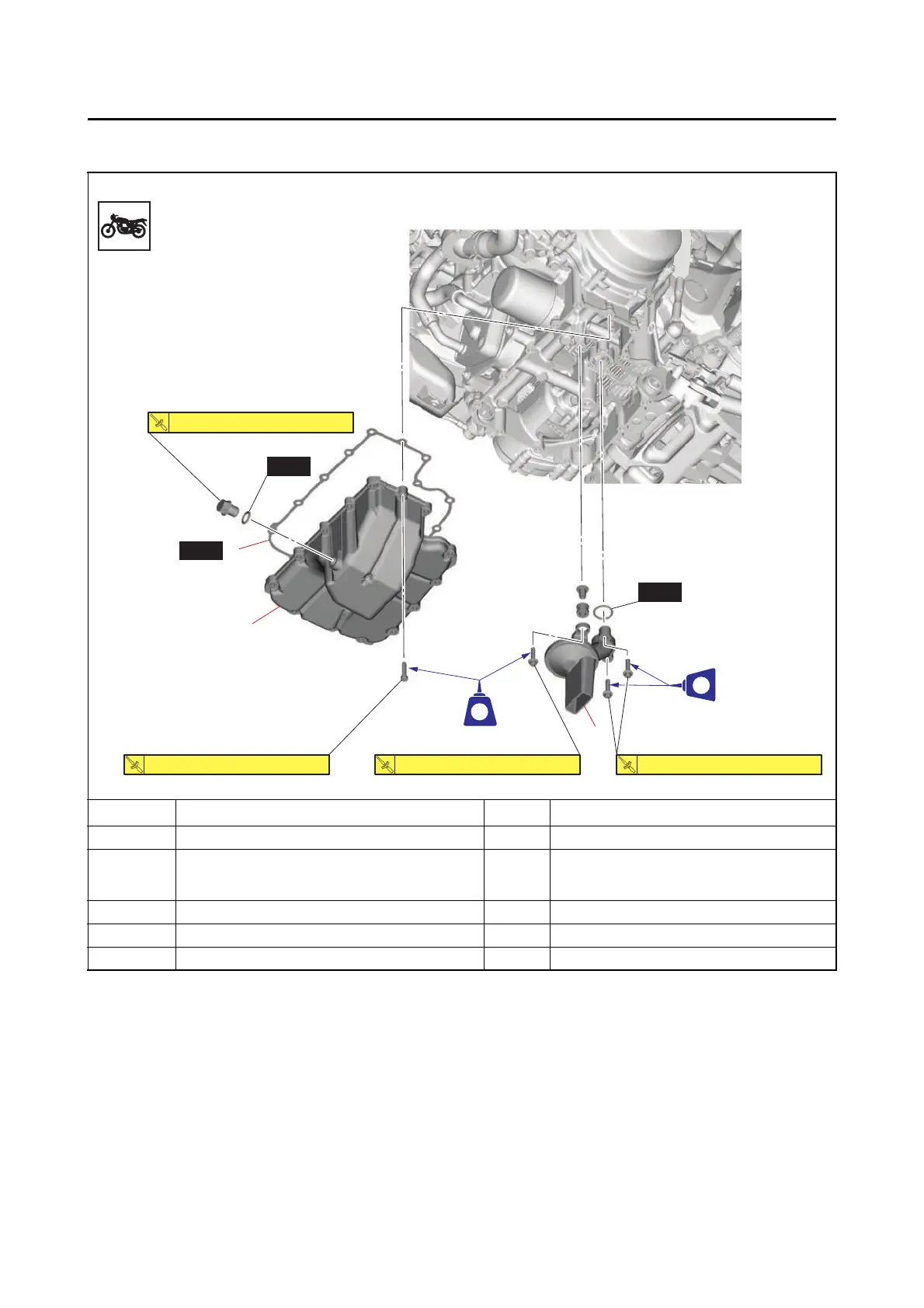

Removing the oil pan
Order Job/Parts to remove Q’ty Remarks
Muffler assembly Refer to “ENGINE REMOVAL” on page 5-9.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-28.
1Oil pan 1
2 Oil pan gasket 1
3 Oil strainer 1
2
1
(15)
3
New
New
New
LT
LT
LT
43 N
•
m (4.3 kgf
•
m, 32 lb
•
ft)
T.R.
13 N
•
m (1.3 kgf
•
m, 9.6 lb
•
ft)
T.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
