Yamaha MT-09SP 2021 - Chain Drive

4-86
CHAIN DRIVE
EAS20038
CHAIN DRIVE

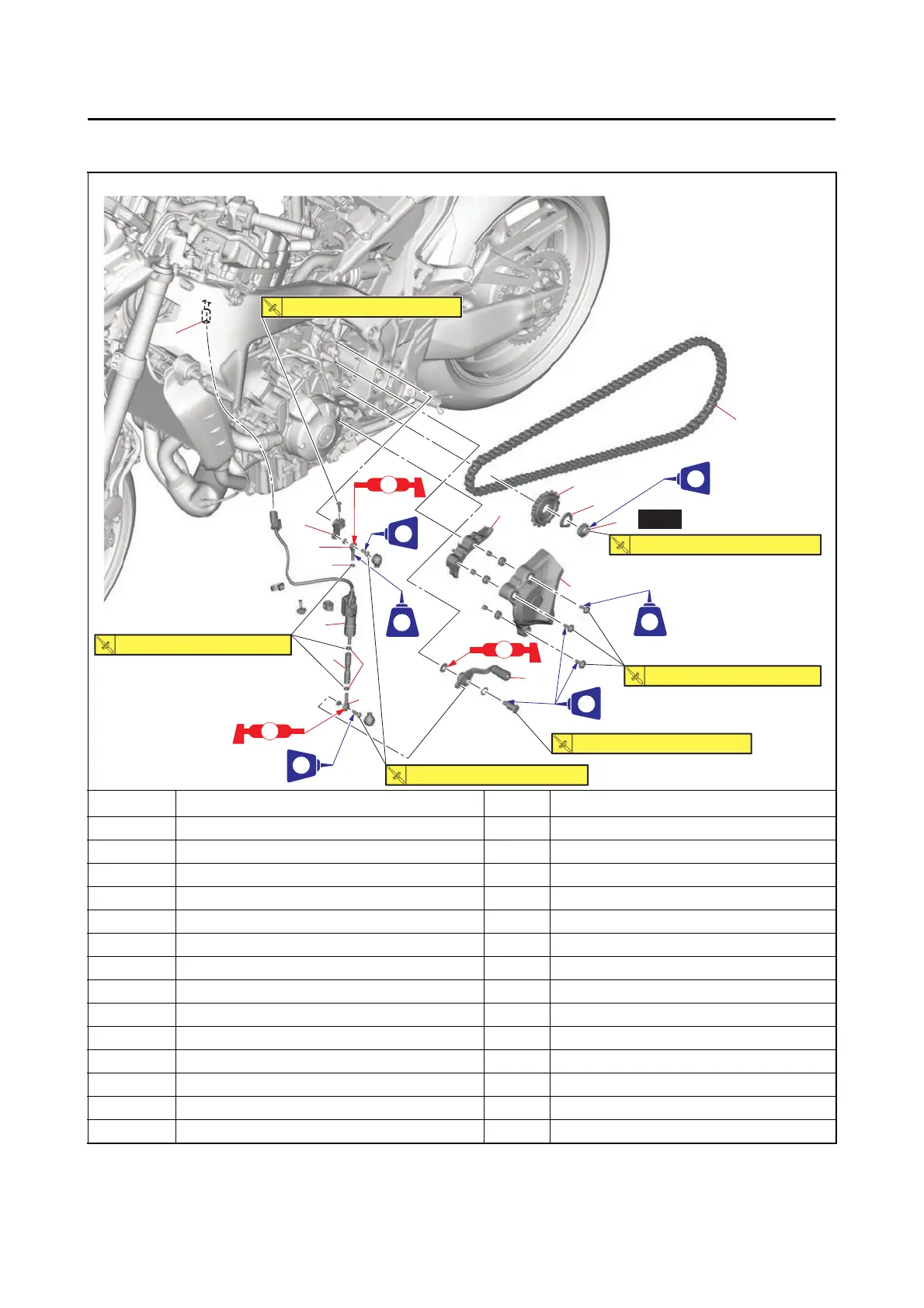

Removing the drive chain
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Shift sensor coupler 1 Disconnect.
2 Locknut 3
3 Shift sensor 1
4 Shift rod 1
5 Shift arm 1
6 Shift rod joint 2
7 Shift pedal 1
8 Drive sprocket cover 1
9 Drive chain guide 1
10 Drive chain 1
11 Drive sprocket nut 1
12 Washer 1
13 Drive sprocket 1
2
6
13
10
12
11
7
8
9
5
2
6
4
3
1
New
LT
LS
LT
LT
LS
LS
LT
LT
LT
8 N
•
m (0.8 kgf
•
m, 5.9 lb
•
ft)
T
.R.
160 N
•
m (16 kgf
•
m, 118 lb
•
ft)
T
.R.
28 N
•
m (2.8 kgf
•
m, 21 lb
•
ft)
T
.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
14 N
•
m (1.4 kgf
•
m, 10 lb
•
ft)
T
.R.
