Yamaha MT-09SP 2021 - Removing the Clutch

5-49
CLUTCH
EAS30346

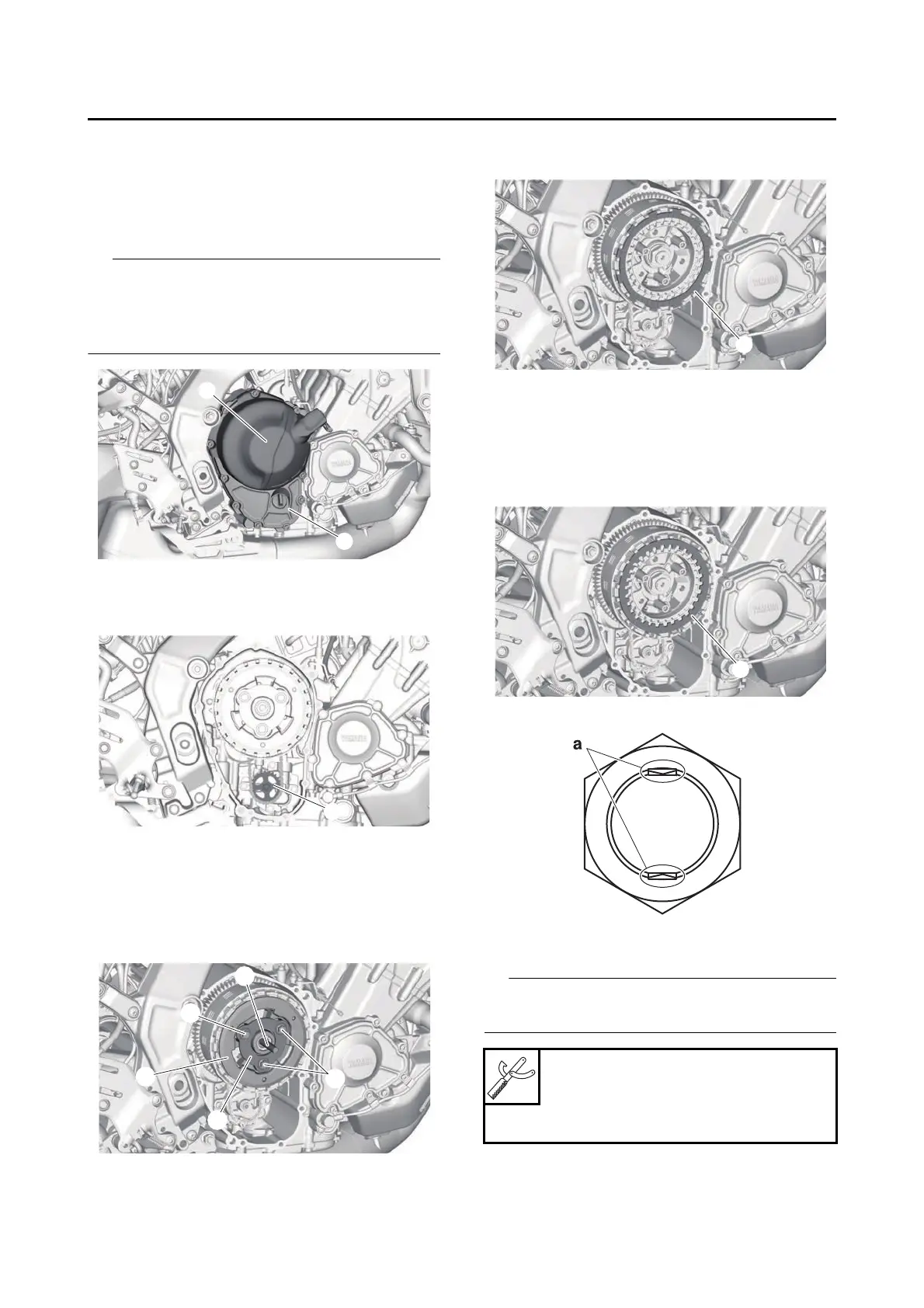

REMOVING THE CLUTCH
1. Remove:
• Cover “1”
•Clutch cover “2”
•Gasket
TIP
Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• Oil pump driven sprocket “1”
Refer to “OIL PUMP” on page 5-57.
3. Remove:
• Clutch spring bolt “1”
• Pressure plate 1 “2”
• Clutch spring
• Pressure plate 2 “3”
• Pull rod “4”
4. Remove:
• Friction plate 2 “1”
5. Remove:
• Clutch plate 1 “1”
• Clutch plate 2
• Friction plate 1
• Clutch damper spring
• Clutch damper spring seat
6. Straighten the clutch boss nut rib “a”.
7. Loosen:
• Clutch boss nut “1”
TIP
While holding the clutch boss “2” with the univer-
sal clutch holder “3”, loosen the clutch boss nut.
1
2
1
4
1
1
3
2
Clutch holder
90890-04199
Universal clutch holder
YM-91042
1
1
G088992
