Yamaha MT-09SP 2021 - Generator and Starter Clutch; Removing the Stator Coil, Generator Rotor and Starter Clutch

5-36

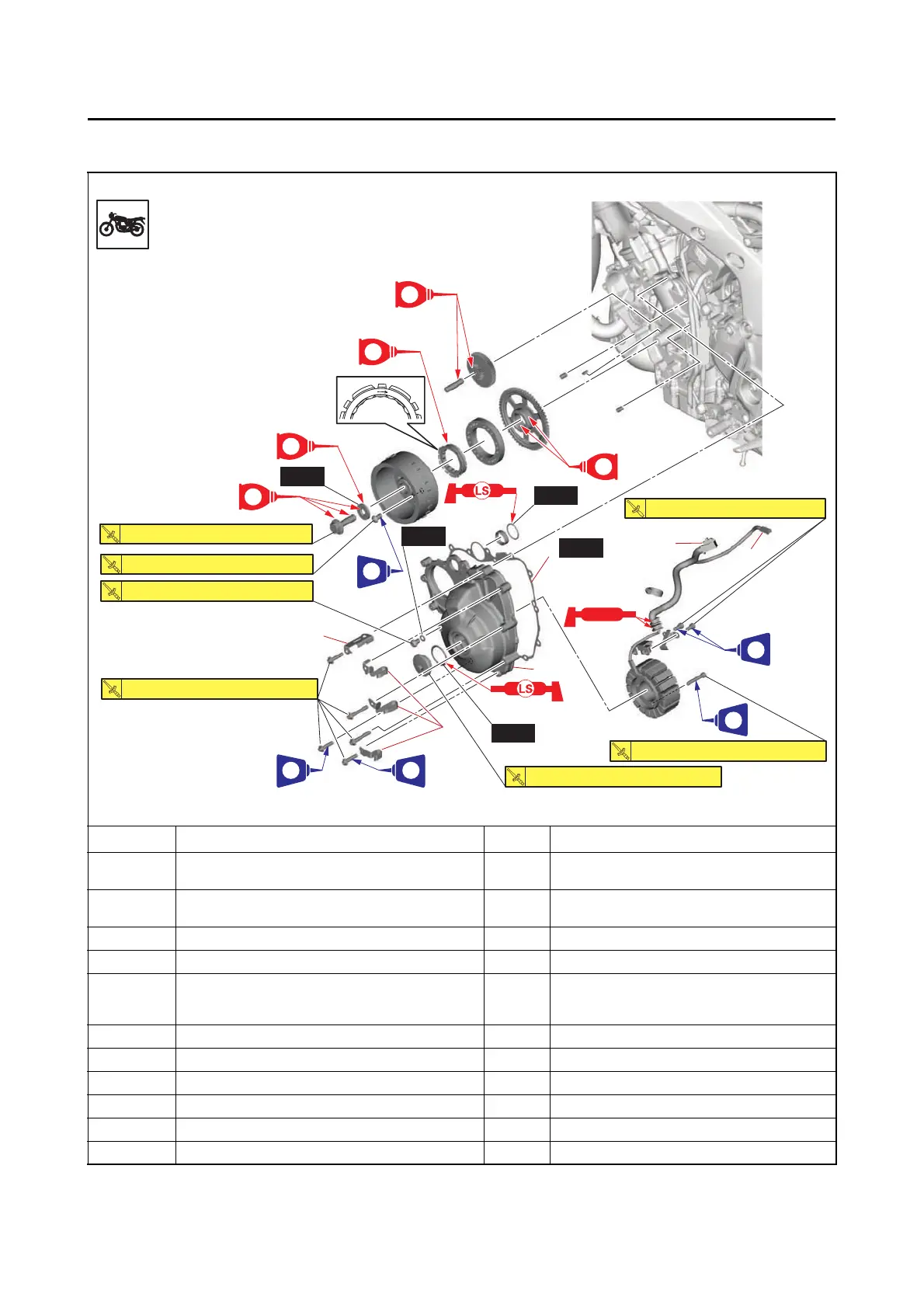

GENERATOR AND STARTER CLUTCH
EAS20140
GENERATOR AND STARTER CLUTCH
Removing the stator coil, generator rotor and starter clutch
* YAMAHA bond No. 1215 (Three bond No. 1215®)
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank center cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Water pump Refer to “WATER PUMP” on page 6-11.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-28.
1 Stator coil coupler 1 Disconnect.
2 Crankshaft position sensor coupler 1 Disconnect.
3 Holder (fuel tank overflow hose) 3
4 Bracket 1
5 Generator cover 1
6 Generator cover gasket 1
1
2
(3)
(3)
(6)
6
4
3
5
New
New
New
New
New
*
LTLT
LT
LT
E
E
E
LT
E
E
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T
.R.
11 N・m (1.1 kgf・m, 8.1 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
15 N・m (1.5 kgf・m, 11 lb・ft)
32 N・m (3.2 kgf・m, 24 lb・ft)
75 N・m (7.5 kgf・m, 55 lb・ft)
