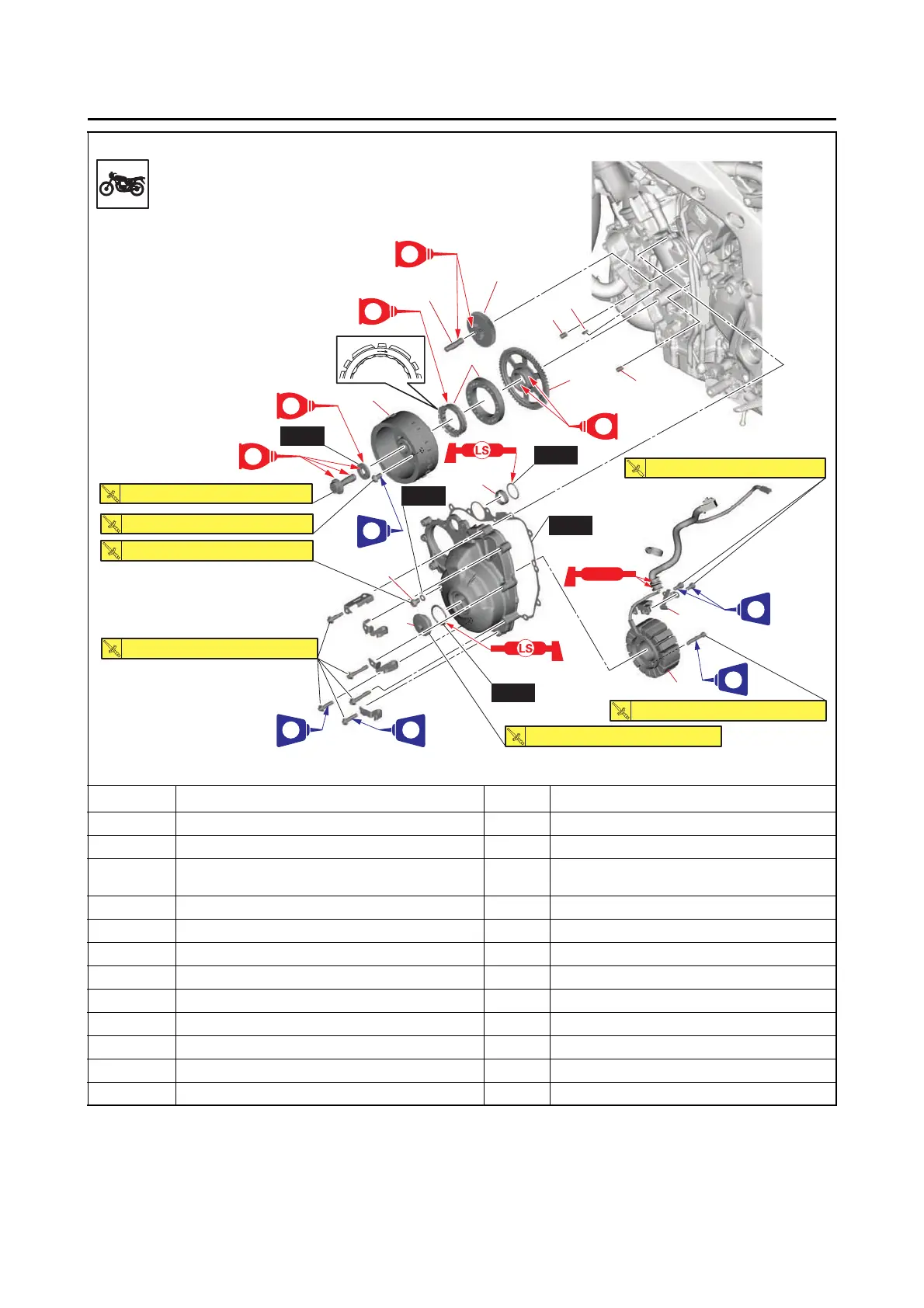

GENERATOR AND STARTER CLUTCH
Removing the stator coil, generator rotor and starter clutch
* YAMAHA bond No. 1215 (Three bond No. 1215®)
Order Job/Parts to remove Q’ty Remarks
7 Dowel pin 2
8 Stator coil lead holder 1
9
Stator coil assembly (stator coil/crankshaft posi-
tion sensor)
1
10 Generator rotor 1
11 Starter clutch 1
12 Starter clutch gear 1
13 Woodruff key 1
14 Starter clutch idle gear shaft 1
15 Starter clutch idle gear 1
16 Crankshaft end cover 1
17 Timing mark accessing bolt 1
18 Water pump outlet pipe 1
New
(3)
(3)
(6)
18
11
12
8
9
17
16
7
7
13
15
14
10
New
New
New
New
*
LTLT
LT
LT
E
E
E
LT
E
E
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T
.R.
11 N・m (1.1 kgf・m, 8.1 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
15 N・m (1.5 kgf・m, 11 lb・ft)
32 N・m (3.2 kgf・m, 24 lb・ft)
75 N・m (7.5 kgf・m, 55 lb・ft)
