Yamaha MT-09SP 2021 - Electric Starter; Removing the Starter Motor

5-41
ELECTRIC STARTER
EAS20052
ELECTRIC STARTER

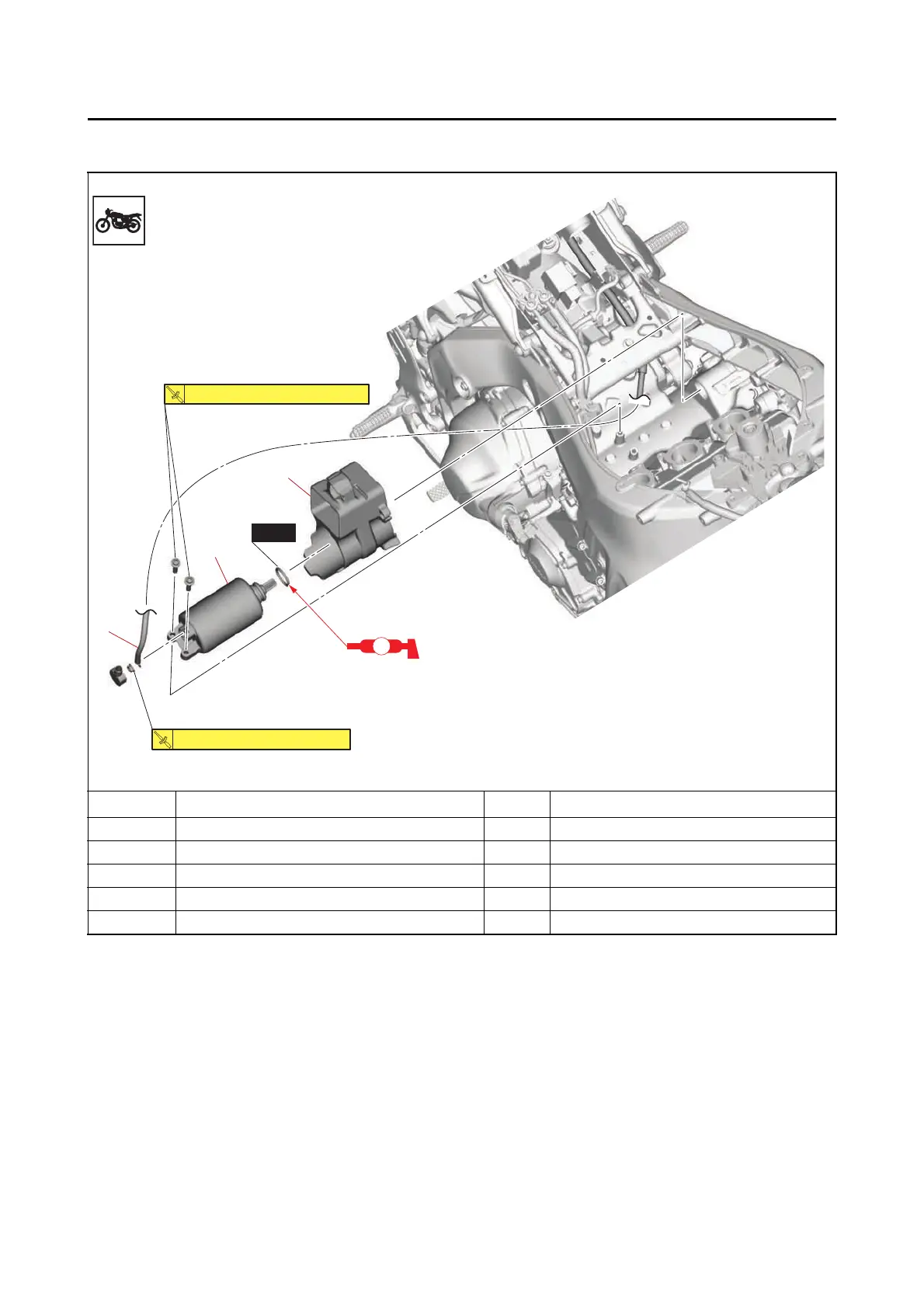

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Purge cut valve solenoid Refer to “FUEL TANK” on page 7-1.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
1 Starter motor lead 1 Disconnect.
2 Starter motor 1
3 Canister holder 1
1
3
2
LS
New
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
12 N
•
m (1.2 kgf
•
m, 8.9 lb
•
ft)
T.R.
