Yamaha MT-09SP 2021 - How to Check Dtc

9-27
IMMOBILIZER SYSTEM
EAS32889
HOW TO CHECK DTC
When a system malfunction occurs, the DTC is indicated in the meter display and the immobilizer sys-
tem indicator light flashes at the same time. The pattern of flashing also shows the DTC.
Immobilizer system indicator light DTC indication
Digit of 10: Cycles of 1 sec. ON and 1.5 sec. OFF.
Digit of 1: Cycles of 0.5 sec. ON and 0.5 sec. OFF.

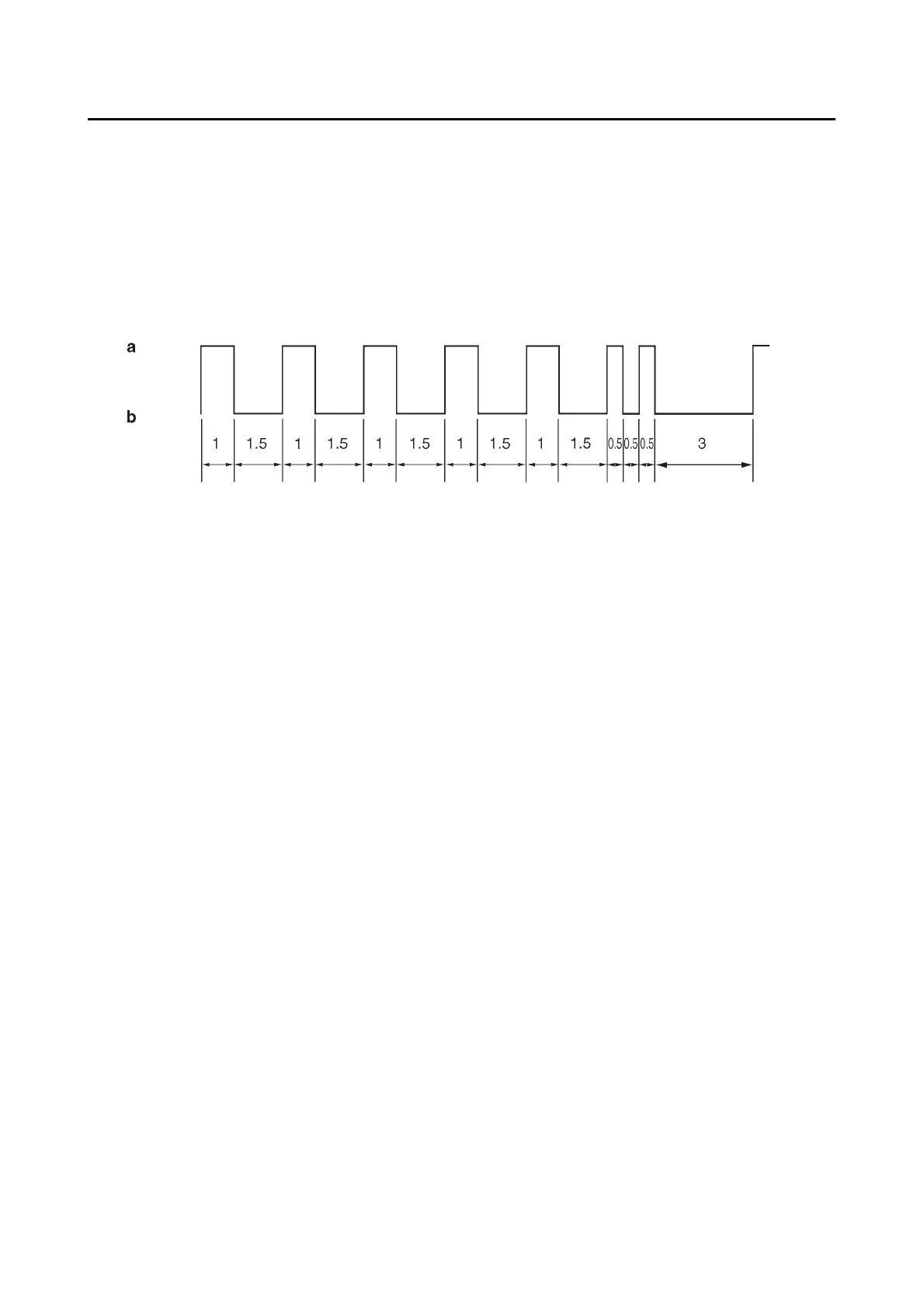

Example: DTC 52
a. Light on
b. Light off
