Yamaha MT-09SP 2021 - Swingarm

4-83
SWINGARM
EAS20037
SWINGARM

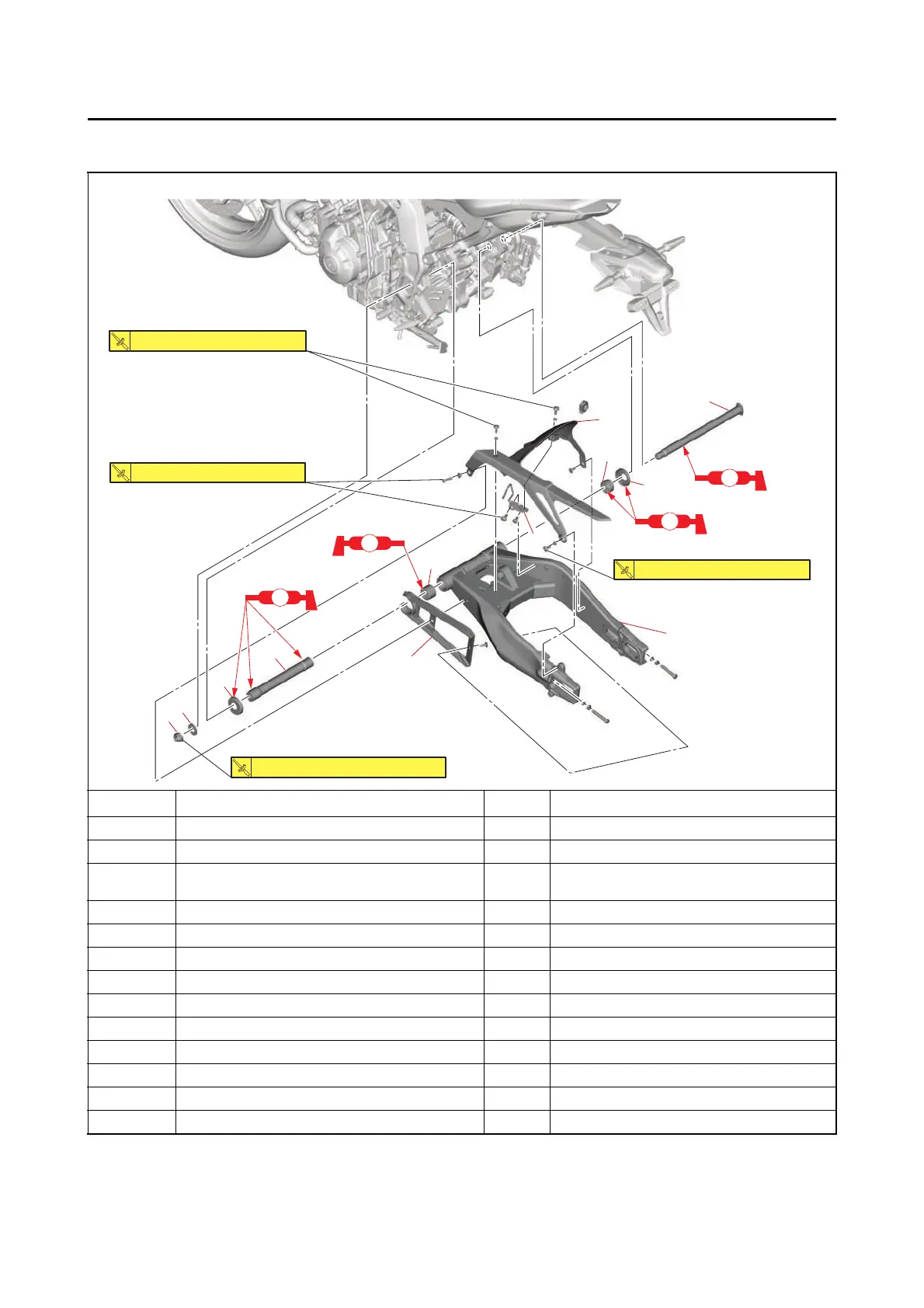

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper Refer to “REAR BRAKE” on page 4-37.
Rear wheel Refer to “REAR WHEEL” on page 4-18.
Relay arm nut/Bolt
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-78.
1 Pivot shaft nut 1
2Washer 1
3 Pivot shaft 1
4 Swingarm 1
5 Rear fender 1
6 Drive chain guide 1
7 Bracket 1
8Dust cover 2
9Collar 1
10 Bearing 2
1
2
8
9
10
6
7
10
5
3
8
4
LS
LS
LS
LS
105 N
•
m (10.5 kgf
•
m, 77 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
