Yamaha MT-09SP 2021 - REAR SHOCK ABSORBER ASSEMBLY

4-78
REAR SHOCK ABSORBER ASSEMBLY
EAS20036
REAR SHOCK ABSORBER ASSEMBLY

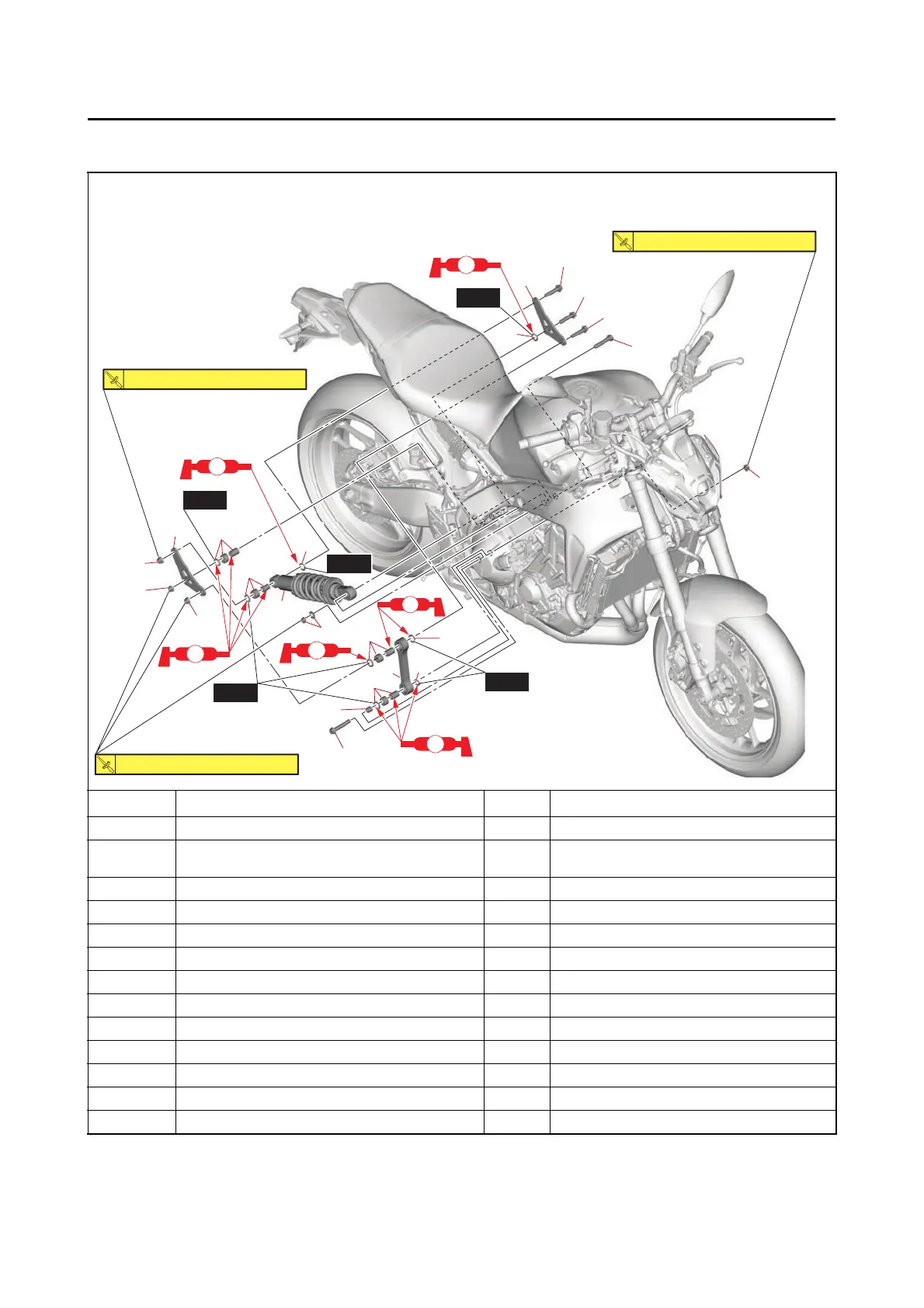

Removing the rear shock absorber assembly (for MTN890)
Order Job/Parts to remove Q’ty Remarks
1 Rear shock absorber assembly lower nut/Bolt 1/1
2
Rear shock absorber assembly upper nut/
Washer/Bolt
1/1/1
3 Rear shock absorber assembly 1
4 Relay arm nut/Bolt 1/1
5 Connecting arm upper nut/Bolt 1/1
6 Relay arm 2
7 Connecting arm lower nut/Bolt 1/1
8 Connecting arm 1
9 Collar/Oil seal/Bearing 1/2/1
10 Collar/Oil seal/Bearing 1/2/1
11 Collar/Oil seal/Bearing 1/2/1
12 Collar/Oil seal/Bearing 1/2/1
13 Collar 1
1
610
9
1
6
4
5
2
7
10
9
4
5
3
2
11
11
8
12
12
13
7
LS
LS
LS
LS
LS
LS
New
New
New
New
New
44 N
•
m (4.4 kgf
•
m, 32 lb
•
ft)
T
.R.
44 N
•
m (4.4 kgf
•
m, 32 lb
•
ft)
T
.R.
44 N
•
m (4.4 kgf
•
m, 32 lb
•
ft)
T
.R.
