ENGINE REMOVAL
EAS20042
ENGINE REMOVAL

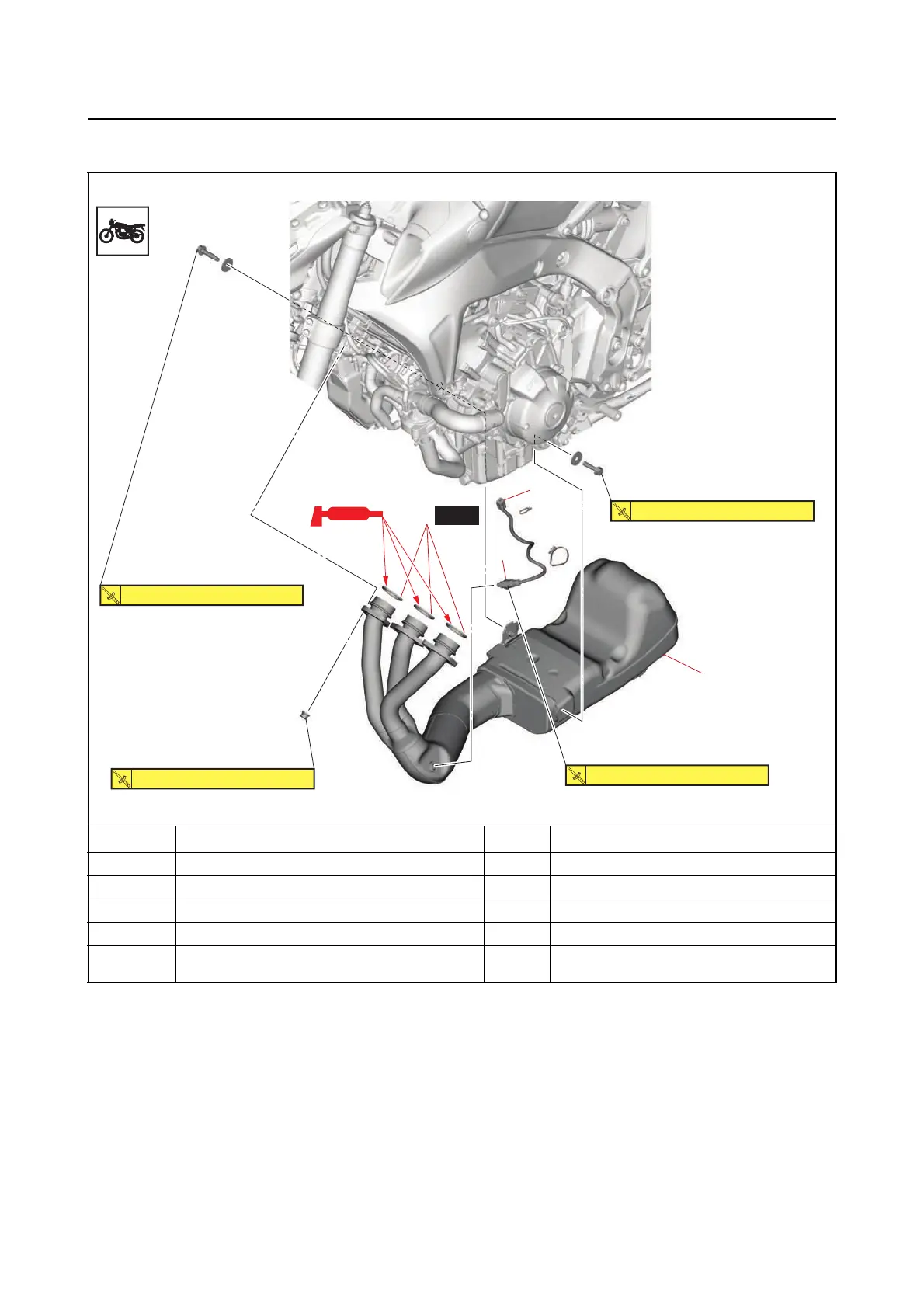

Removing the muffler and exhaust pipe
* YAMAHA GREASE “G”
Order Job/Parts to remove Q’ty Remarks
Radiator bracket Refer to “RADIATOR” on page 6-3.
1O
2
sensor coupler 1 Disconnect.
2 Muffler assembly 1
3 Exhaust gasket 3
4O
2
sensor 1
Remove the O
2
sensor only when neces-
sary.
3
1
4
2
(6)
New
20 N•m (2.0 kgf•m, 15 lb•ft)
20 N•m (2.0 kgf•m, 15 lb•ft)
20 N•m (2.0 kgf•m, 15 lb•ft)
*
25 N•m (2.5 kgf•m, 18 lb•ft)
