6-3
RADIATOR
EAS20063
RADIATOR

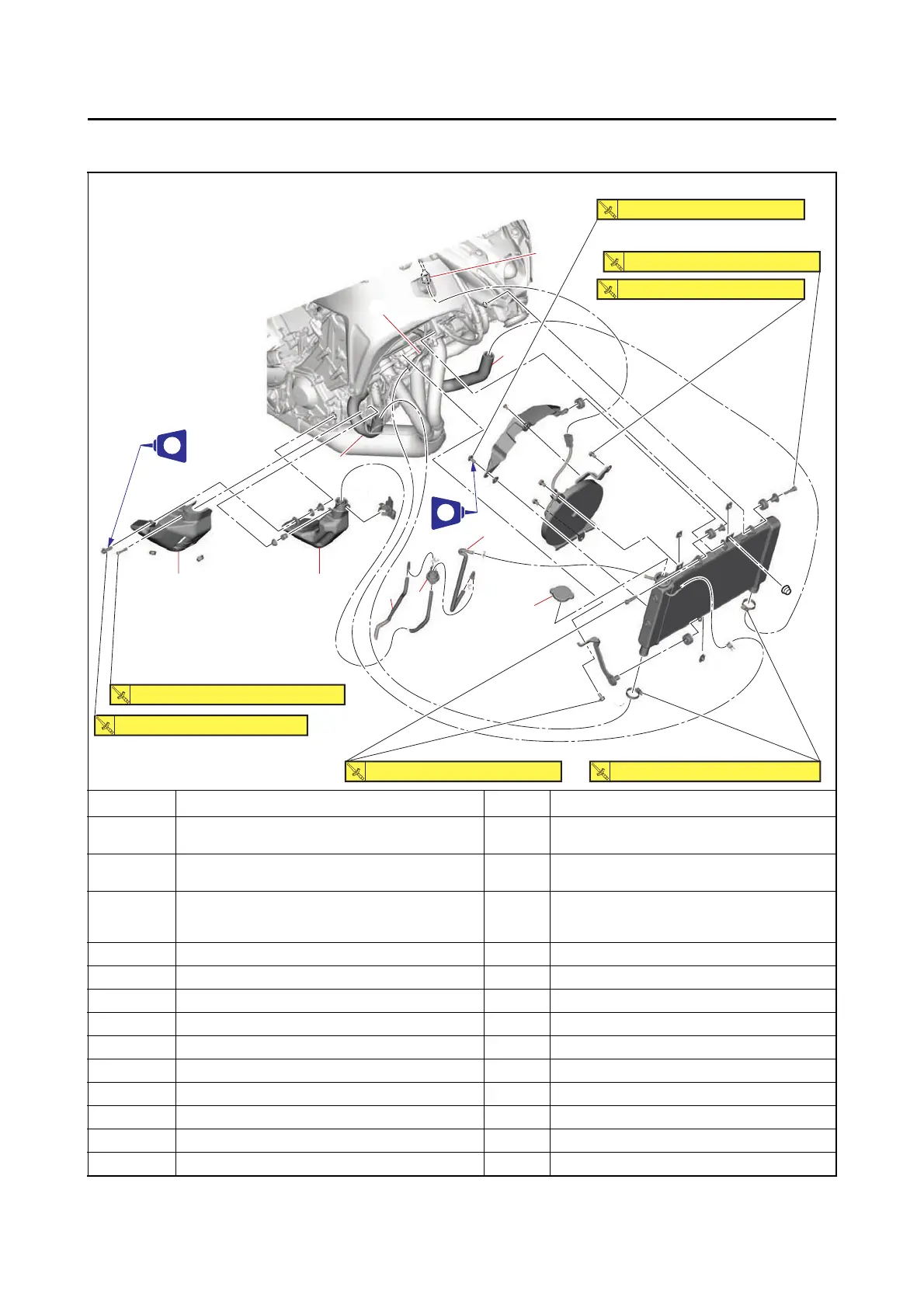

Removing the radiator
Order Job/Parts to remove Q’ty Remarks
Air filter case
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
Front side panel
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
1 Coolant reservoir hose 1 Disconnect.
2 Coolant reservoir cover 1
3 Coolant reservoir 1
4 Coolant reservoir cap 1
5 Coolant reservoir breather hose 1
6Radiator cap 1
7 Radiator fan motor coupler 1 Disconnect.
8 Radiator hose (cylinder head to radiator) 1 Disconnect.
9 Radiator inlet hose 1 Disconnect.
10 Radiator outlet hose 1 Disconnect.
2 3
4
1
6
5
10
7
9
8
LT
LT
9 N・m (0.9 kgf・m, 6.6 lb・ft)
0.5 N・m (0.05 kgf・m, 0.37 lb・ft)
2.0 N・m (0.20 kgf・m, 1.5 lb・ft)10 N・m (1.0 kgf・m, 7.4 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
To Next Page
