SHIFT SHAFT
EAS20057
SHIFT SHAFT

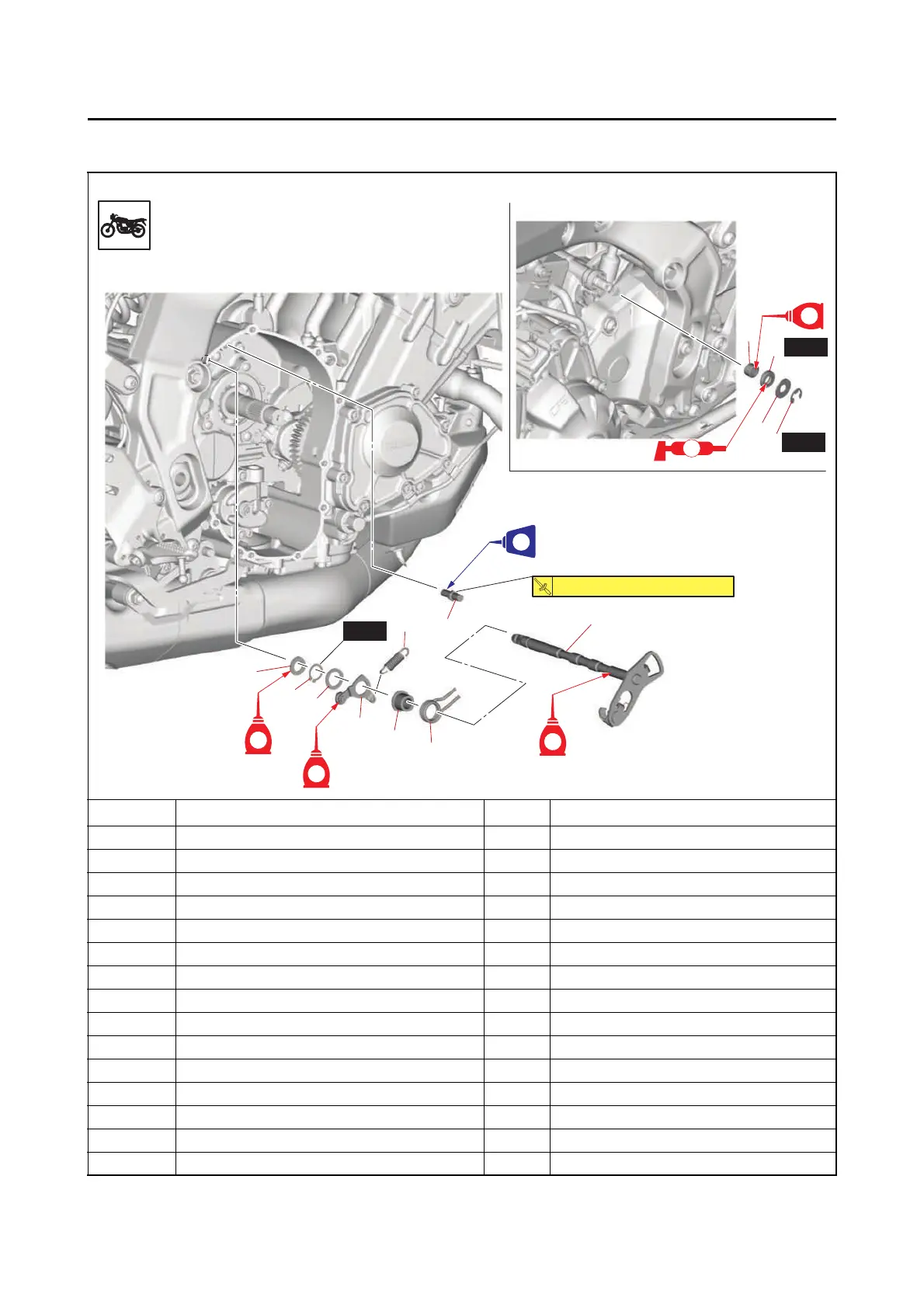

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Clutch assembly Refer to “CLUTCH” on page 5-45.
Shift arm Refer to “CHAIN DRIVE” on page 4-86.
1 Circlip 1
2Washer 1
3 Shift shaft 1
4Washer 1
5 Circlip 1
6Washer 1
7 Stopper lever 1
8 Stopper lever spring 1
9Collar 1
10 Shift shaft spring 1
11 Shift shaft spring stopper 1
12 Oil seal 1
13 Bearing 1
11
8
3
12
1
2
13
10
9
7
6
4
5
E
E
New
New
New
LT
LT
E
E
LS
22 N
•
m (2.2 kgf
•
m, 16 lb
•
ft)
T.R.
