Yamaha MT-09SP 2021 - Page 152

4-19

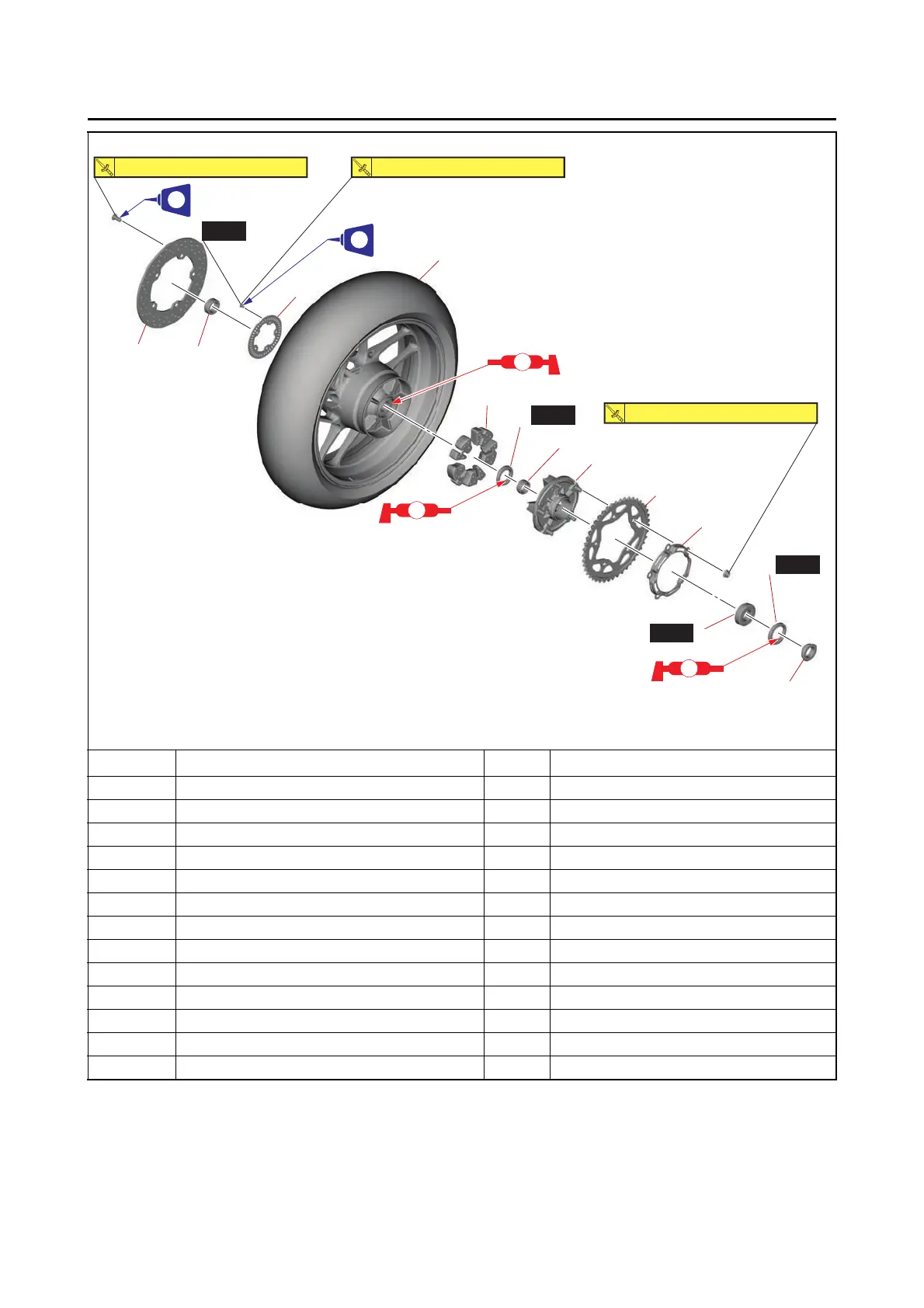

REAR WHEEL
Removing the brake disc and rear wheel sprocket
Order Job/Parts to remove Q’ty Remarks
1 Rear wheel sensor rotor 1
2 Rear brake disc 1
3 Bracket 1
4 Rear wheel sprocket 1
5Collar 1
6Collar 1
7 Oil seal 1
8 Bearing 1
9 Rear wheel drive hub 1
10 Collar 1
11 Oil seal 1
12 Rear wheel drive hub damper 5
13 Rear wheel 1
LT
LT
New
LS
LS
LS
1
12
11
10
9
4
3
8
7
5
6
2
(5)
(5)
(5)
New
New
New
13
30 N・m (3.0 kgf・m, 22 lb・ft)
80 N・m (8.0 kgf・m, 59 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
