ABS (ANTI-LOCK BRAKE SYSTEM)

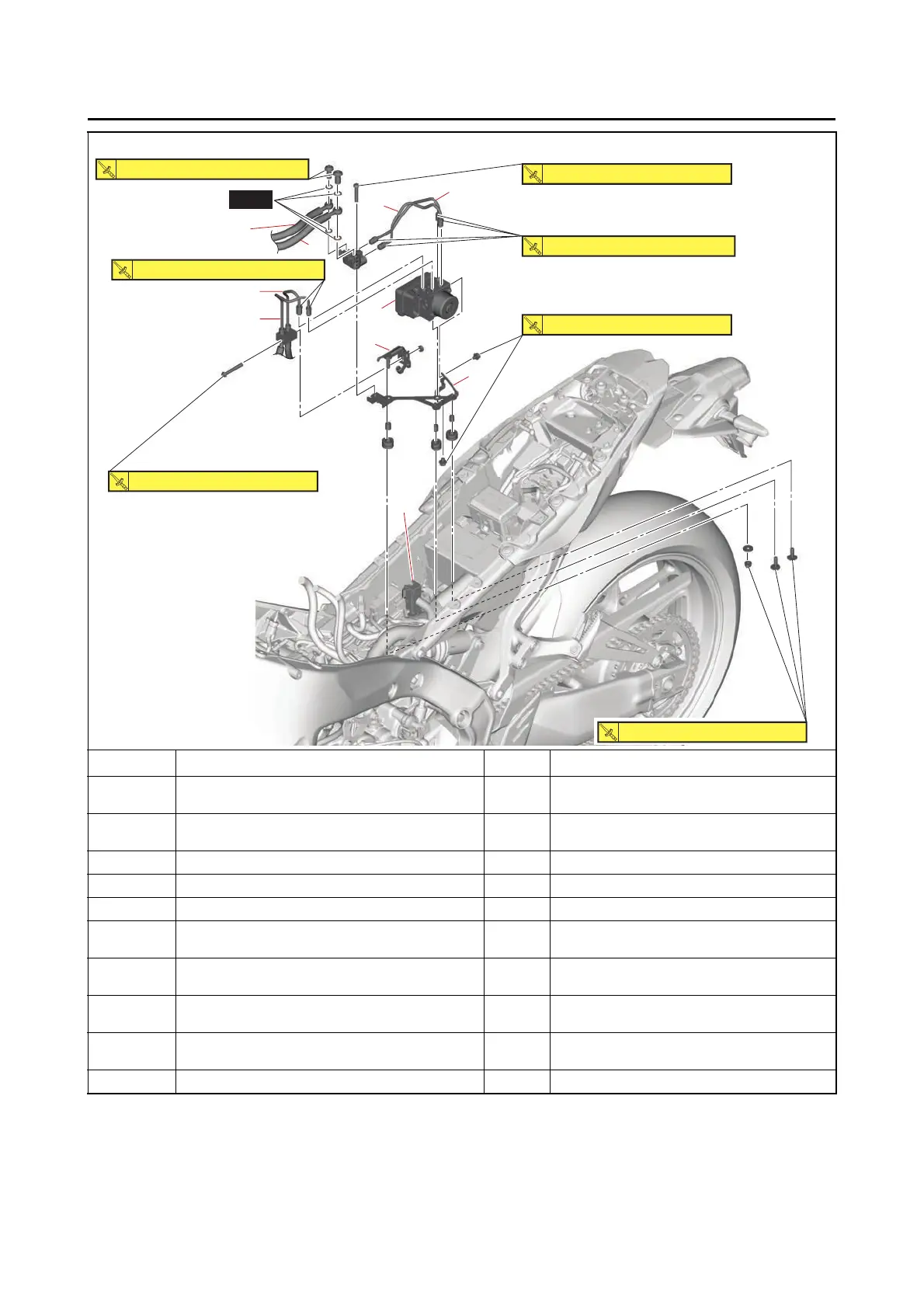

Removing the hydraulic unit assembly
Order Job/Parts to remove Q’ty Remarks
3
Brake hose (hydraulic unit to front brake cali-
pers)
1 Disconnect.
4
Brake hose (front brake master cylinder to
hydraulic unit)
1 Disconnect.
5 Bracket 1
6 Hydraulic unit bracket 1
7 ABS ECU coupler 1 Disconnect.
8
Hydraulic unit brake pipe (rear brake master cyl-
inder to hydraulic unit)
1 Disconnect.
9
Hydraulic unit brake pipe (hydraulic unit to rear
brake caliper)
1 Disconnect.
10
Hydraulic unit brake pipe (hydraulic unit to front
brake calipers)
1
11
Hydraulic unit brake pipe (front brake master
cylinder to hydraulic unit)
1
12 Hydraulic unit assembly 1
16 N・m (1.6 kgf・m, 12 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
7
3
4
New
9
12
11
10
5
6
8
