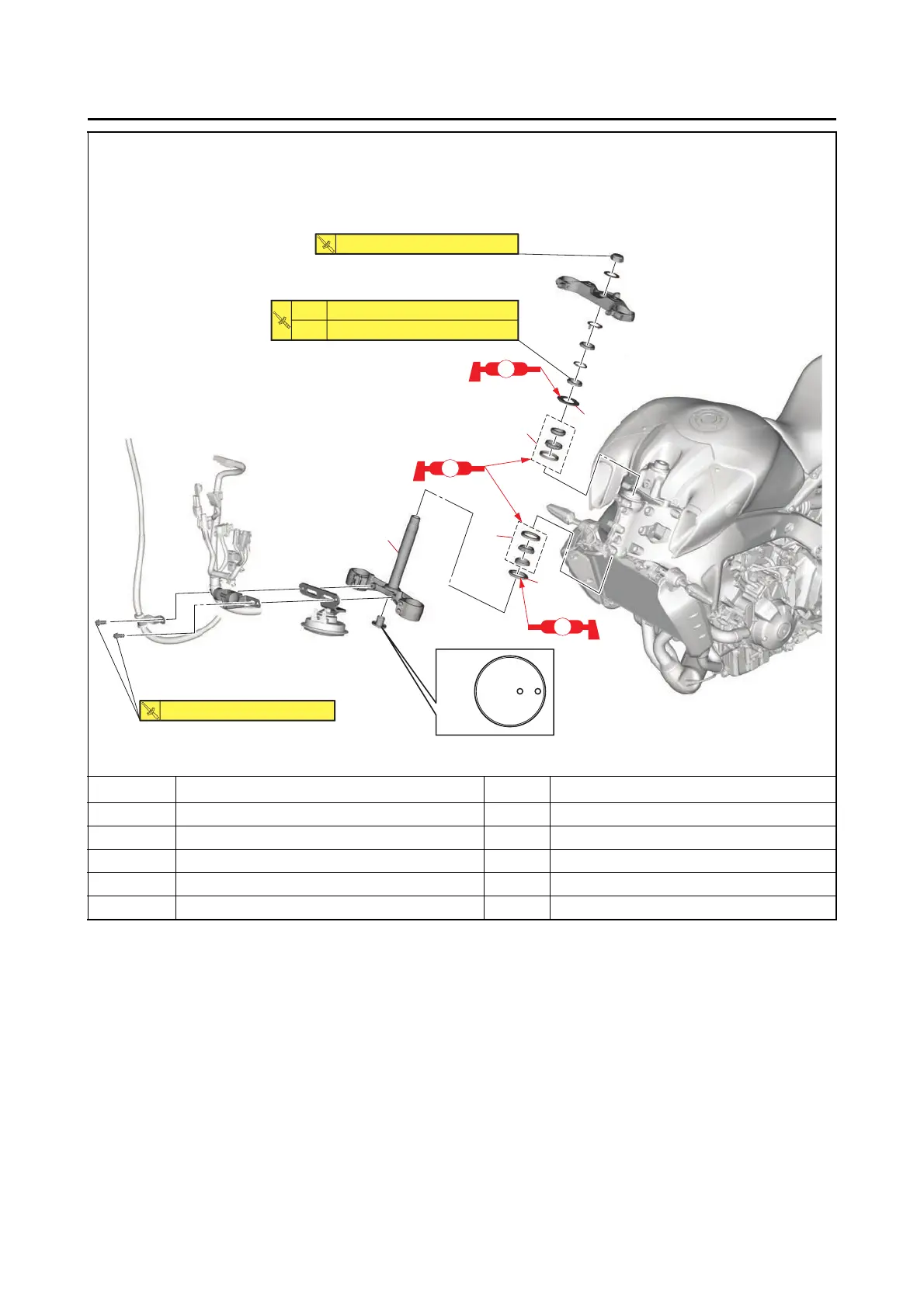

STEERING HEAD
Removing the lower bracket
* Loosen the lower ring nut completely, and then tighten it to specification.
Order Job/Parts to remove Q’ty Remarks
11 Lower bracket 1
12 Bearing cover 1
13 Lower bearing dust seal 1
14 Upper bearing 1
15 Lower bearing 1
110 N
•
m (11 kgf
•
m, 81 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
1st
*2nd
52 N・m (5.2 kgf・m, 38 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
11
13
14
12
15
FWD
LS
LS
LS
