ENGINE REMOVAL

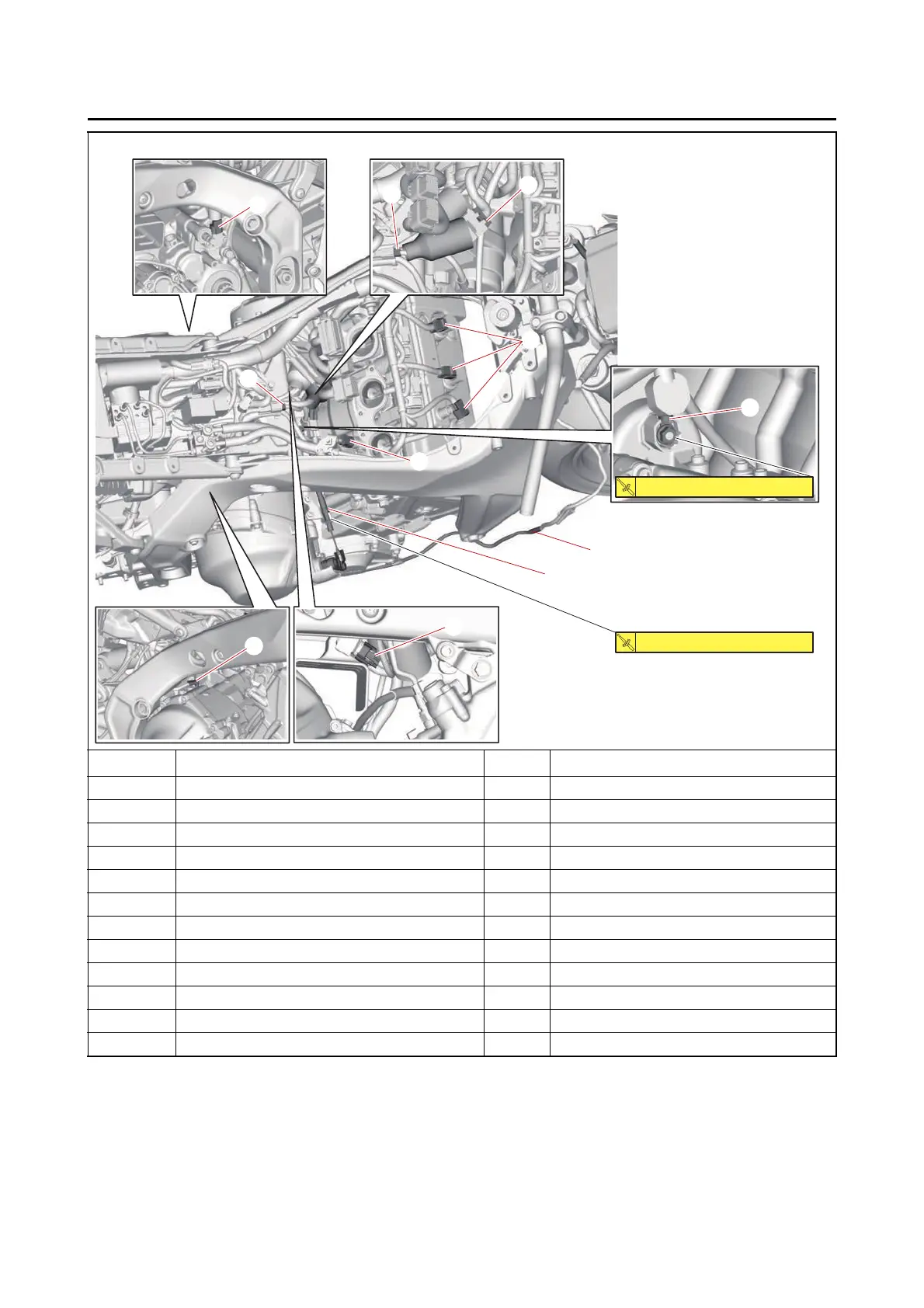

Disconnecting the leads and hoses
Order Job/Parts to remove Q’ty Remarks
Footrest assembly (right) Refer to “REAR BRAKE” on page 4-37.
Shift rod/Drive sprocket Refer to “CHAIN DRIVE” on page 4-86.
1 Clutch cable 1 Disconnect.
2 Starter motor lead 1 Disconnect.
3 Purge cut valve solenoid coupler 1 Disconnect.
4 Ignition coil coupler 3 Disconnect.
5 Coolant temperature sensor coupler 1 Disconnect.
6 Neutral switch coupler 1 Disconnect.
7 Gear position sensor coupler 1 Disconnect.
8 Crankshaft position sensor coupler 1 Disconnect.
9 Stator coil coupler 1 Disconnect.
10 Oil pressure switch connector 1 Disconnect.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
1
10
2
6
3
5
4
7
8
9
8
To Next Page
