VALVES AND VALVE SPRINGS
EAS20045
VALVES AND VALVE SPRINGS
Removing the valves and valve springs

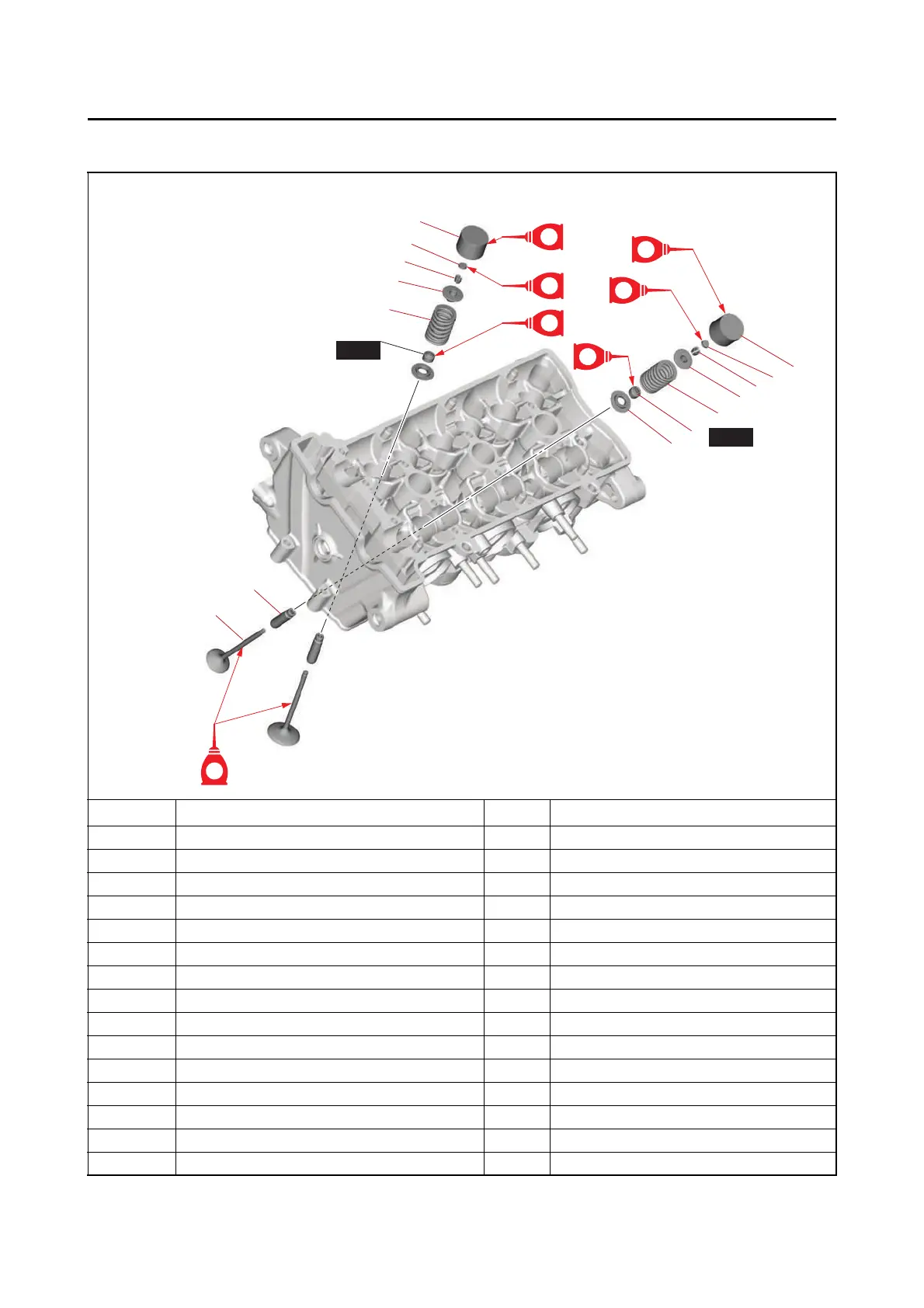

Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-26.
1 Intake valve lifter 6
2 Intake valve pad 6
3 Intake valve cotter 12
4 Intake valve spring retainer 6
5 Intake valve spring 6
6 Intake valve 6
7 Intake valve stem seal 6
8 Intake valve spring seat 6
9 Intake valve guide 6
10 Exhaust valve lifter 6
11 Exhaust valve pad 6
12 Exhaust valve cotter 12
13 Exhaust valve spring retainer 6
14 Exhaust valve spring 6
New
M
M
E
M
M
E
14
13
12
11
10
6
9
M
8
7
5
4
3
1
2
New
