Yamaha MT-09SP 2021 - Removing the Clutch

5-47
CLUTCH

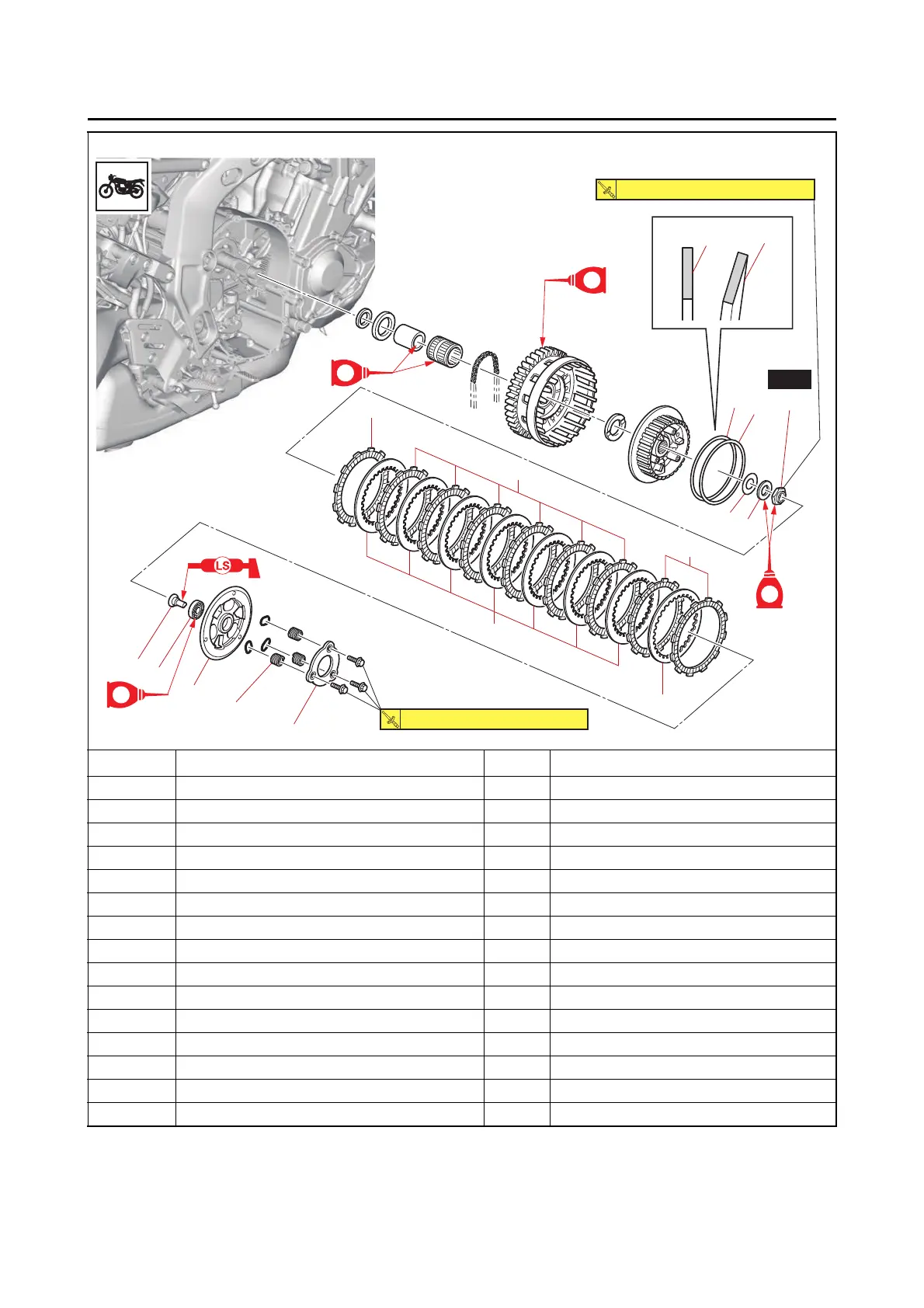

Removing the clutch
Order Job/Parts to remove Q’ty Remarks
Oil pump driven sprocket Refer to “OIL PUMP” on page 5-57.
1 Pressure plate 1 1
2 Clutch spring 3
3 Pressure plate 2 1
4 Pull rod 1
5 Bearing 1
6 Friction plate 2 3 Inside diameter: 126 mm (4.96 in)
7 Clutch plate 1 1 Inside diameter: 116 mm (4.57 in)
8 Clutch plate 2 7 Inside diameter: 105 mm (4.13 in)
9 Friction plate 1 6 Inside diameter: 119 mm (4.69 in)
10 Clutch damper spring 1
11 Clutch damper spring seat 1
12 Clutch boss nut 1
13 Conical spring washer 1
14 Washer 1
1
2
3
6
6
9
7
8
E
4
5
10
11
12
13
14
E
E
1011
E
New
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
125 N
•
m (12.5 kgf
•
m, 92 lb
•
ft)
