Yamaha MT-09SP 2021 - Connecting Rods and Pistons; Removing the Connecting Rods and Pistons

5-69
CONNECTING RODS AND PISTONS
EAS20132
CONNECTING RODS AND PISTONS

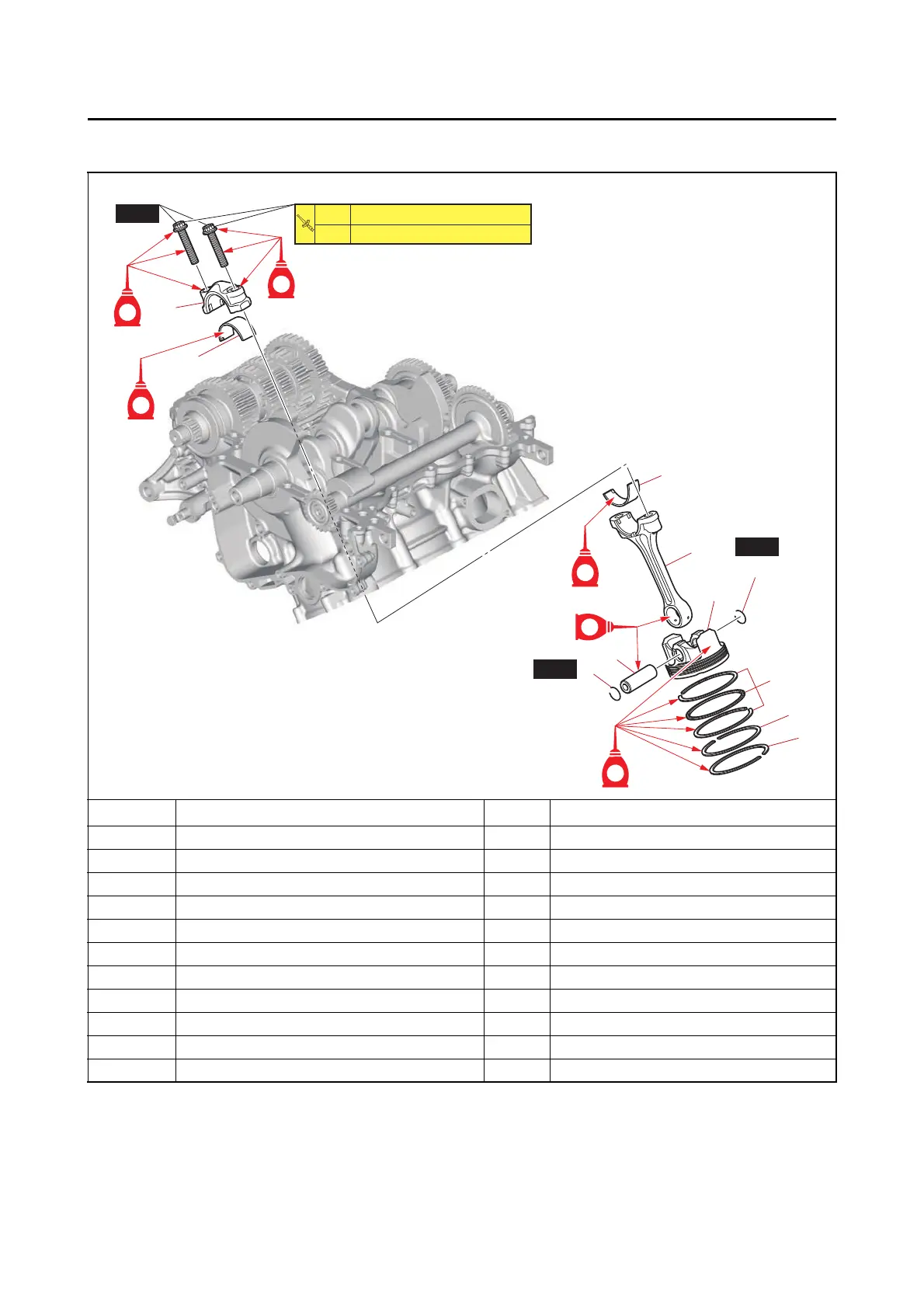

Removing the connecting rods and pistons
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to “CRANKCASE” on page 5-63.
1 Connecting rod cap 3
2 Big end lower bearing 3
3 Piston pin clip 6
4 Piston pin 3
5Piston 3
6 Connecting rod 3
7 Big end upper bearing 3
8Top ring 3
9 2nd ring 3
10 Oil ring 3
E
1
2
3
4
6
7
8
9
10
M
M
E
E
3
E
5
New
New
New
1st
2nd
20 N
•
m (2.0 kgf
•
m, 15 lb
•
ft)
Specified angle
180˚
