Yamaha MT-09SP 2021 - Page 335

6-12
WATER PUMP

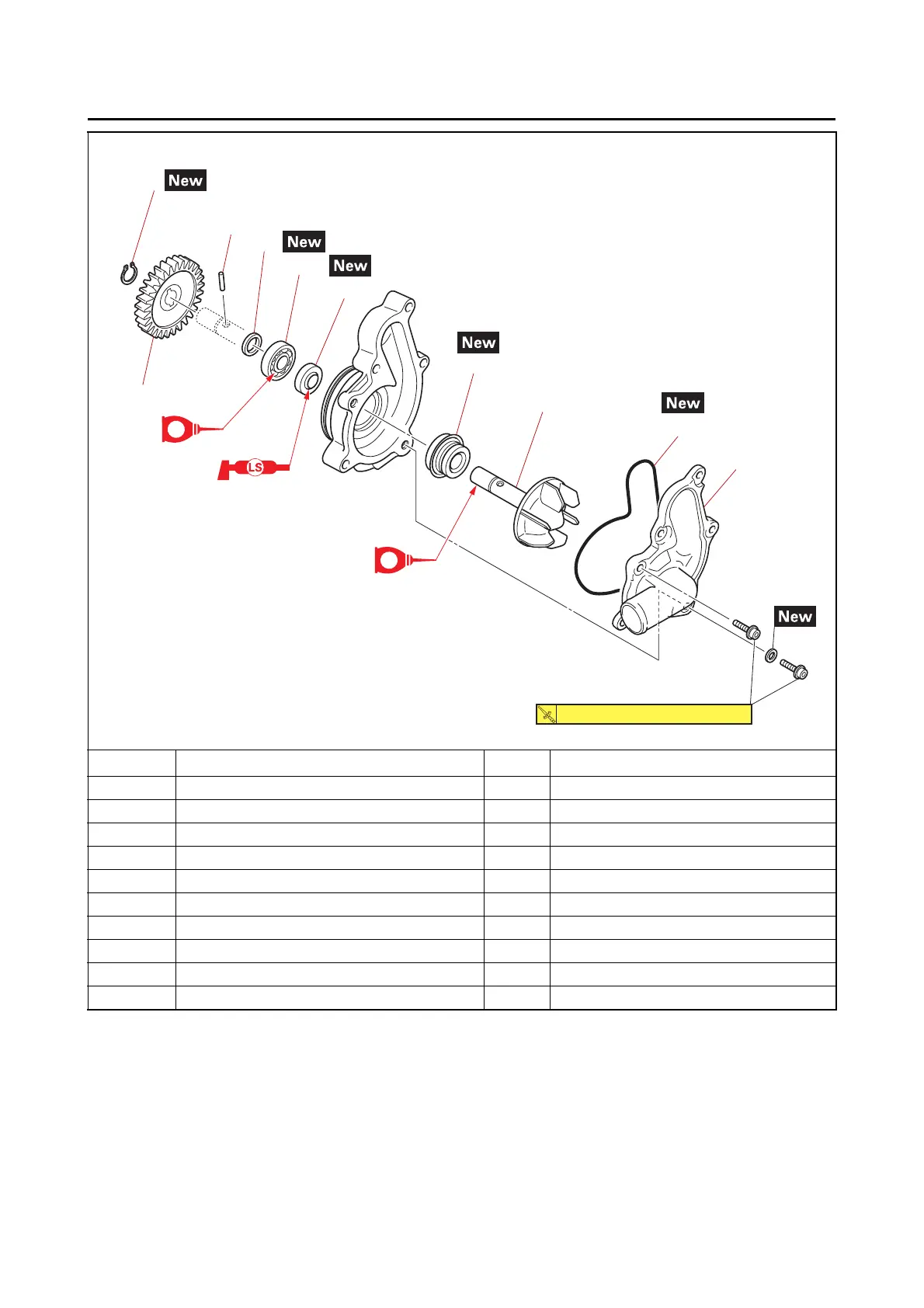

Disassembling the water pump
Order Job/Parts to remove Q’ty Remarks
1 Water pump housing cover 1
2 O-ring 1
3 Circlip 1
4 Water pump driven gear 1
5Pin 1
6Washer 1
7 Impeller shaft 1
8 Mechanical seal 1
9 Bearing 1
10 Oil seal 1
E
E
1
2
3
4
5
6
7
8
9
10
10 N・m (1.0 kgf・m, 7.4 lb・ft)
