FUEL TANK

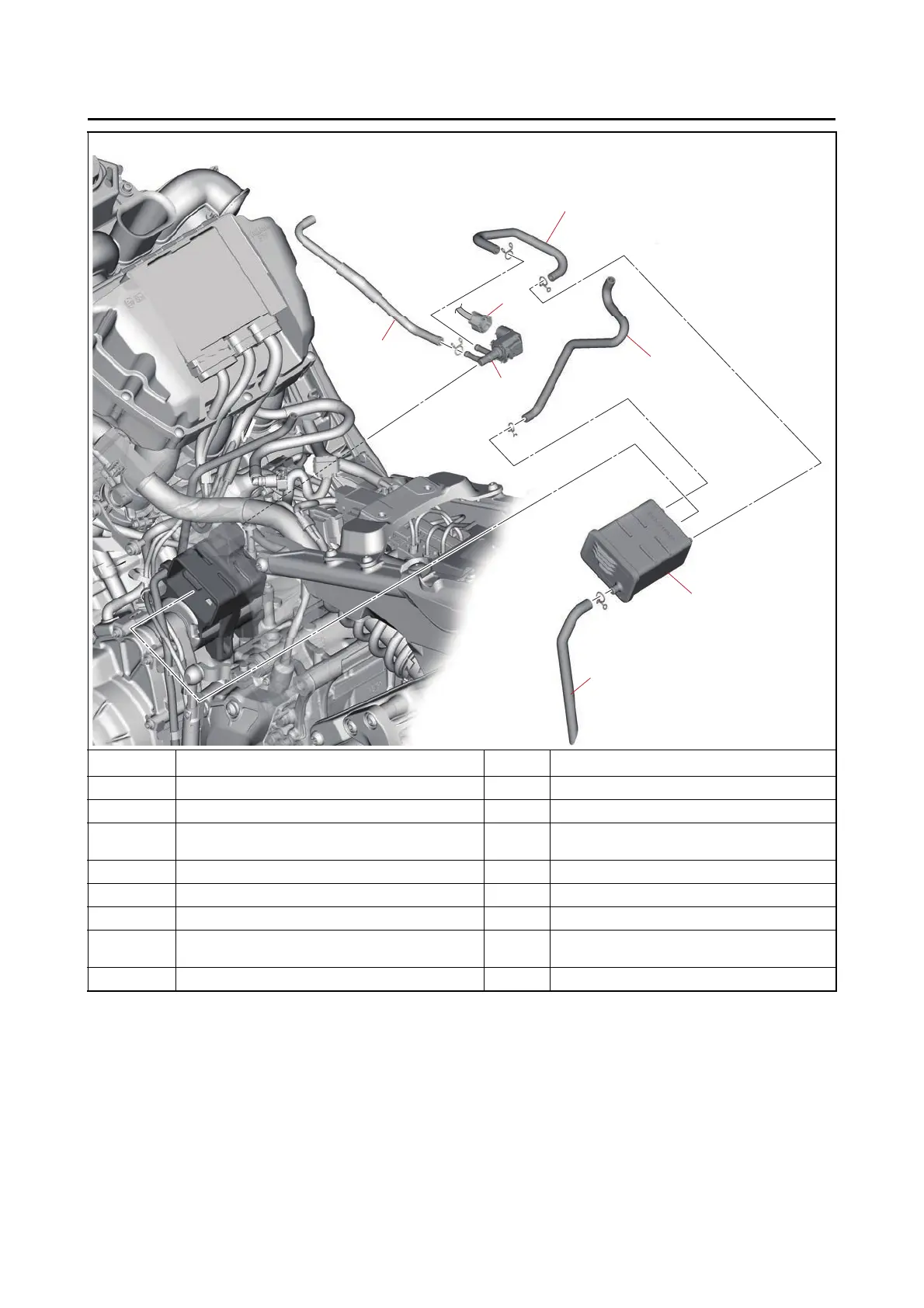

Removing the canister
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Fuel tank breather hose (fuel tank to canister) 1
2
Canister purge hose (purge cut valve solenoid
to canister)
1
3 Canister breather hose 1
4 Canister 1
5 Purge cut valve solenoid coupler 1 Disconnect.
6
Canister purge hose (purge cut valve solenoid
to hose joint)
1
7 Purge cut valve solenoid 1
3
4
1
7
2
5
6
