9-126
P0122, P0123, P0222, P0223, P2135
3. Wire harness continuity.
• Disconnect the throttle position sensor coupler “1” and ECU coupler “2”.
• Open circuit check
• Short circuit check
Is it in the “Recovered” condition?
YES
→ Go to step 8, and complete the service.
NO
→ Go to step 3.

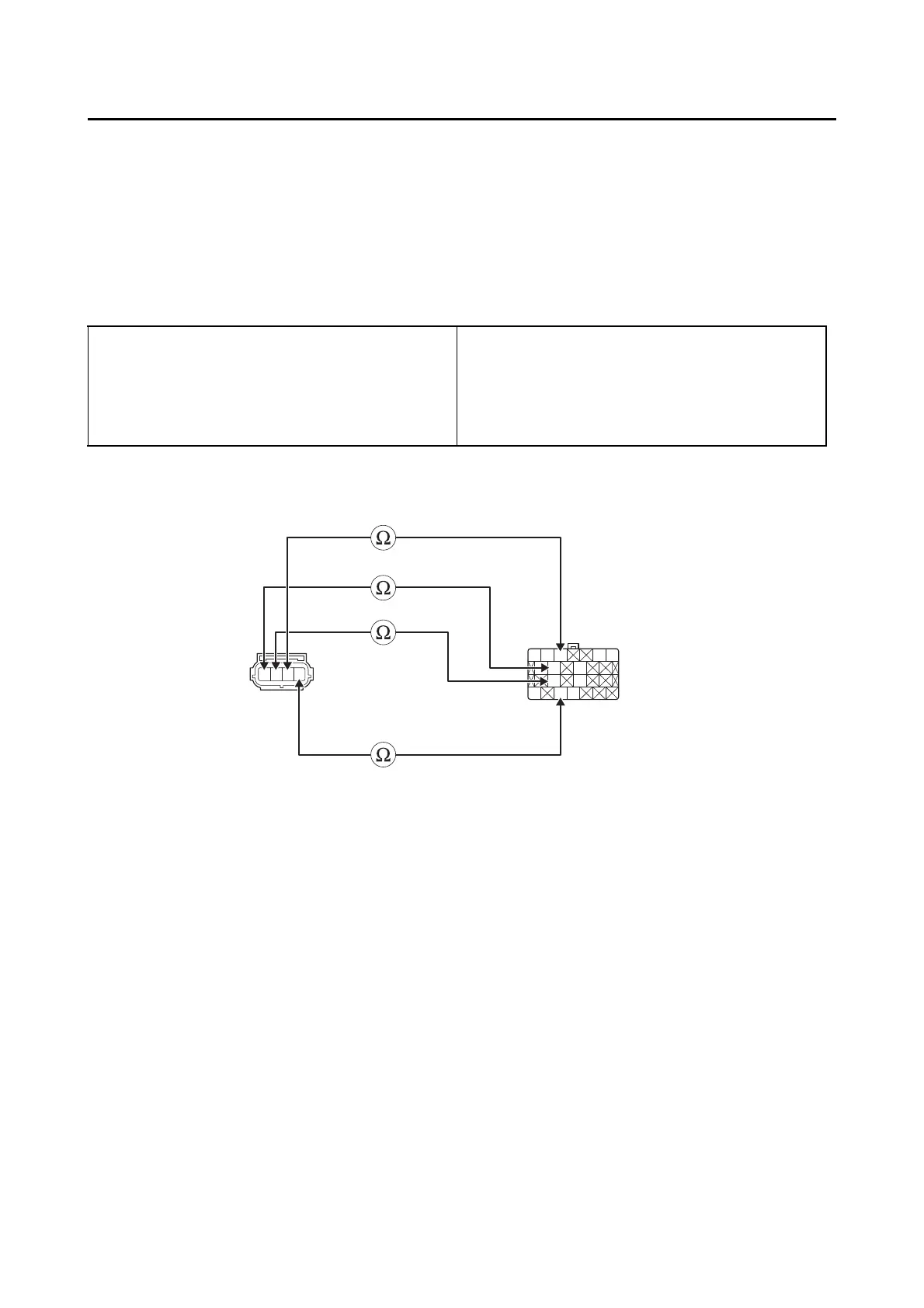

Between throttle position sensor coupler “1” and
ECU coupler “2”
[P0122, P0123, P0222, P0223, P2135] white–
white
[P0123, P0223] black/blue–black/blue
[P0122, P0222] blue–blue
[P0122, P0123, P0222, P0223, P2135] black–
black
Is resistance 0 Ω?
YES
→ Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”, and then check the condition of the DTC using the malfunction
mode of the YDT.
Is it in the “Recovered” condition?
YES
→ Go to step 8, and complete the service.
NO
→ Go to “Short circuit check”.
R/WBr/Y
LG
W/R
Y/R
W
Y
Br
B/L
Y/B
B
W/B
WL
B/L
B
